AKK 80CH Diversity RX 4.9–5.8GHz FPV Video Receiver
An AKK diversity receiver with 80 channels across the 4.9–5.8 GHz band, dual SMA female antenna connectors and a 5 V power input. An integrated display and buzzer support your FPV receiving setup.
- Frequency band
- 4.9–5.8 GHz
- Channel count
- 80 channels
- Input voltage
- 5 V
- Antenna connector
- SMA female
A closer look at AKK 80CH Diversity RX

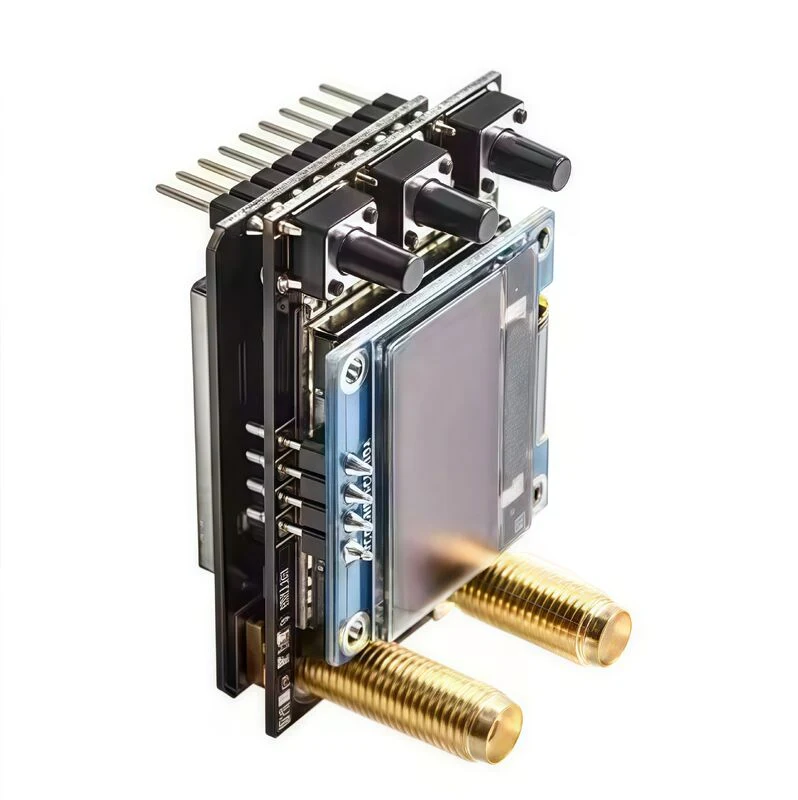

See the display, dual antenna connectors and layered receiver boards from three angles.
Product photographs show the receiver hardware. Confirm the supplied accessories and connection requirements when enquiring.
AKK 80CH Diversity RX specifications
The key electrical specifications, together in one place.
| Product | AKK 80CH Diversity RX |
|---|---|
| Type | Diversity FPV video receiver |
| Frequency band | 4.9–5.8 GHz |
| Channel count | 80 channels |
| Input voltage | 5 V |
| Current consumption | 380–400 mA at 5 V |
| Antenna connector | SMA female |
| Buzzer | Built-in |
Match the exact channel frequency with your transmitter; channel numbering can differ between devices.
Connection reference

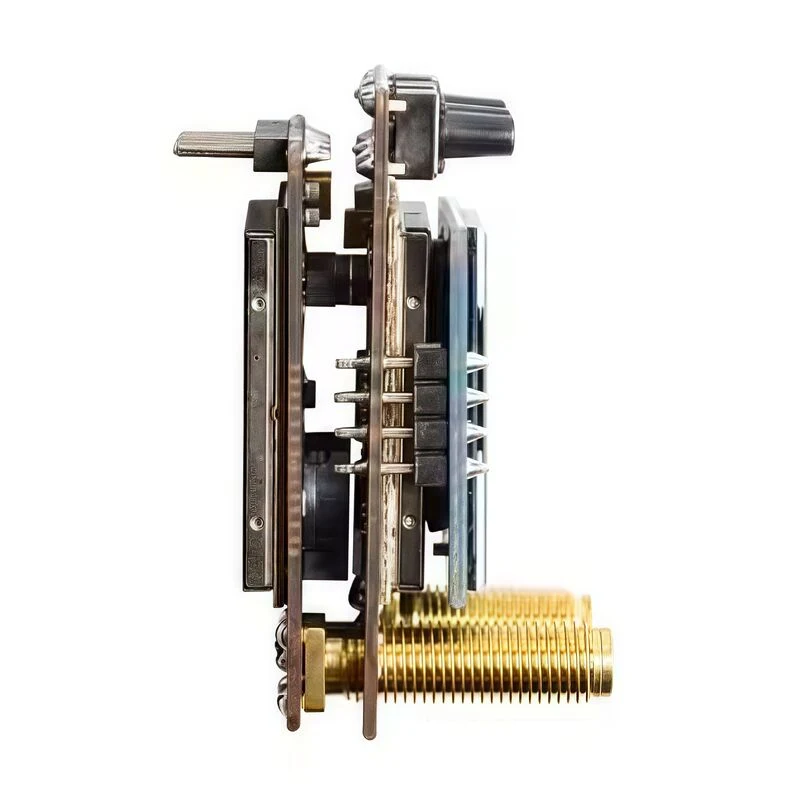

Review the display, board spacing and accessible connectors when planning your receiver installation.
Before connecting
Confirm the pin assignments and polarity before wiring. The photograph shows the interfaces; it is not an electrical pinout.
Antenna connection reference
Two SMA female antenna connectors are visible on the receiver. Match your antennas to the selected 4.9–5.8 GHz operating frequency.
Confirm the antenna and accessory supply scope for your order.
| Receiver RF connectors | 2 × SMA female |
|---|---|
| Receiver operating band | 4.9–5.8 GHz |
Connection and selection
- Match the operating frequency
- Choose an antenna that covers the exact frequency selected on your receiver and transmitter.
- Check connector compatibility
- Check the connector type and centre contact before connecting the antenna or an adapter.
Check your setup before ordering.
Check channel compatibility, 5 V power and connector clearance before integrating this diversity receiver.
Pair by frequency
Select the same frequency on the receiver and transmitter. Check compatibility across the 80-channel range.
Use a 5 V supply
Provide the specified 5 V input and allow for 380–400 mA receiver consumption. Verify polarity before connecting power.
Check installation clearance
Leave space for the display, board stack and both antenna connectors. Confirm the pin assignments for your installation.
Enquire about AKK 80CH Diversity RX.
Tell us your quantity and setup requirements. We will confirm pricing and delivery options.
