KP-R12G FPV Video Receiver
KP-R12G analog video receiver with 9 channels in the 1.2 GHz band, a 7–36 V DC input and an SMA antenna connector.
- Frequency band
- 1.2 GHz
- Channel count
- 9 channels
- Input voltage
- 7–36 V
A closer look at KP-R12G 1.2GHz VRX
Views include: Receiver board and connectors; Accessory configuration reference.
Accessories shown are a configuration reference. Confirm the supplied receiver, antenna and cables when enquiring.
KP-R12G 1.2GHz VRX specifications
The key electrical specifications, together in one place.
| Product | KP-R12G 1.2GHz VRX |
|---|---|
| Type | Analog video receiver |
| Frequency band | 1.2 GHz |
| Channel count | 9 channels |
| Input voltage | 7–36 V |
| Antenna connector | SMA |
| Dimensions | 44 × 27 × 27 mm |
| Weight | 20 g |
Confirm the exact channel frequencies with your transmitter before ordering.
Connection reference
Review the visible interfaces before integrating this receiver.
Interface reference
Ask MASA for the pin assignments and operating instructions before wiring. This photograph identifies the interfaces; it is not an electrical pinout.

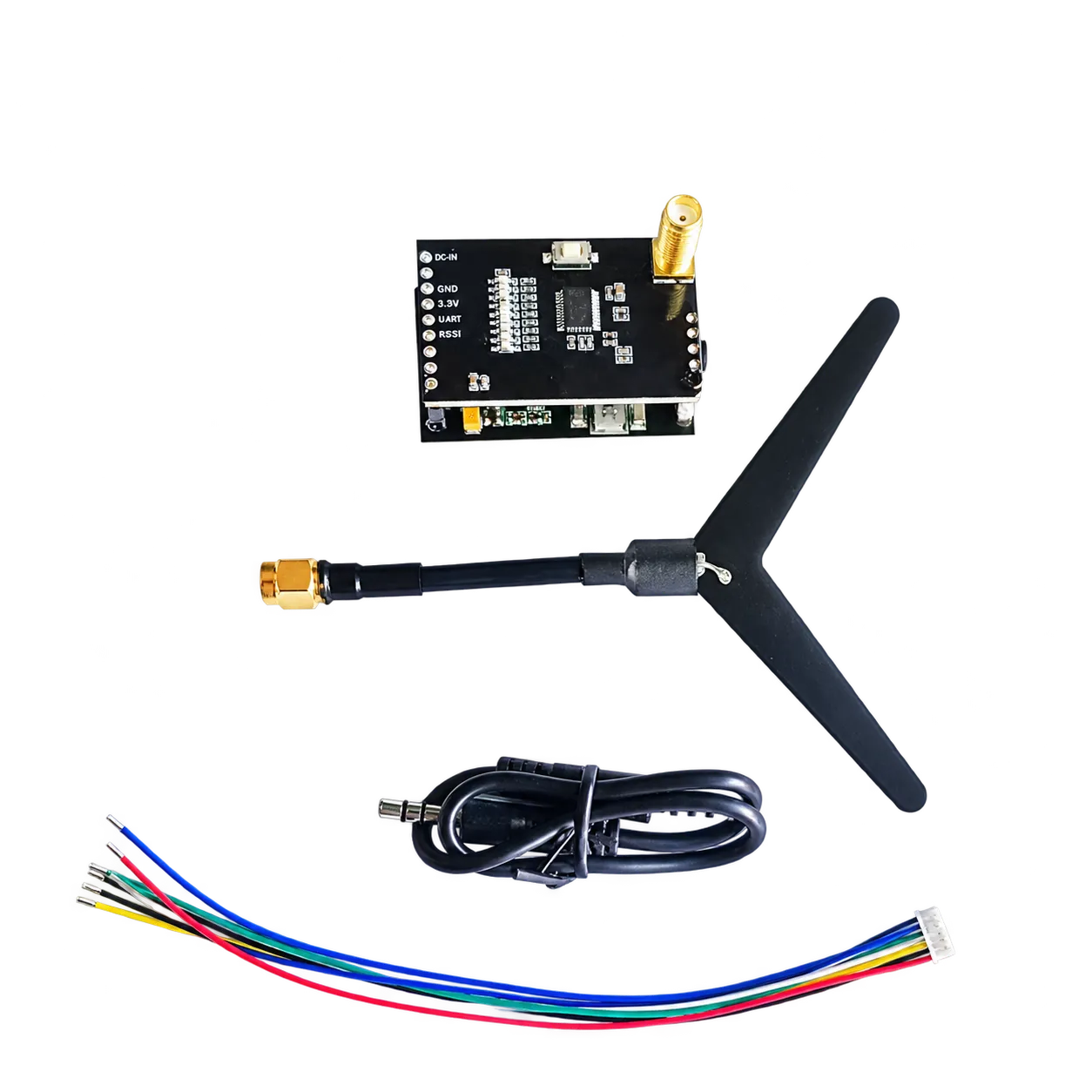

Antenna reference
The receiver reference shows the antenna connection and accessory configuration. Confirm the antenna frequency coverage for your system.
Confirm the antenna specifications and supply scope for your order.
| Receiver RF connector | SMA |
|---|---|
| Receiver operating band | 1.2 GHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the receiver, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Confirm the selected frequency on both the receiver and transmitter before pairing.
Power supply
Confirm the 7–36 V input specification and connection polarity.
Installation and connections
Check the antenna connector, cable connections and mounting space.
