PEAK R35 FPV Video Receiver
PEAK THOR R35 analog video receiver with 64 channels across 3000–4938 MHz, a 12 V input supply.
- Frequency range
- 3000–4938 MHz
- Channel count
- 64 channels
- Input voltage
- 12 V
A closer look at PEAK THOR R35

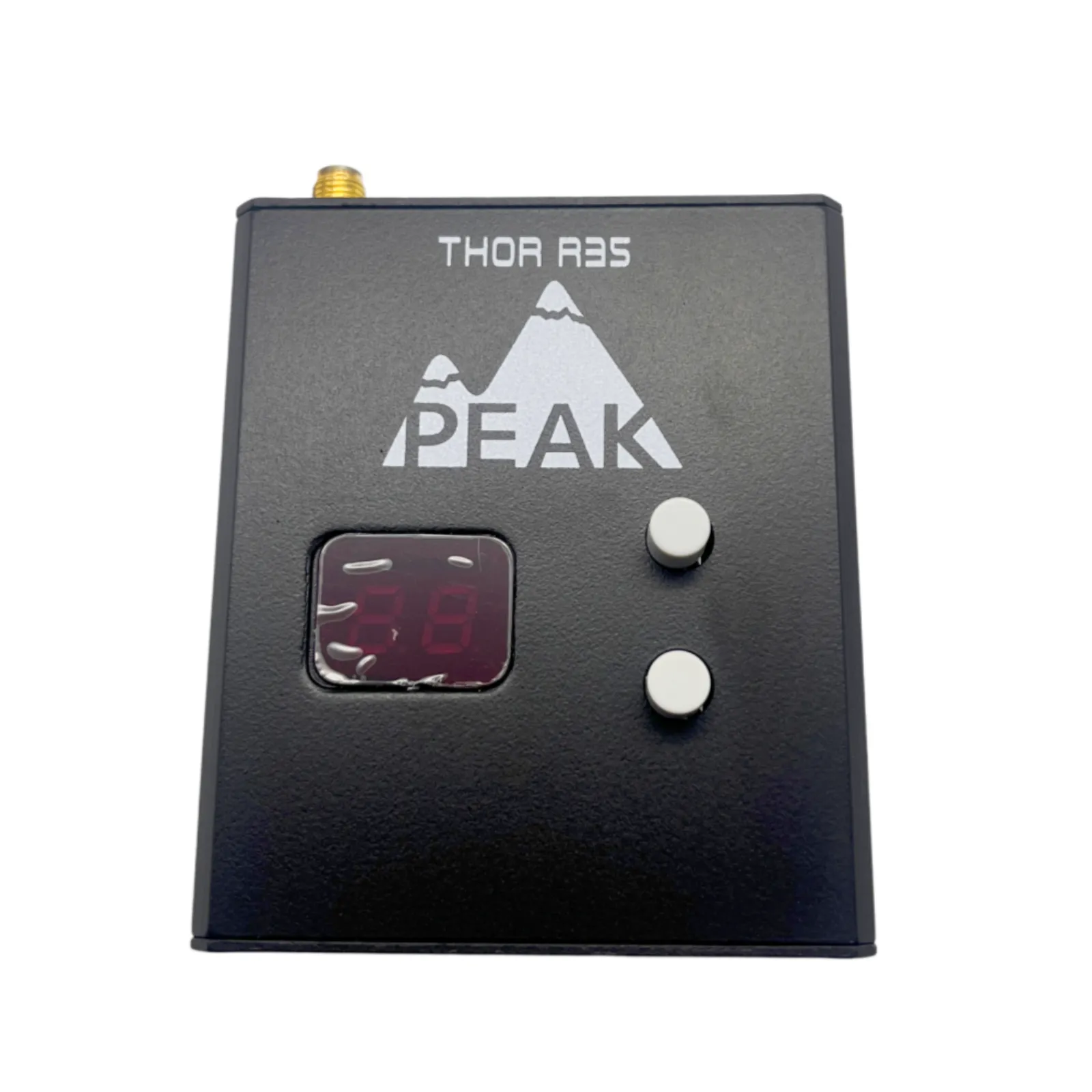

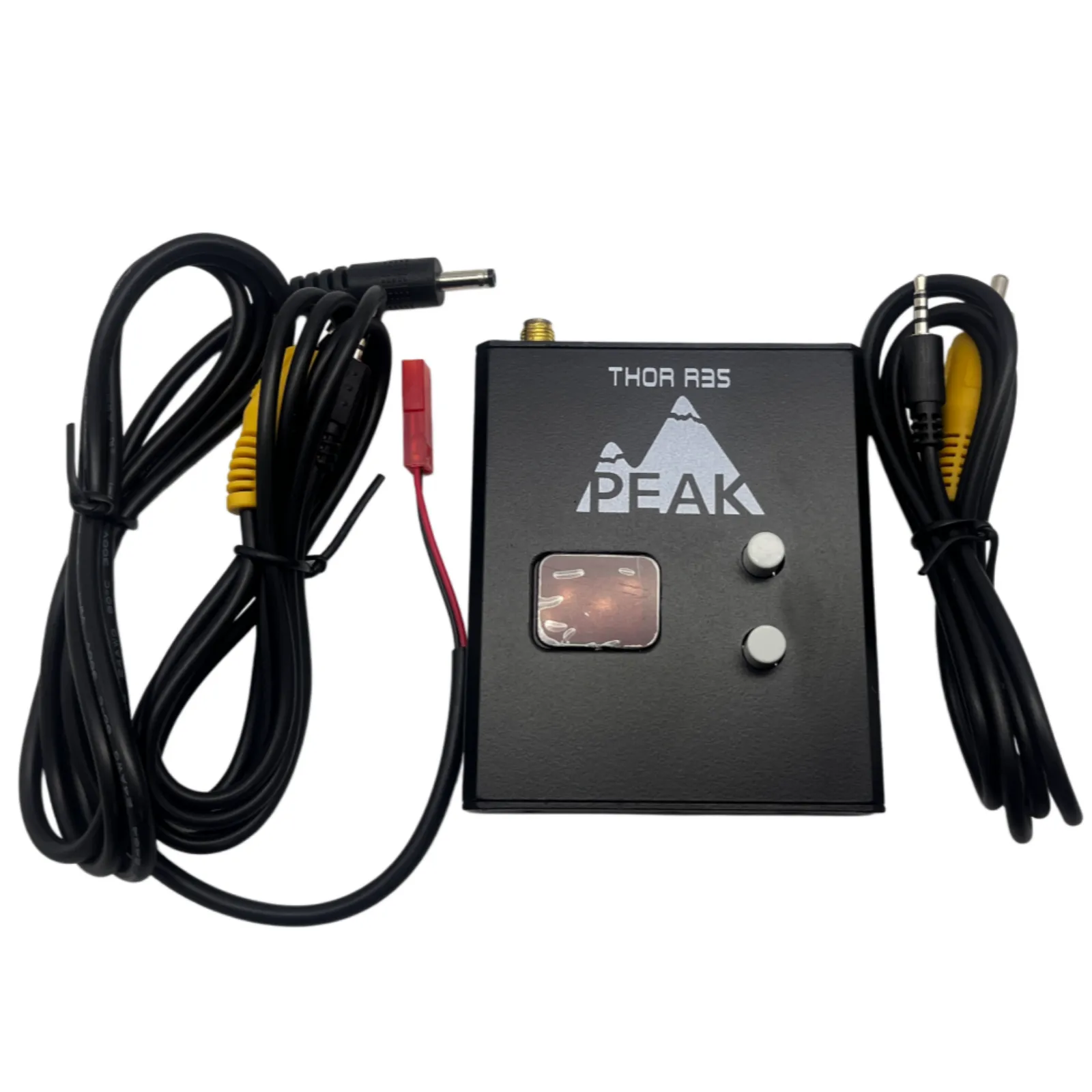

Views include: Product view 1; Product view 2; Product view 3; Product view 4.

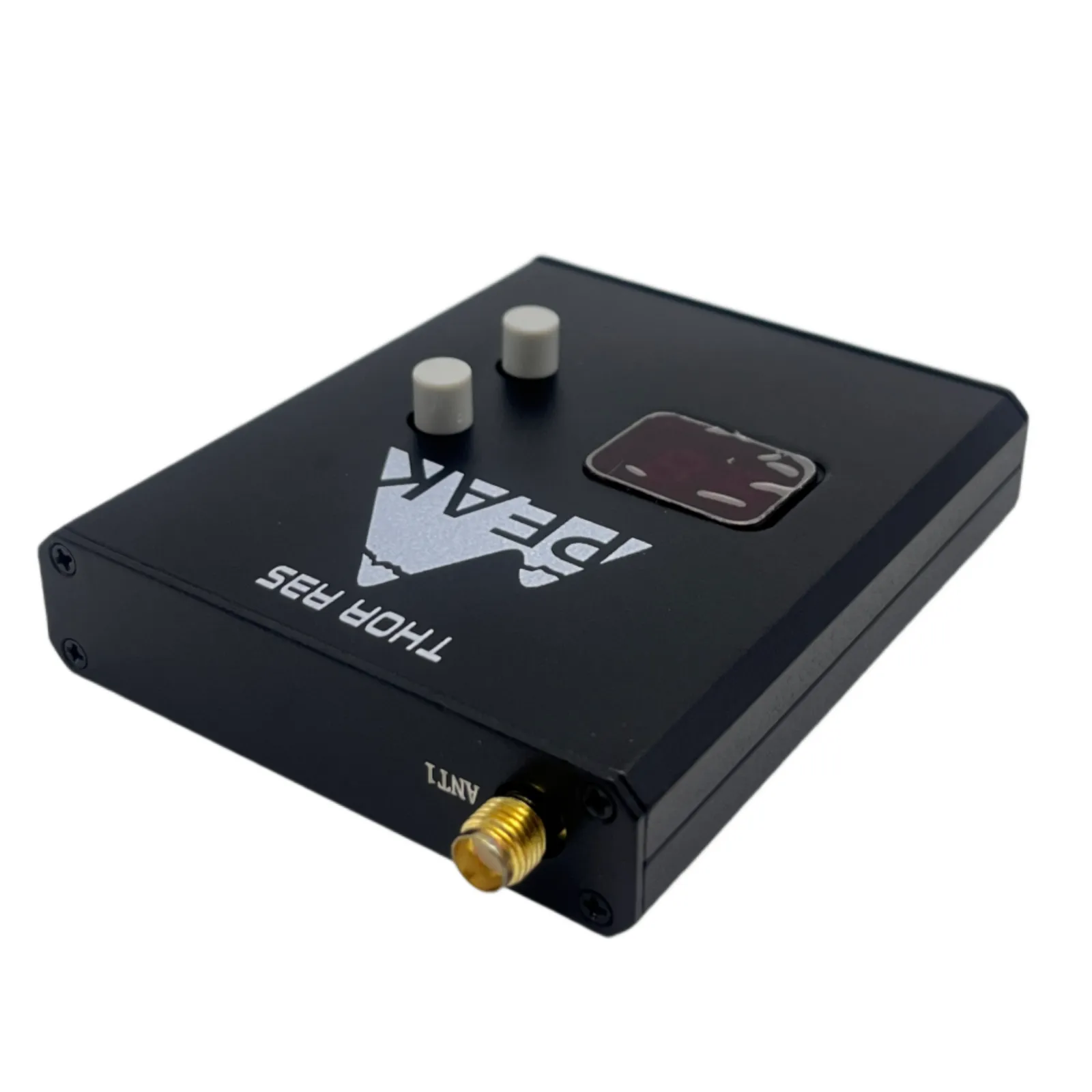

- SMA antenna and dual AV output
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
PEAK THOR R35 specifications
The key electrical specifications, together in one place.
| Product | PEAK THOR R35 |
|---|---|
| Type | Analog video receiver |
| Frequency range | 3000–4938 MHz |
| Channel count | 64 channels |
| Input voltage | 12 V |
| Antenna connector | SMA |
| Video output | Dual AV output |
| Dimensions | 68 × 78 × 15 mm |
| Weight (excluding antenna) | 69 g |
64-channel frequency table
Frequencies are in MHz. Match the exact frequency with your transmitter; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 3000 | 3030 | 3060 | 3090 | 3120 | 3150 | 3180 | 3210 |
| b | 3240 | 3270 | 3300 | 3330 | 3370 | 3400 | 3430 | 3470 |
| E | 3500 | 3530 | 3560 | 3590 | 3620 | 3650 | 3680 | 3710 |
| F | 3740 | 3770 | 3800 | 3830 | 3860 | 3890 | 3920 | 3950 |
| r | 3980 | 4010 | 4040 | 4070 | 4100 | 4130 | 4160 | 4190 |
| P | 4220 | 4250 | 4280 | 4310 | 4340 | 4370 | 4400 | 4430 |
| H | 4470 | 4500 | 4530 | 4560 | 4590 | 4620 | 4650 | 4680 |
| U | 4710 | 4740 | 4770 | 4812 | 4839 | 4872 | 4911 | 4938 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.
Connection reference
- DC 12V
- 12 V power input
- AV OUT1
- First analog video output
- AV OUT2
- Second analog video output

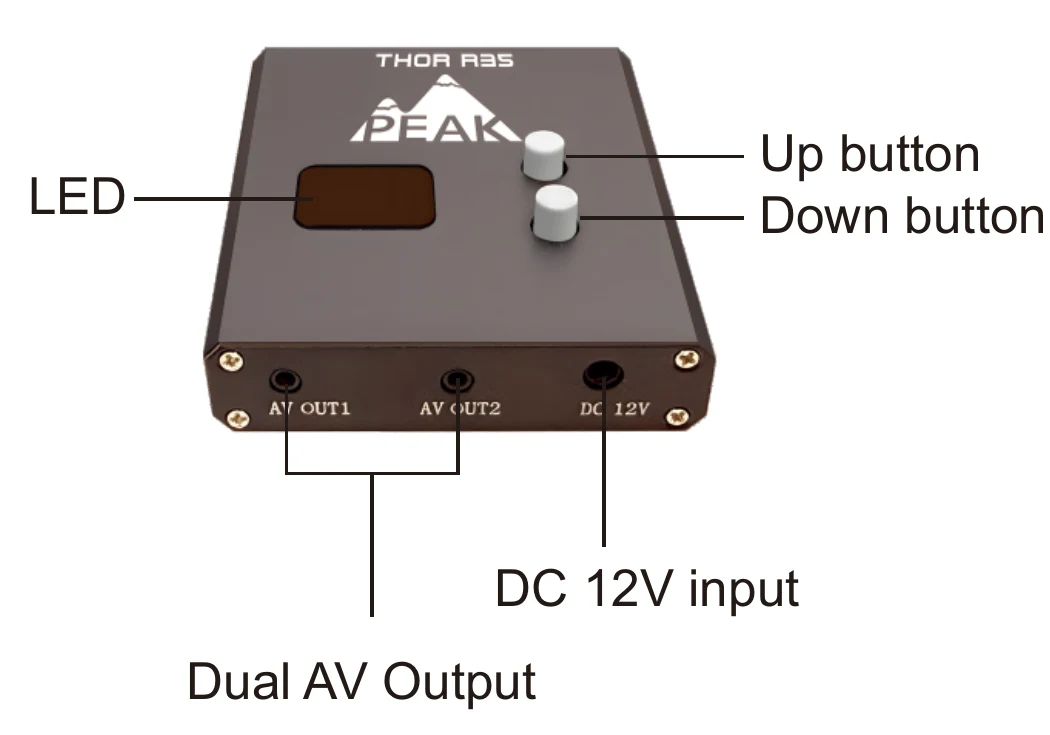

Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a band
Press the upper button to change the band.
Choose a channel
Press the lower button to change the channel.
Match the frequency
Check the displayed band and channel against the frequency table and set the transmitter to the same frequency.
Antenna connection reference
Use the receiver connection and operating band below to check antenna compatibility for your setup.
| Receiver RF connector | SMA |
|---|---|
| Receiver operating range | 3000–4938 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the receiver, not an antenna bandwidth specification.
Confirm the antenna model, connector and included accessories for your order.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your transmitter before pairing.
Power supply
Confirm the 12 V input specification and connection polarity.
Installation and connections
Allow space for the 68 × 78 × 15 mm receiver housing. Check the SMA antenna and dual AV output connections.
Enquire about PEAK THOR R35.
Tell us your quantity and setup requirements. We will confirm pricing and delivery options.
