PEAK R89 FPV Video Receiver
PEAK THOR R89 analog video receiver with 40 channels across 8020–8800 MHz, a 12 V input supply.
- Frequency range
- 8020–8800 MHz
- Channel count
- 40 channels
- Input voltage
- 12 V
A closer look at PEAK THOR R89

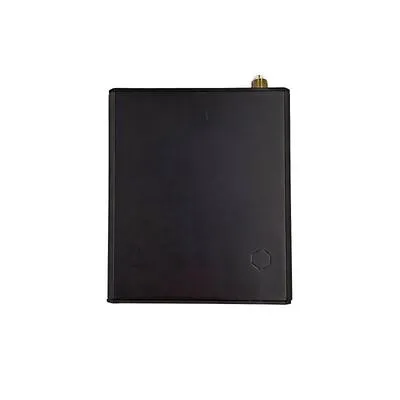

Views include: Front display and buttons; Rear housing and antenna connection.
- SMA antenna connection
- Dual AV output
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
PEAK THOR R89 specifications
The key electrical specifications, together in one place.
| Product | PEAK THOR R89 |
|---|---|
| Type | Analog video receiver |
| Frequency range | 8020–8800 MHz |
| Channel count | 40 channels |
| Input voltage | 12 V |
| Antenna connector | SMA |
| Video outputs | Dual AV output |
| Dimensions | 68 × 78 × 15 mm |
| Weight (excluding antenna) | 69 g |
40-channel frequency table
Frequencies are in MHz. Match the exact frequency with your transmitter; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 8020 | 8040 | 8060 | 8080 | 8100 | 8120 | 8140 | 8160 |
| b | 8180 | 8200 | 8220 | 8240 | 8260 | 8280 | 8300 | 8320 |
| E | 8340 | 8360 | 8380 | 8400 | 8420 | 8440 | 8460 | 8480 |
| F | 8500 | 8520 | 8540 | 8560 | 8580 | 8600 | 8620 | 8640 |
| r | 8660 | 8680 | 8700 | 8720 | 8740 | 8760 | 8780 | 8800 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

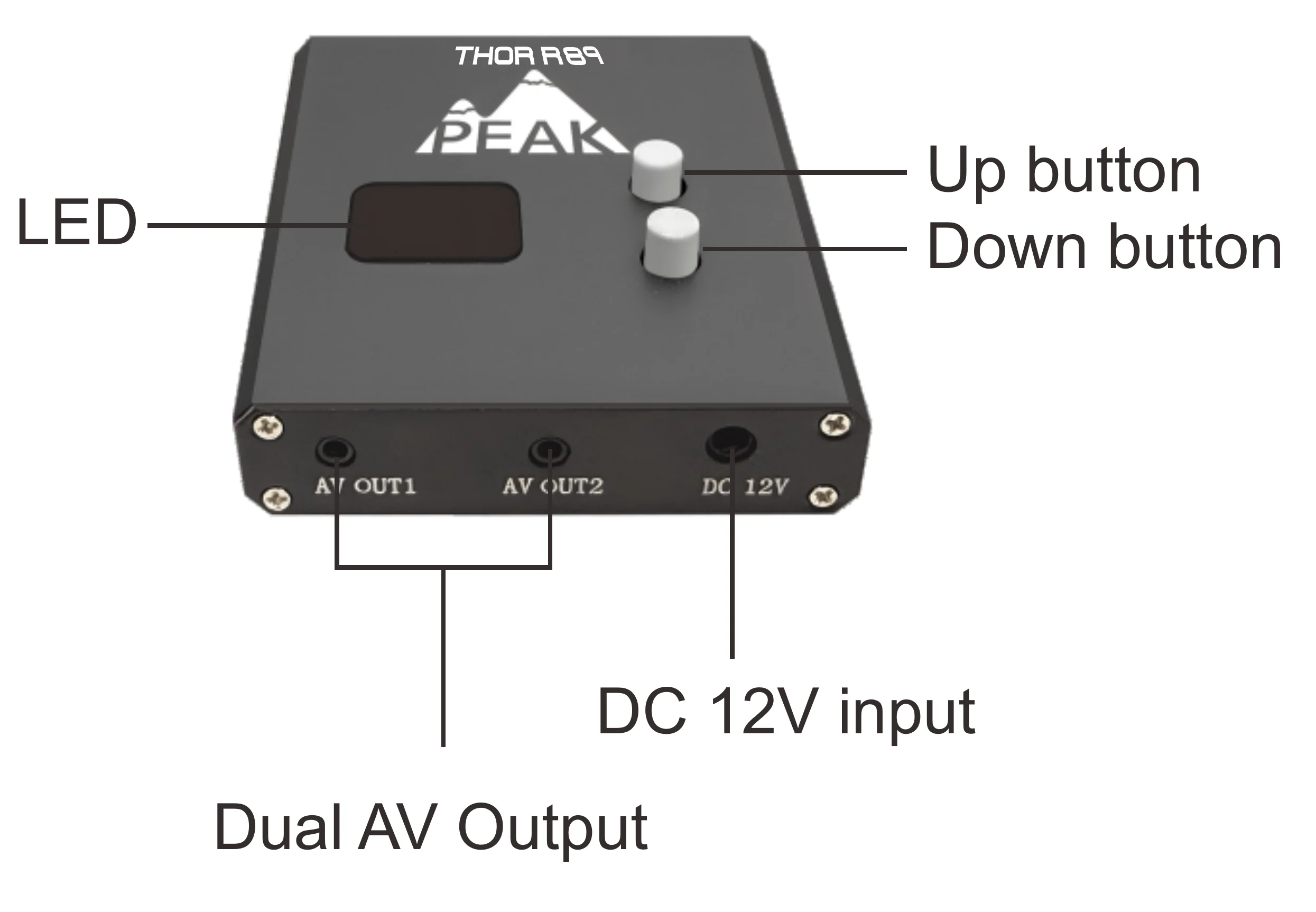

Connection reference
- DC 12V
- 12 V power input
- AV OUT1 / AV OUT2
- Two analog video outputs
Button positions vary by hardware revision. Identify the band and channel buttons by function before using the steps below.
Button operation
Select a band
Press the band button (labelled Up in the supplied manual).
Select a channel
Press the channel button (labelled Down in the supplied manual).
Read the display
The band letter and channel number identify the selected frequency. For example, b1 represents 8180 MHz.
Antenna connection reference
Use the receiver connection and operating band below to check antenna compatibility for your setup.
| Receiver RF connector | SMA |
|---|---|
| Receiver operating range | 8020–8800 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the receiver, not an antenna bandwidth specification.
Confirm the antenna model, connector and included accessories for your order.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your transmitter before pairing.
Power supply
Confirm the 12 V input specification and connection polarity.
Installation and connections
Check the 68 × 78 × 15 mm housing, SMA antenna and AV/power cable connections.
Enquire about PEAK THOR R89.
Tell us your quantity and setup requirements. We will confirm pricing and delivery options.
