VRX75D FPV Video Receiver
VRX75D analog video receiver module with 64 channels, CVBS video output, RSSI output and a PWM control interface.
- Frequency range
- 6110–7210 MHz
- Channel count
- 64 channels
- Input voltage
- 5–36 V
A closer look at VRX75D

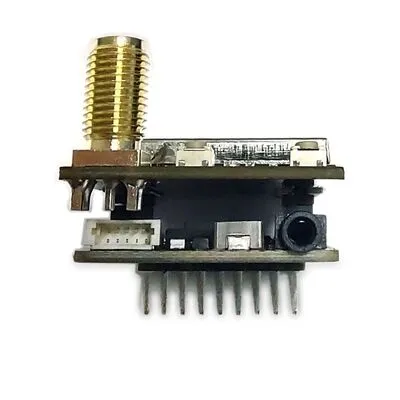

Views include: Receiver board and RF shield; Side connectors and module pins.
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
VRX75D specifications
The key electrical specifications, together in one place.
| Product | VRX75D |
|---|---|
| Type | Analog video receiver |
| Frequency range | 6110–7210 MHz |
| Channel count | 64 channels |
| Input voltage | 5–36 V |
| Video output | CVBS analog; 1 Vp-p, 75 Ω |
| Output interface | 2.5 mm AV / pin header |
| RSSI output | Supported |
| Control interface | PWM |
| Channel search | Auto frequency scanning |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connection reference
Review the visible interfaces before integrating this receiver.
Interface reference
Ask MASA for the pin assignments and operating instructions before wiring. This photograph identifies the interfaces; it is not an electrical pinout.
