KP-R4861 5.8GHz 112-Channel FPV Video Receiver
A 112-channel analog FPV receiver covering 4867–6060 MHz. A dual-digit display and channel controls support setup, with CVBS video output and RSSI available for integration.
- Frequency range
- 4867–6060 MHz
- Channel count
- 112 channels
- Sensitivity
- −95 dBm
- Net weight
- 14.2 g
A closer look at KP-R4861

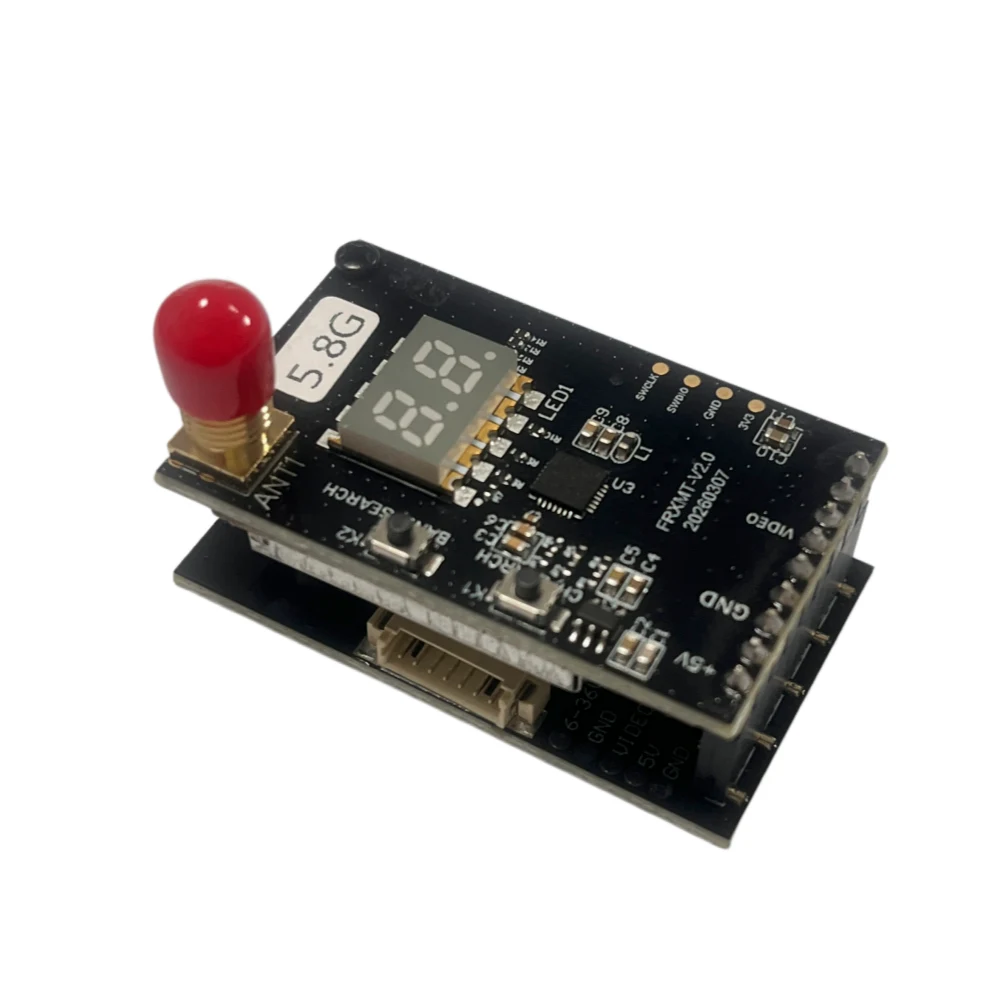

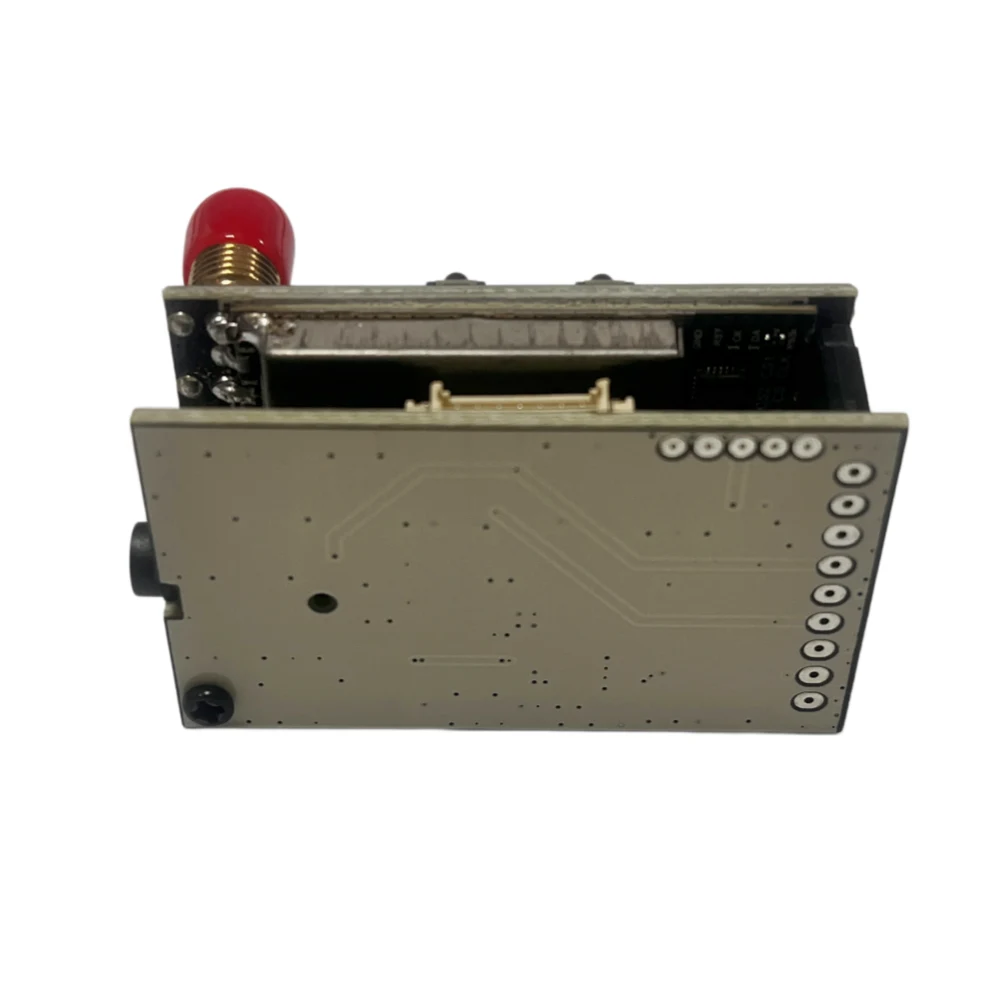

Inspect the hardware, connector positions and installation details.

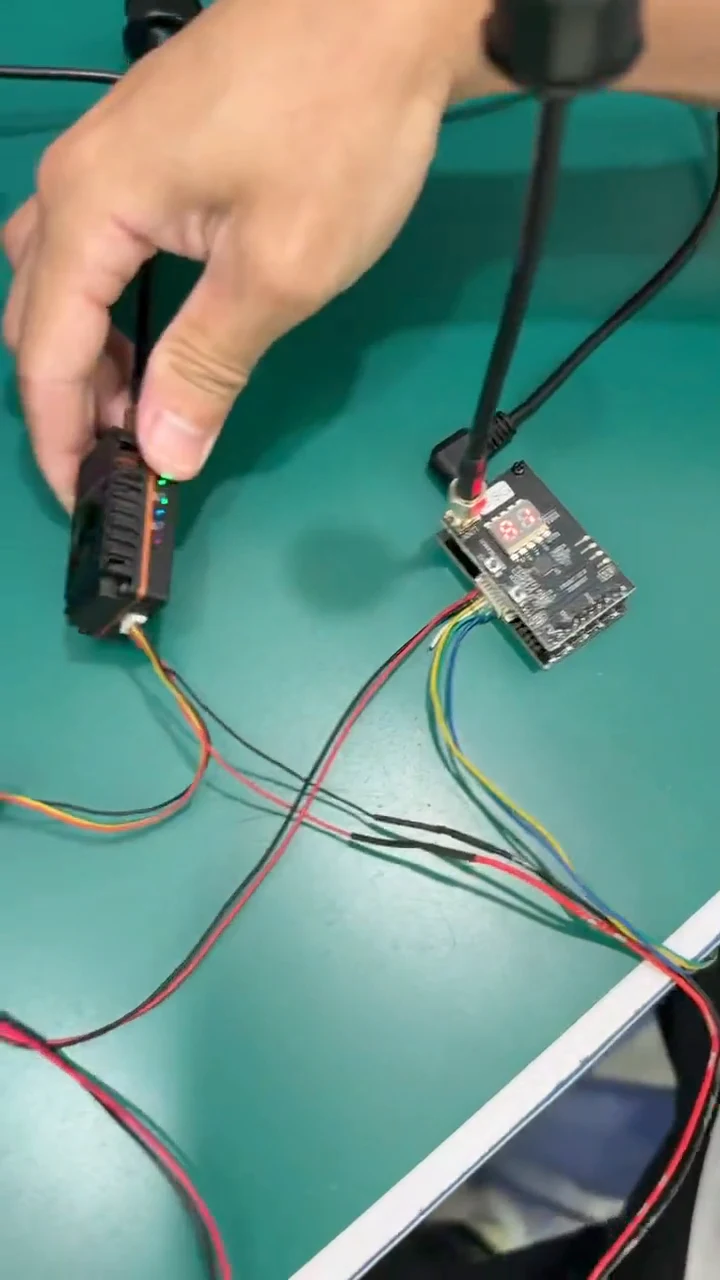

See the receiver controls and video reception in a connected bench setup.
Confirm the supplied accessories and connection requirements when enquiring.
KP-R4861 specifications
The key electrical specifications, together in one place.
| Model | KP-R4861 |
|---|---|
| Frequency range | 4867–6060 MHz |
| Channel count | 112 channels |
| Receiving sensitivity | −95 dBm |
| Dimensions (L × W × H) | 44 × 27 × 27 mm |
| Net weight | 14.2 g |
| RF connector | SMA female |
| RF input impedance | 50 Ω |
| Video output | 1 Vp-p / 75 Ω |
| Display | Dual 7-segment LED |
| Signal output | RSSI |
| Operating temperature | −10 to +65 °C |
112-channel frequency table
Frequencies in MHz, listed by the receiver band and channel labels. Match the displayed frequency with your transmitter; the sequence is not always ascending.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| b | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| E | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| F | 5129 | 5159 | 5189 | 5219 | 5249 | 5279 | 5309 | 5339 |
| r | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| P | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| L | 4900 | 4940 | 4921 | 4958 | 4995 | 5032 | 5069 | 5099 |
| U | 5960 | 5980 | 6000 | 6020 | 6030 | 6040 | 6050 | 6060 |
| O | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| H | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| t | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| n | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| d | 4867 | 4884 | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 |
| J | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Match the exact operating frequency across your video system before installation.
Controls and connection reference
Inspect the display, control buttons and connection points. Verify the power connector and its rating before wiring.
Connection reference
The board has a pin marked +5V. Confirm the rating of the specific power connector before applying power; do not apply a wide-voltage supply to the +5V pin.
Antenna connection reference
The receiver uses an SMA female antenna connector. Select an antenna that covers the exact frequency used for the link.
| Receiver RF connector | SMA female |
|---|---|
| Receiver frequency range | 4867–6060 MHz |
| RF input impedance | 50 Ω |
Connection and selection
- Check frequency and connector
- Match antenna coverage to your selected channel and verify the centre contact before connection.
Confirm the antenna and accessory supply scope for your order.
Check your setup before ordering.
Check frequency, power connections and installation clearance before ordering.
Match the operating frequency
Set both ends of your video link to the same frequency.
Check the power connection
Verify the rating and polarity of the exact input connector. Do not assume the +5V board pin accepts the voltage range stated for another interface.
