Shrimp B 3.3G 10W FPV Video Transmitter
3.3 GHz analog video transmission with 80 channels across 3060–3840 MHz, 10 W output and a 12–36 V input supply.
- Frequency range
- 3060–3840 MHz
- Channel count
- 80 channels
- Output power
- 10 W
- Input voltage
- 12–36 V
A closer look at 3.3G 10W

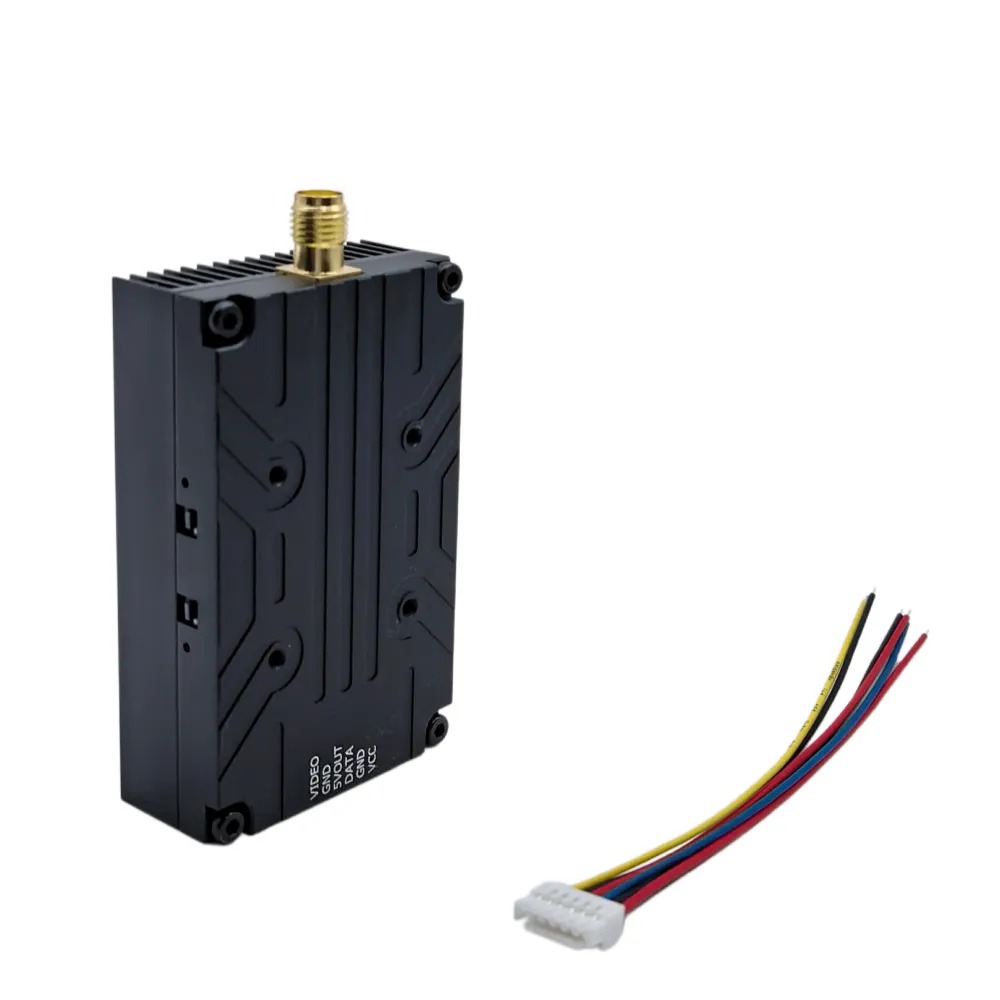

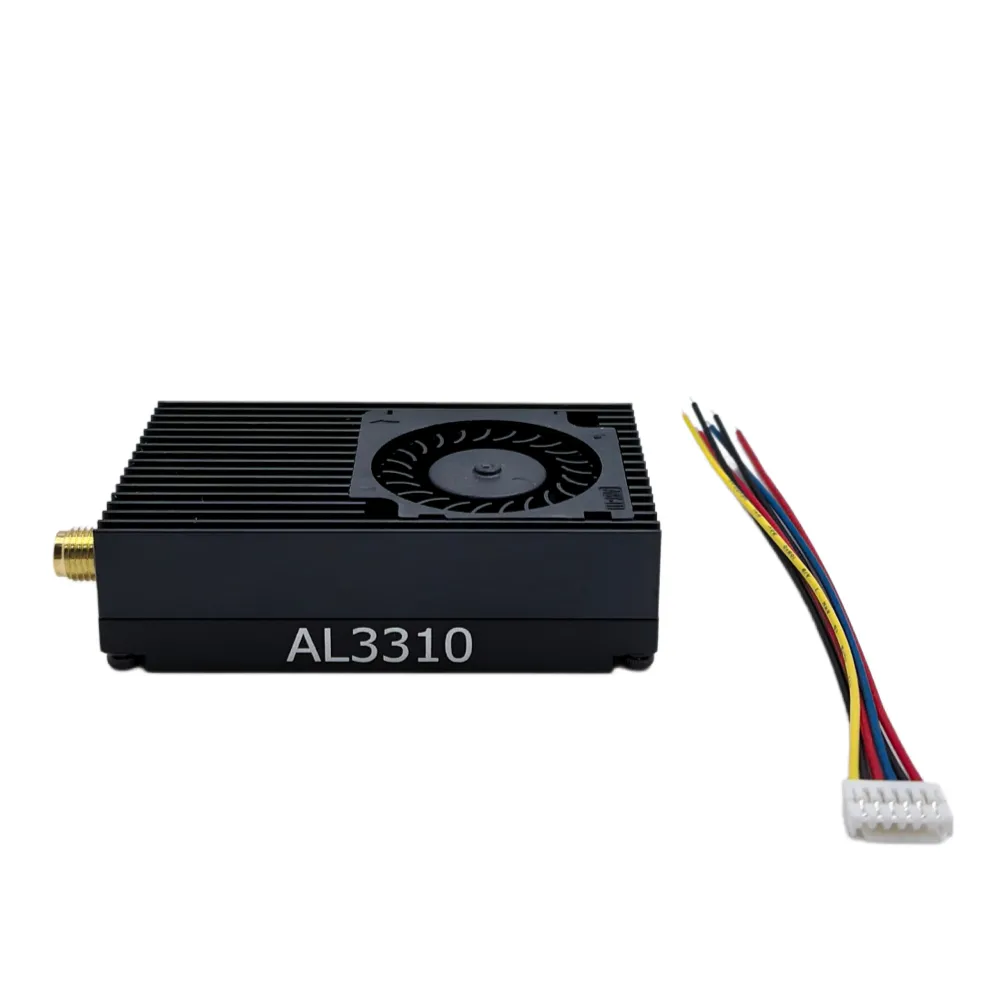

Views include: Fan and wiring; Rear housing and connector; Fan-side view with accessories; Housing and wiring harness.
- Cooling fan and finned housing

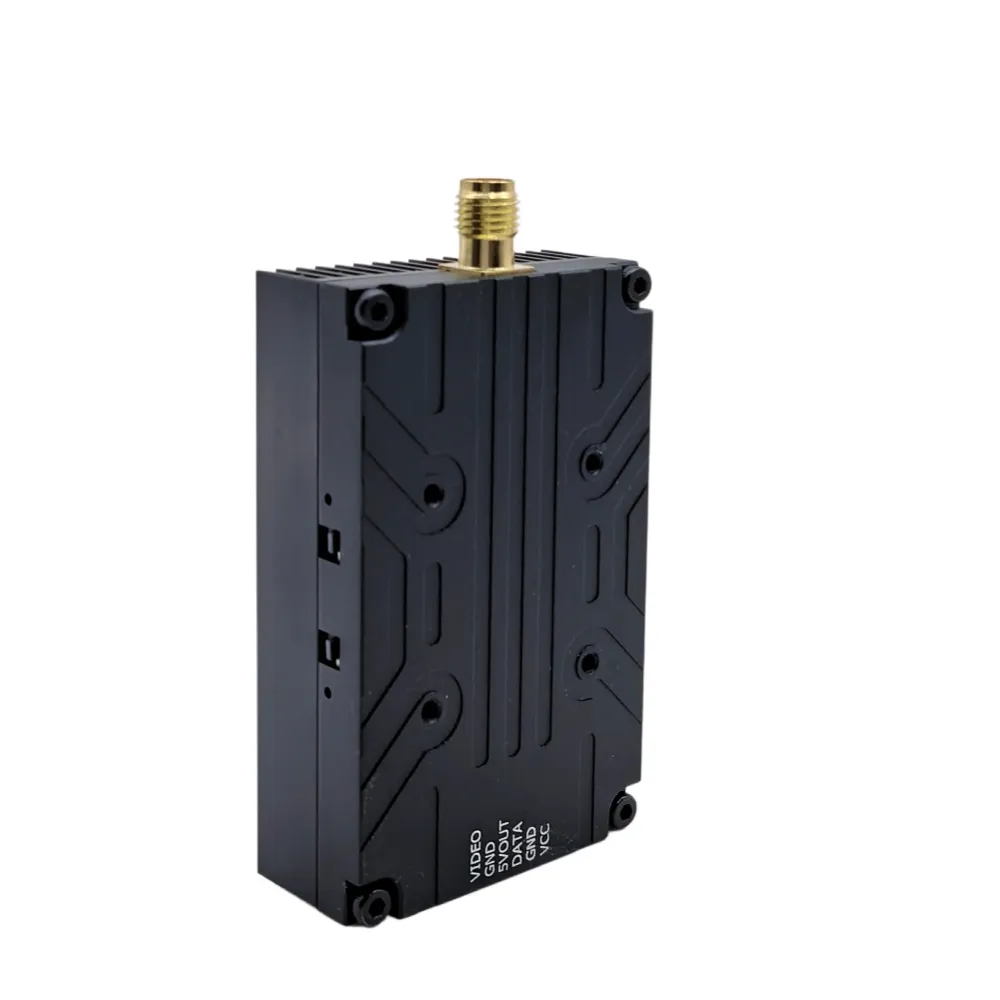

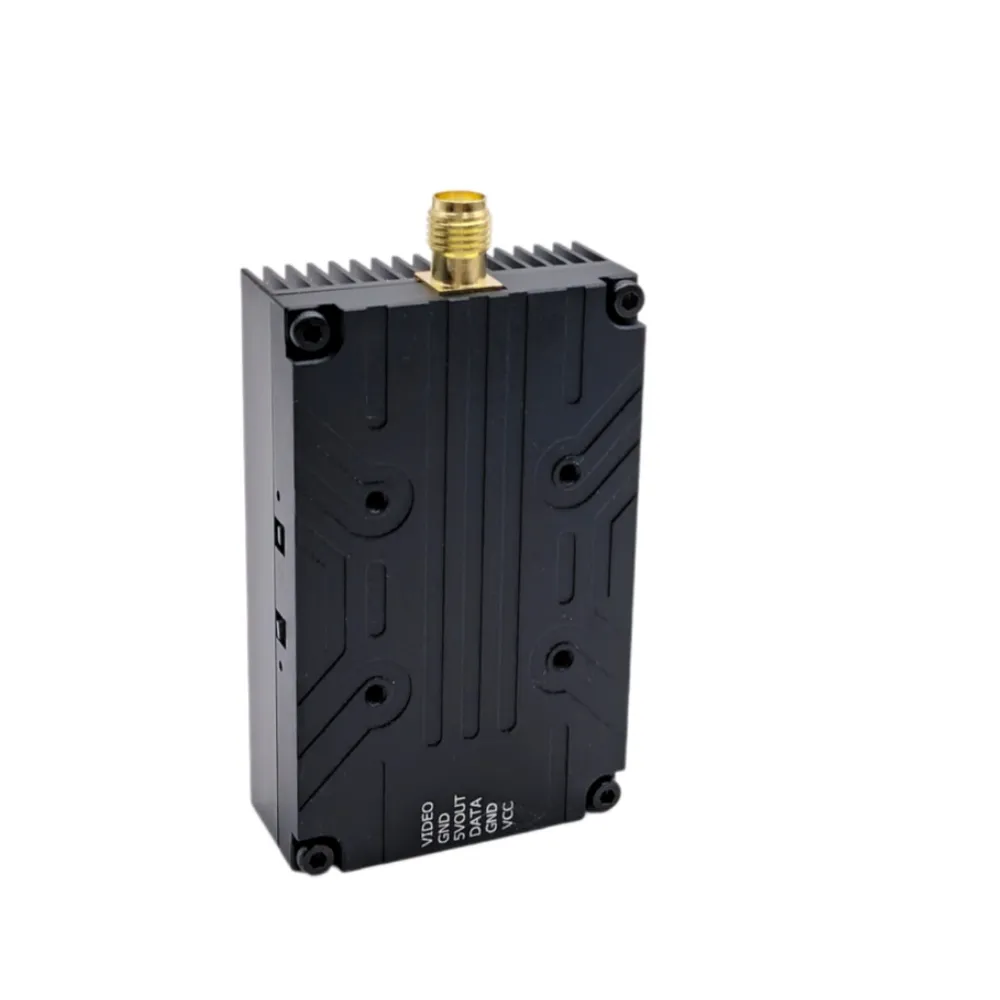

- Rear housing and antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
Shrimp B 3.3G 10W specifications
The key electrical specifications, together in one place.
| Product | Shrimp B 3.3G 10W VTX |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 3060–3840 MHz |
| Channel count | 80 channels |
| Output power | 10 W |
| Input voltage | 12–36 V |
| Dimensions | 58 × 36 × 16 mm |
| Mounting hole spacing | 20 × 20 mm |
| Weight | 36.8 g |
| Control protocol | IRC Tramp |
| Selectable output levels | 2.5 / 5 / 7 / 10 W |
Additional electrical specifications
| Modulation | FM |
|---|---|
| Frequency control | PLL |
| Frequency precision | ±200 kHz (typical) |
| Video input level | 1 V ±0.2 Vp-p (typical) |
| Operating temperature | −10 °C to +70 °C |
| Signal-to-noise ratio (±3 MHz) | >55 dBc |
80-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 3060 | 3080 | 3100 | 3120 | 3140 | 3160 | 3180 | 3200 |
| b | 3083 | 3114 | 3145 | 3176 | 3207 | 3238 | 3269 | 3300 |
| C | 3215 | 3235 | 3255 | 3275 | 3295 | 3315 | 3335 | 3355 |
| d | 3170 | 3190 | 3210 | 3230 | 3250 | 3270 | 3290 | 3310 |
| E | 3320 | 3345 | 3370 | 3390 | 3420 | 3445 | 3470 | 3495 |
| F | 3310 | 3330 | 3355 | 3380 | 3405 | 3430 | 3455 | 3480 |
| H | 3330 | 3350 | 3370 | 3390 | 3410 | 3430 | 3450 | 3470 |
| L | 3360 | 3380 | 3400 | 3420 | 3440 | 3460 | 3480 | 3500 |
| n | 3520 | 3540 | 3560 | 3580 | 3600 | 3620 | 3640 | 3680 |
| u | 3700 | 3720 | 3740 | 3760 | 3780 | 3800 | 3820 | 3840 |
Match exact channel frequencies with your receiver. A band name alone does not confirm compatibility.
Connect. Configure. Check.
Use the housing labels to identify the connections, then set channels and power with the buttons or a compatible flight controller.

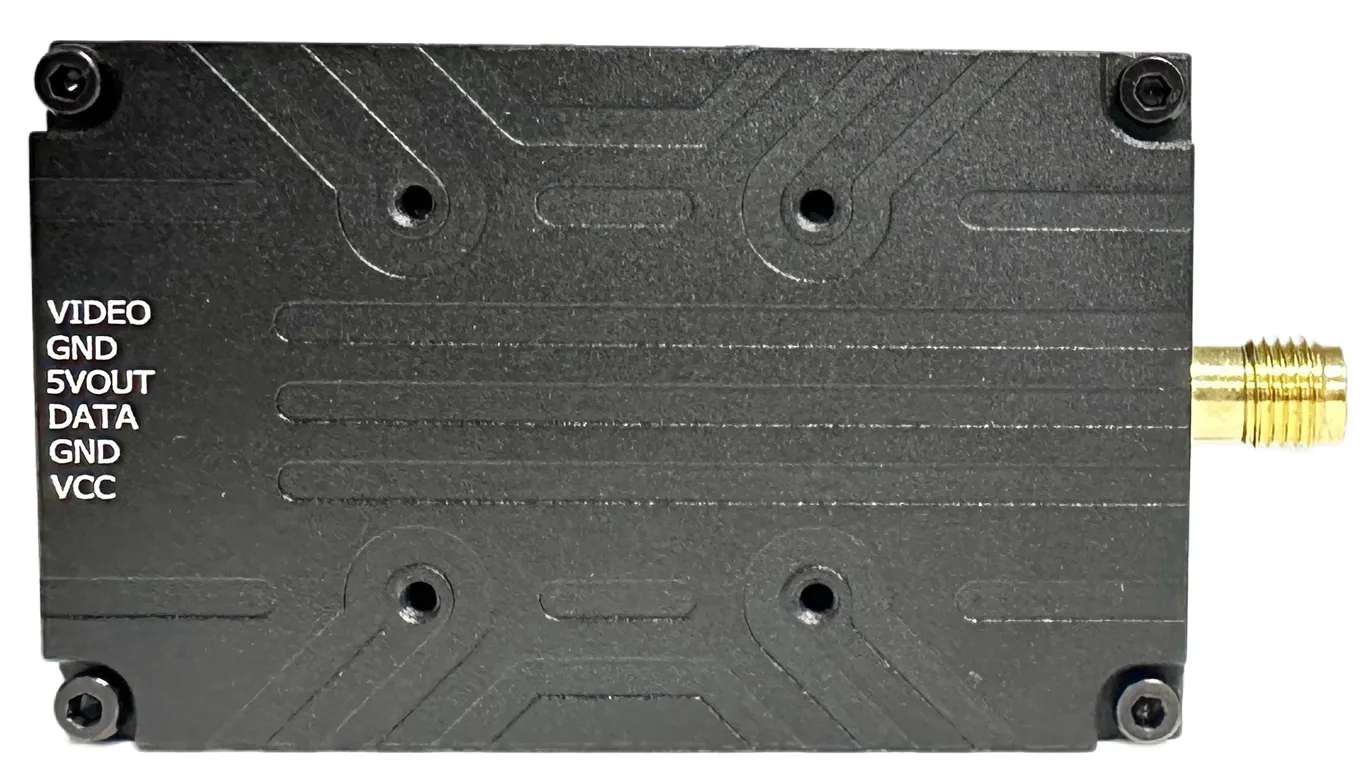

Connection reference
- VIDEO
- Analog video input
- GND
- Ground (two connections)
- 5VOUT
- 5 V output
- DATA
- IRC Tramp control connection
- VCC
- Power input — confirm the supplied unit’s voltage rating before wiring
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press the channel button to enter channel setup. With the LED flashing, short-press to select the channel.
Choose a band
Hold the channel button for 3 seconds to enter band setup, then short-press to select the band.
Set output power
Short-press the power button to enter power setup, then use short presses to select the power level.
Connect the antenna before powering on. Operating without an antenna can damage the transmitter.
Antenna reference

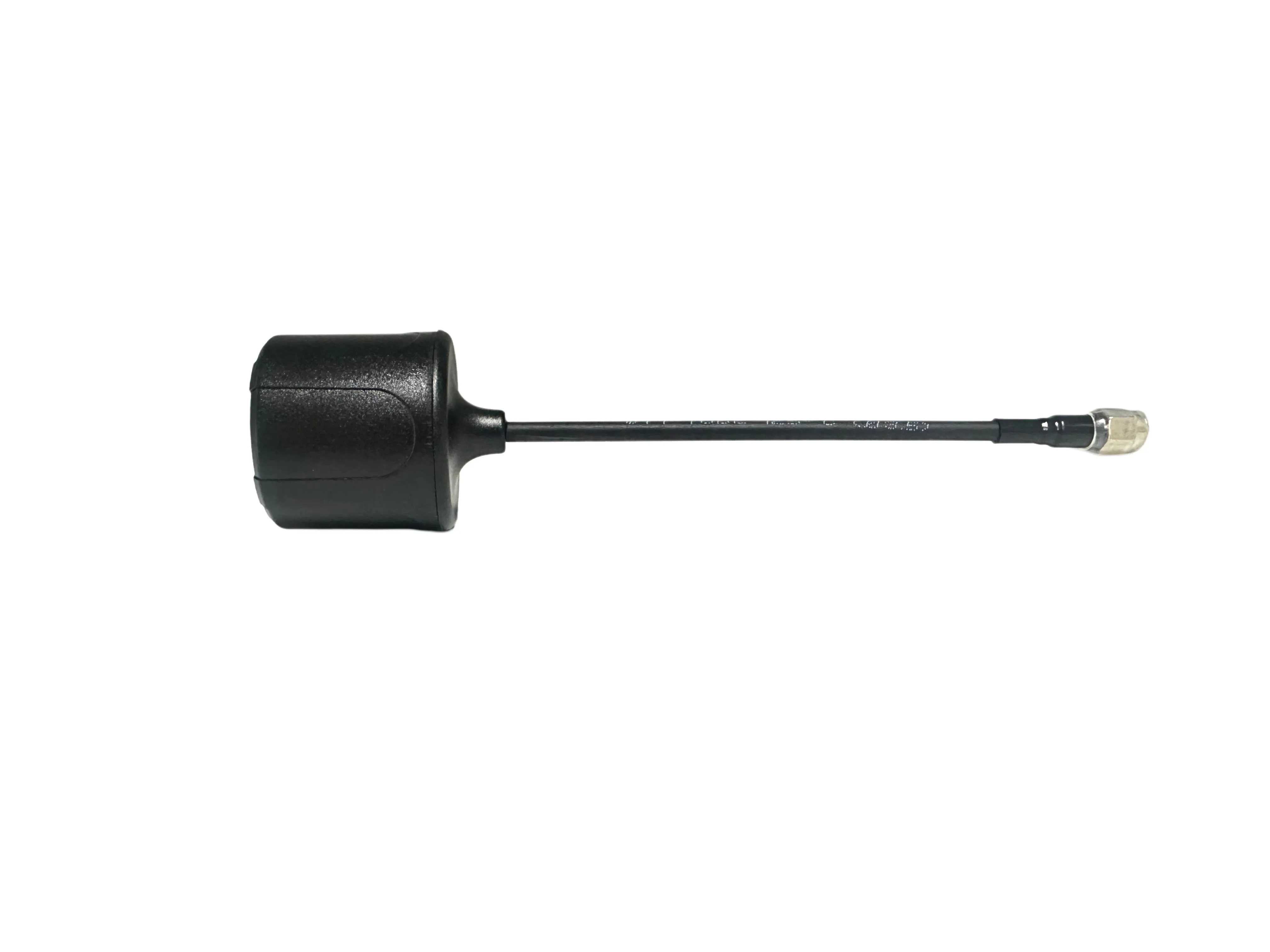

Antenna characteristics listed in the 3.3 GHz 10 W technical sheet. Check the connector, polarization and installation space for your setup.
Reference accessory only. Confirm antenna availability, compatibility and whether it is included in your quotation.
| Frequency coverage | 3000–3900 MHz |
|---|---|
| Gain | 5 dBi |
| Polarization | RHCP |
| Radiation pattern | Omnidirectional |
| Impedance | 50 Ω |
| VSWR | <1.5 |
| Connector | SMA male |
| Cable | RG141 semi-steel |
| Housing dimensions (drawing) | 34.5 mm diameter × 42 mm length |
| Cable-side span (drawing) | 127 mm |
Check your setup before ordering.
Start with the receiver, then verify power, antenna and installation space.
Receiver matching
Confirm channels within 3060–3840 MHz.
Power supply
Review the 12–36 V specification and confirm the supplied unit’s input rating. Avoid excessive supply interference.
Wiring and mounting
Allow space for the 58 × 36 × 16 mm housing and 20 × 20 mm mounting pattern. Mount securely, away from excessive vibration and heat.
