FPV VTX: Analog Video Transmitters
Compare analog FPV VTX models, including AKK VTX, PEAK VTX and Shrimp B VTX products. Review frequency, output power and input voltage for your aircraft.
Showing 22 of 22 models
Shrimp B

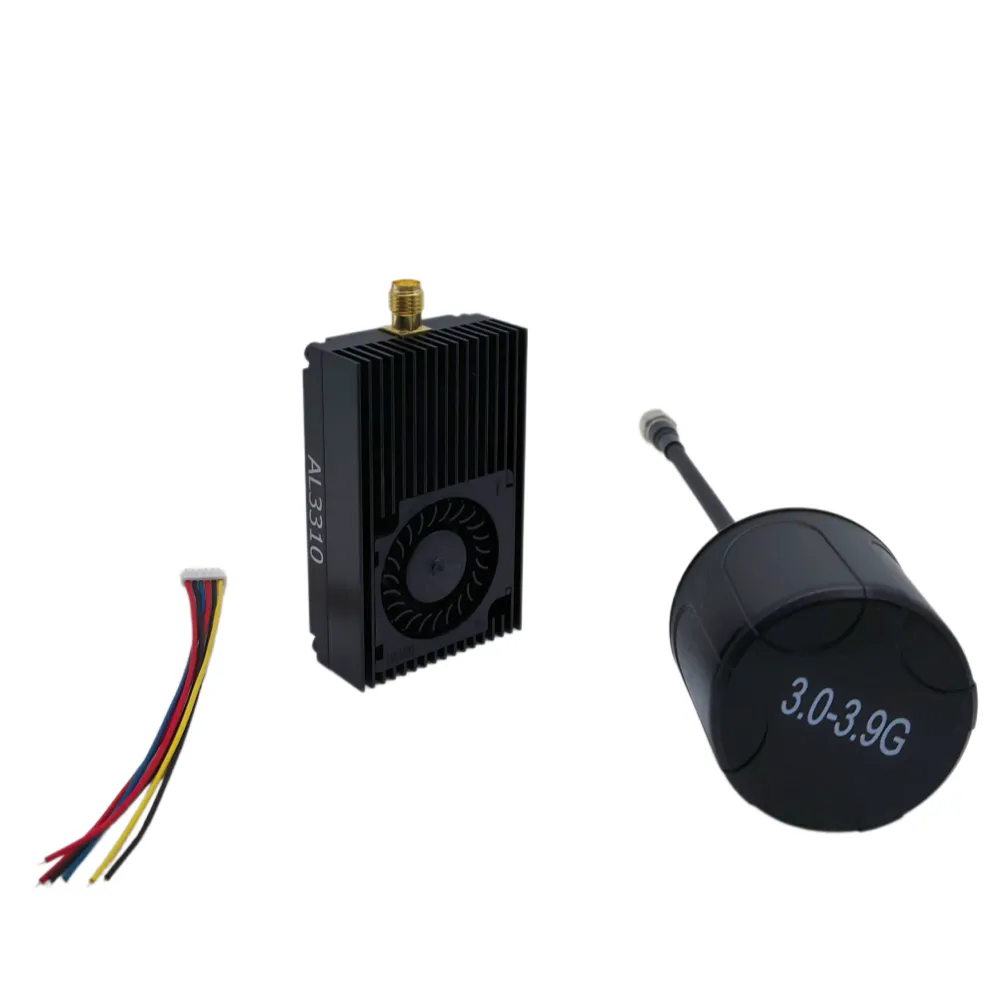

Shrimp B 3.3G 10W
Analog video transmitter
- Frequency range
- 3060–3840 MHz
- Output power
- 10 W
- Input voltage
- 12–36 V
Shrimp B
AL7210
Analog video transmitter
- Frequency range
- 6110–7210 MHz
- Output power
- 10 W
- Input voltage
- 9–36 V
PEAK
PEAK THOR T35
Analog video transmitter
- Frequency range
- 3000–4938 MHz
- Output power
- 3 W
- Input voltage
- 9–28 V
AKK

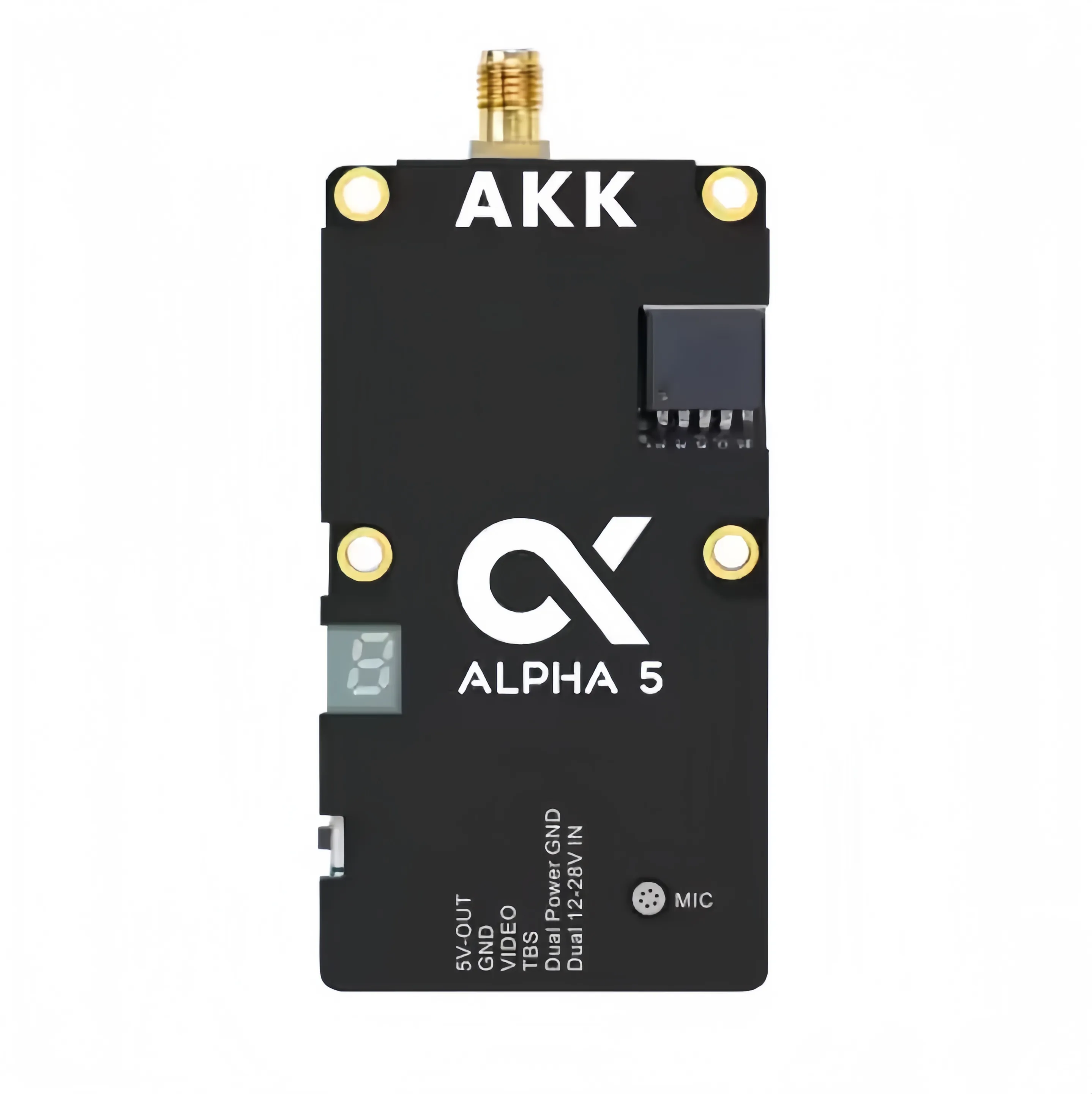

AKK Alpha 5
Analog video transmitter
- Frequency range
- 4990–5945 MHz
- Output power
- 5 W
- Input voltage
- 12–28 V
AKK

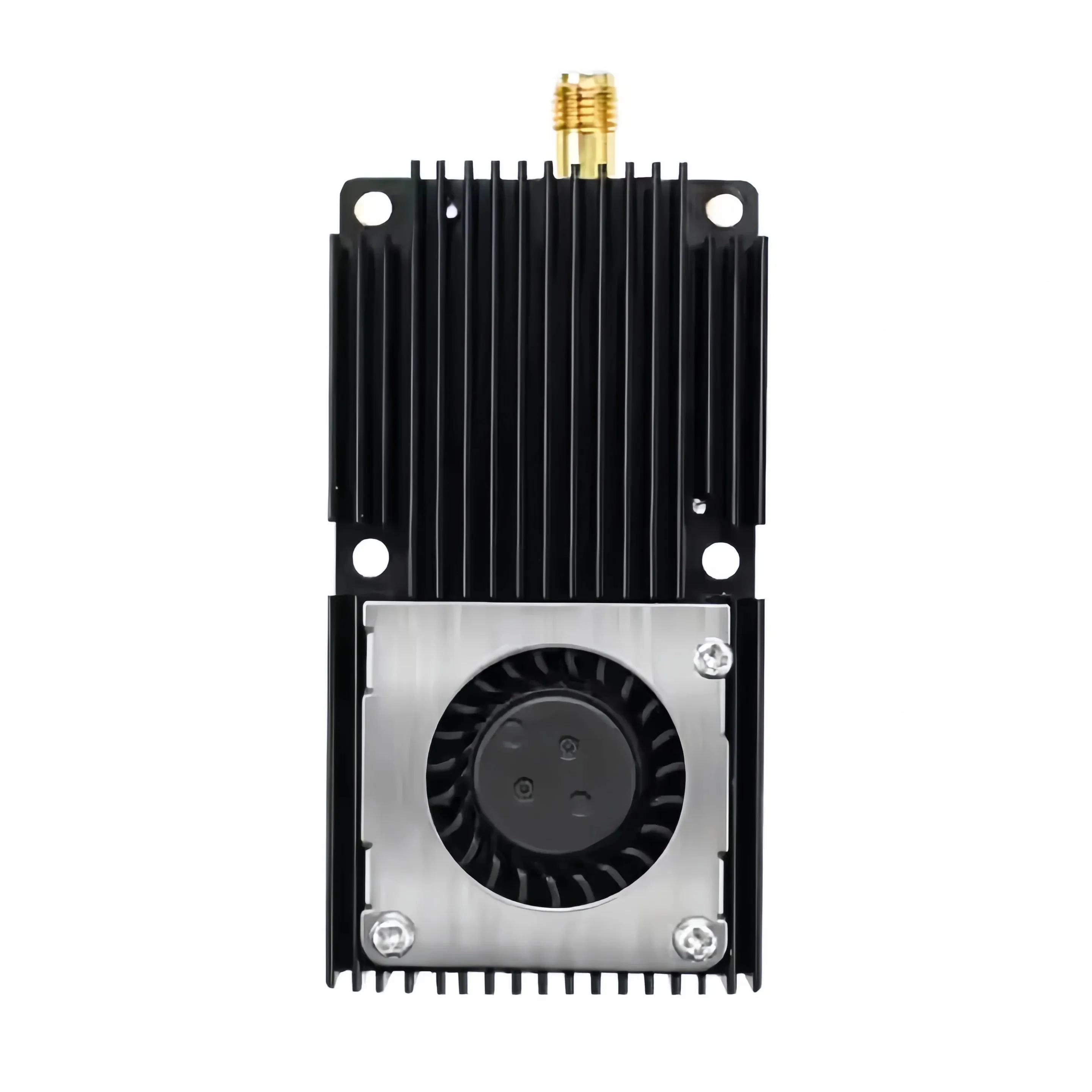

AKK Alpha 8
Analog video transmitter
- Frequency range
- 4990–5945 MHz
- Output power
- 8 W
- Input voltage
- 12–28 V
AKK

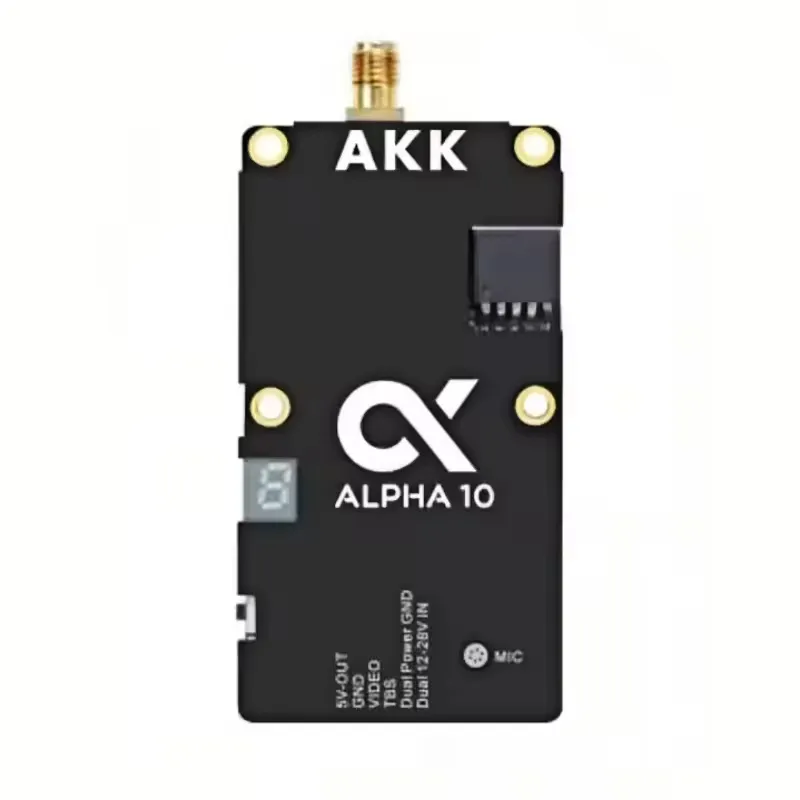

AKK Alpha 10
Analog video transmitter
- Frequency range
- 4990–5945 MHz
- Output power
- 10 W
- Input voltage
- 12–28 V

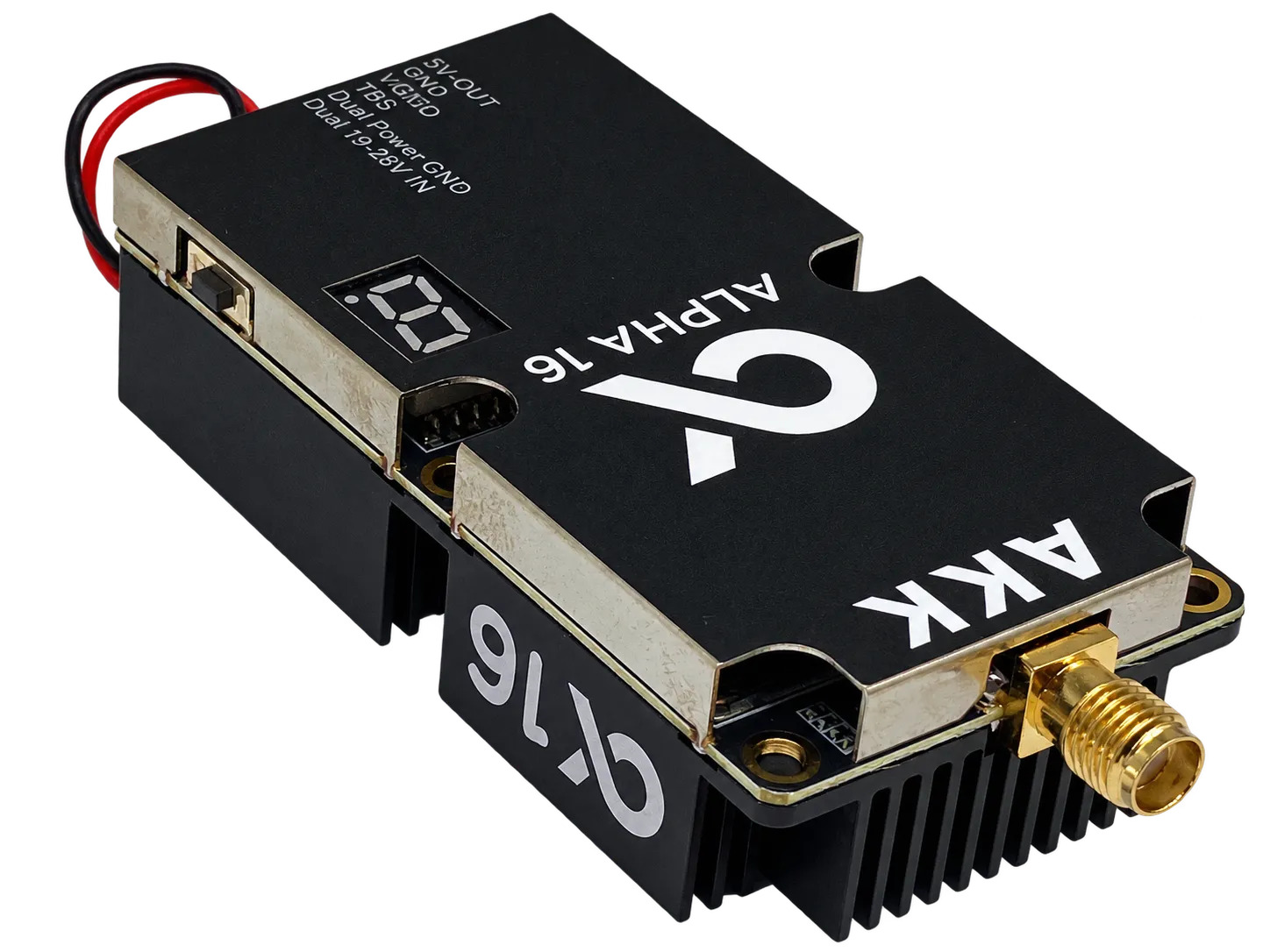

AKK
AKK Alpha 16
Analog video transmitter
- Frequency range
- 4900–6060 MHz
- Output power
- 16 W
- Input voltage
- 12–36 V
AKK

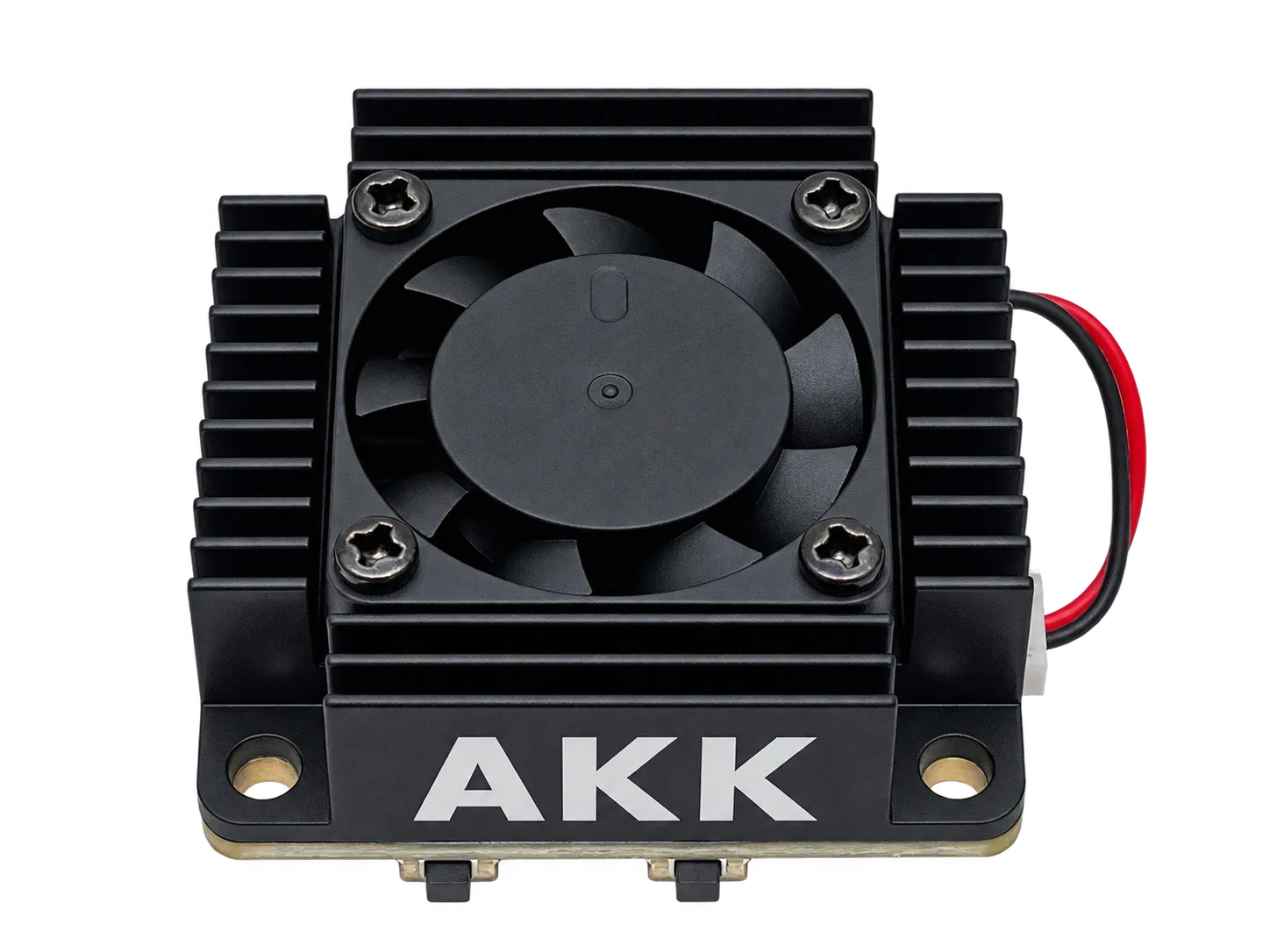

AKK TX3000AC
Analog video transmitter
- Frequency range
- 4990–5945 MHz
- Output power
- 3 W
- Input voltage
- 14–28 V
AKK
AKK TX5000AC
Analog video transmitter
- Frequency range
- 4900–6060 MHz
- Output power
- 5 W
- Input voltage
- 14.6–28 V
AKK

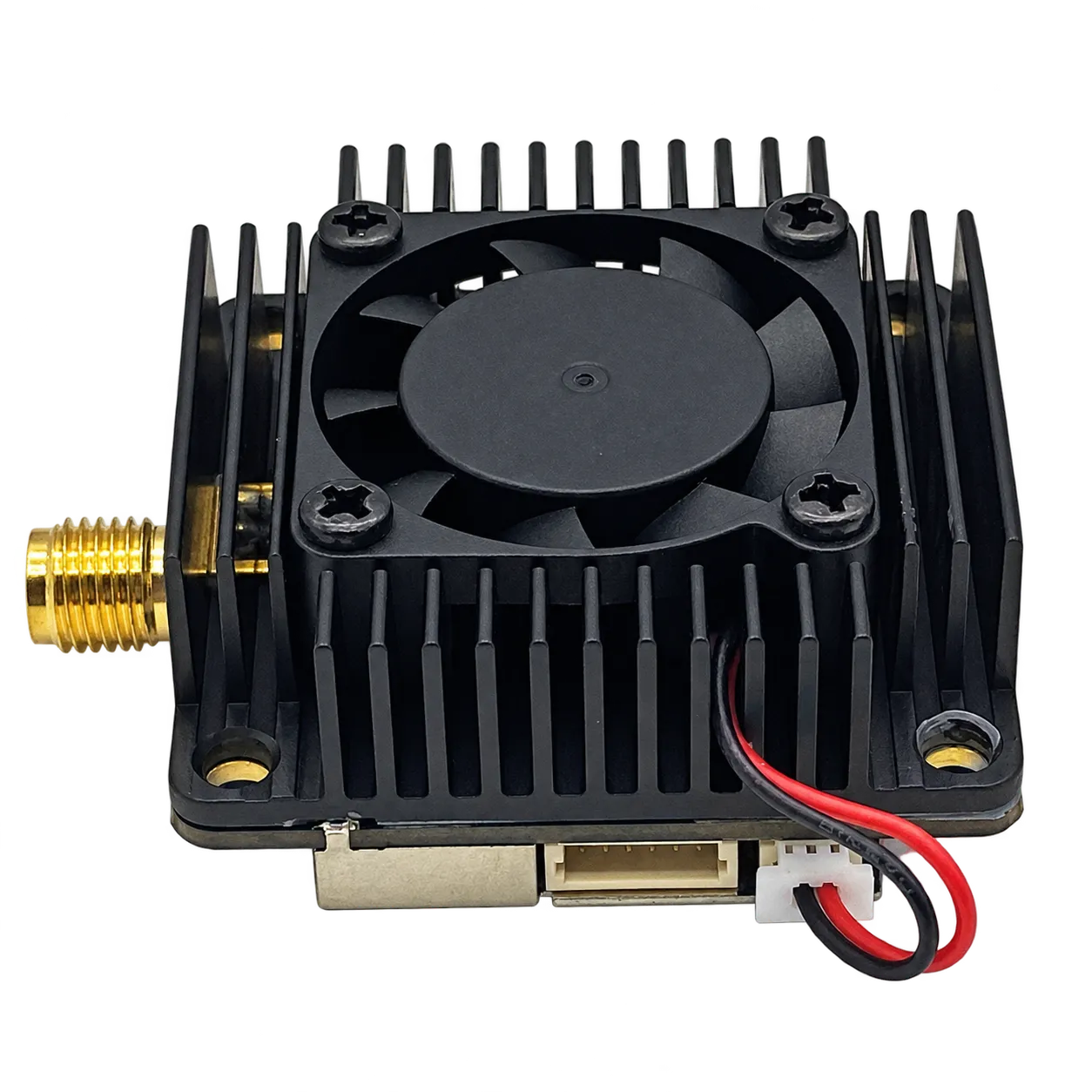

AKK TX8000AC
Analog video transmitter
- Frequency range
- 4900–6060 MHz
- Output power
- 8 W
- Input voltage
- 14.6–28 V
PEAK

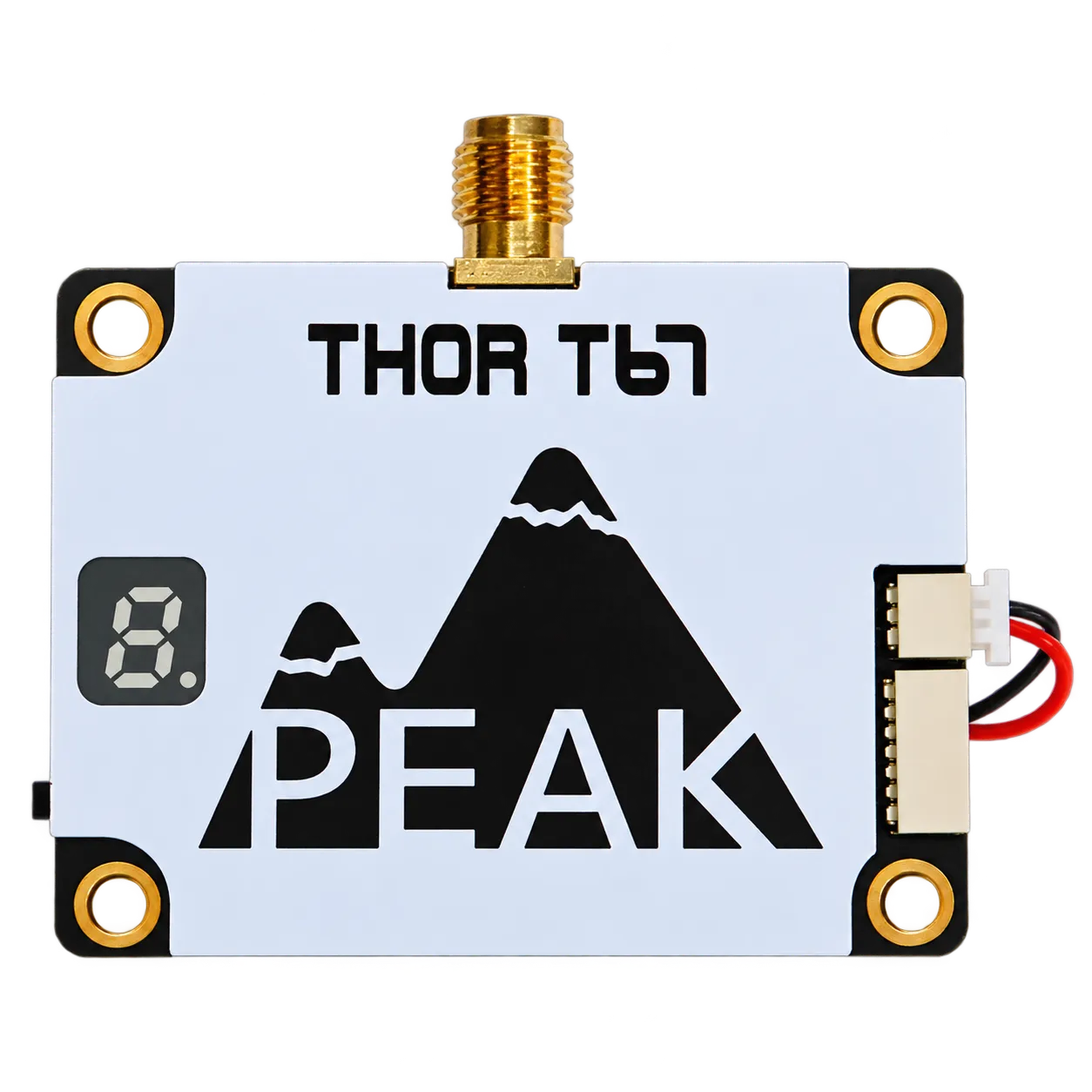

PEAK THOR T67
Analog video transmitter
- Frequency range
- 6110–7210 MHz
- Output power
- 3 W
- Input voltage
- 9–28 V
PEAK

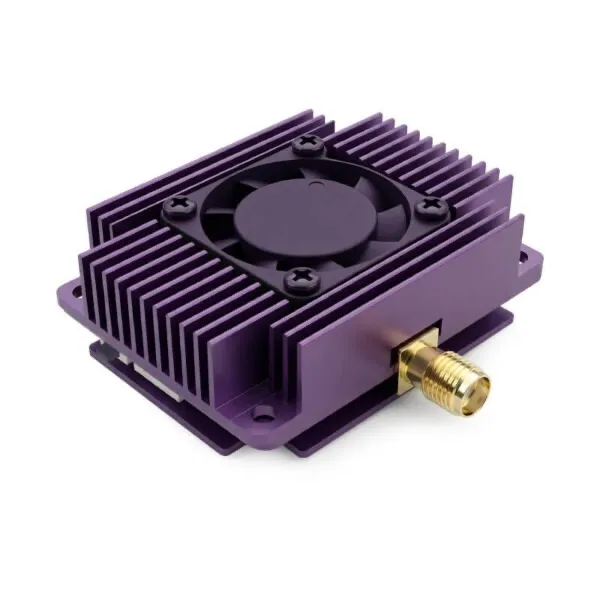

PEAK THOR T78
Analog video transmitter
- Frequency range
- 7200–8000 MHz
- Output power
- 3 W
- Input voltage
- 14–28 V

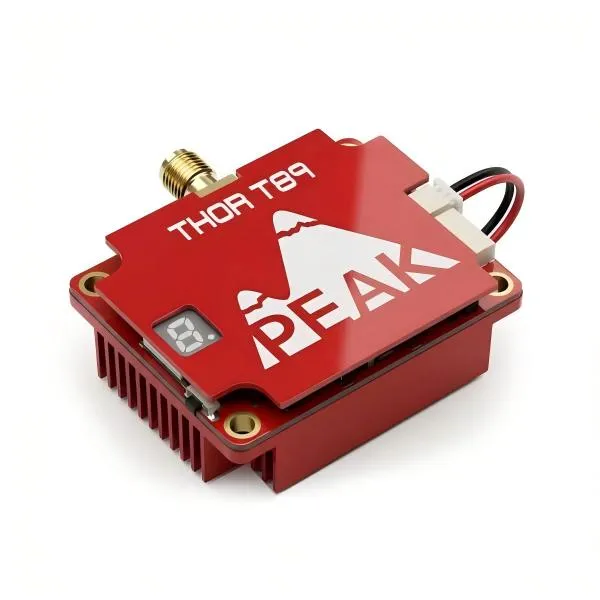

PEAK
PEAK THOR T89
Analog video transmitter
- Frequency range
- 8020–8800 MHz
- Output power
- 4 W
- Input voltage
- 16–28 V

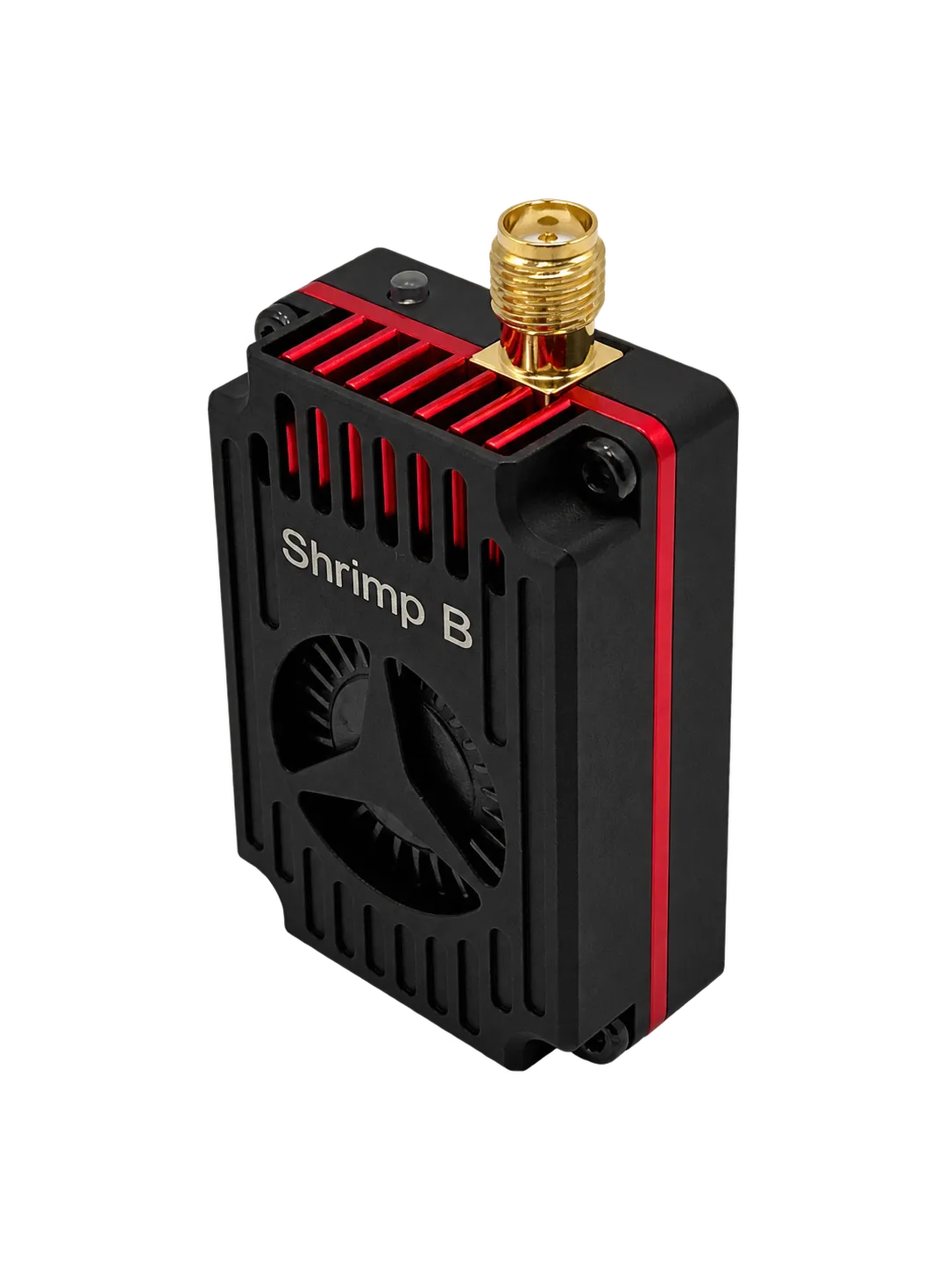

Shrimp B
Shrimp B 1.3G 4W
Analog video transmitter
- Frequency range
- 1080–1360 MHz
- Output power
- 4 W
- Input voltage
- 7–30 V
Shrimp B

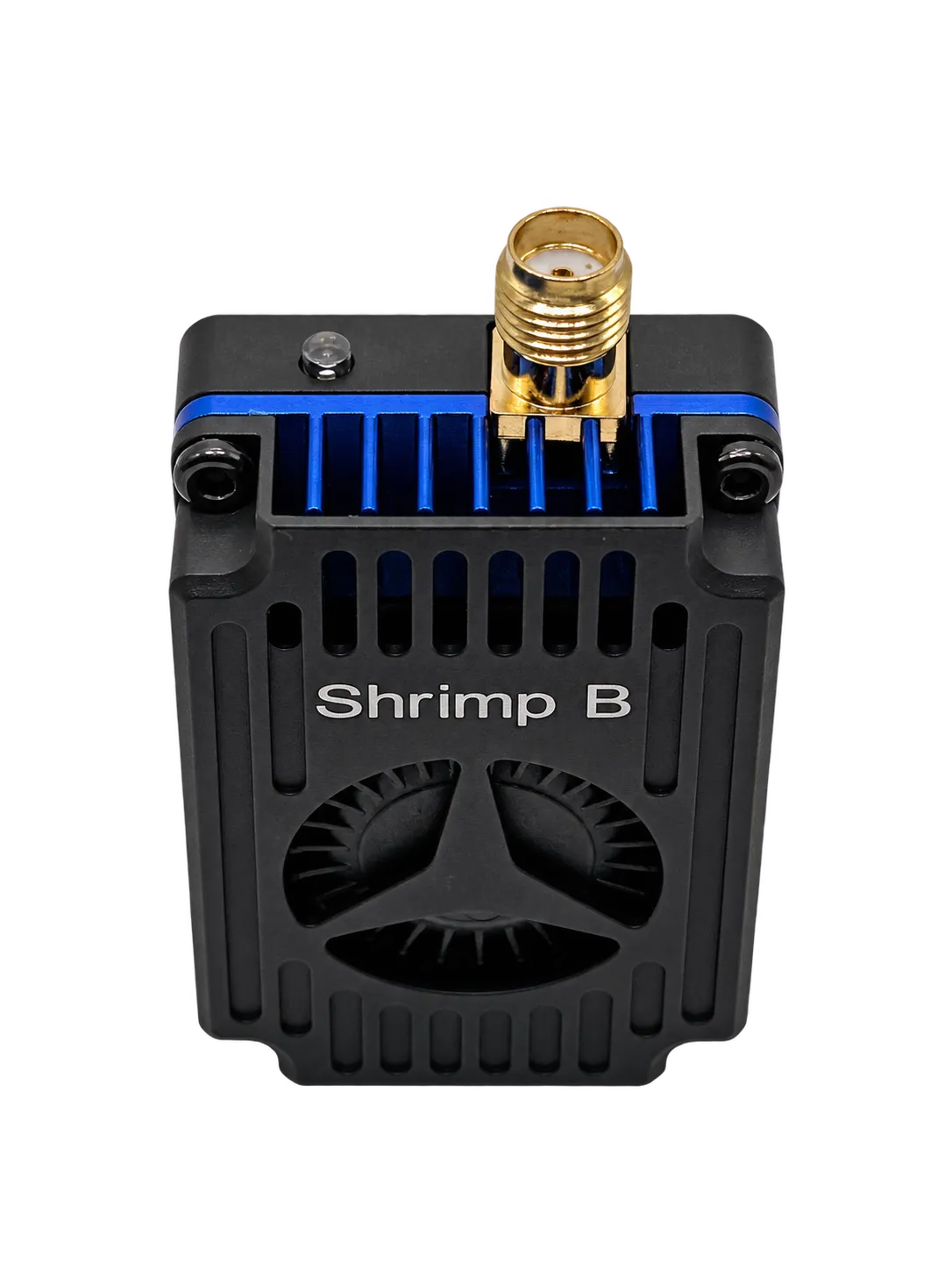

Shrimp B 1.3G 6W
Analog video transmitter
- Frequency range
- 1080–1360 MHz
- Output power
- 6 W
- Input voltage
- 7–30 V

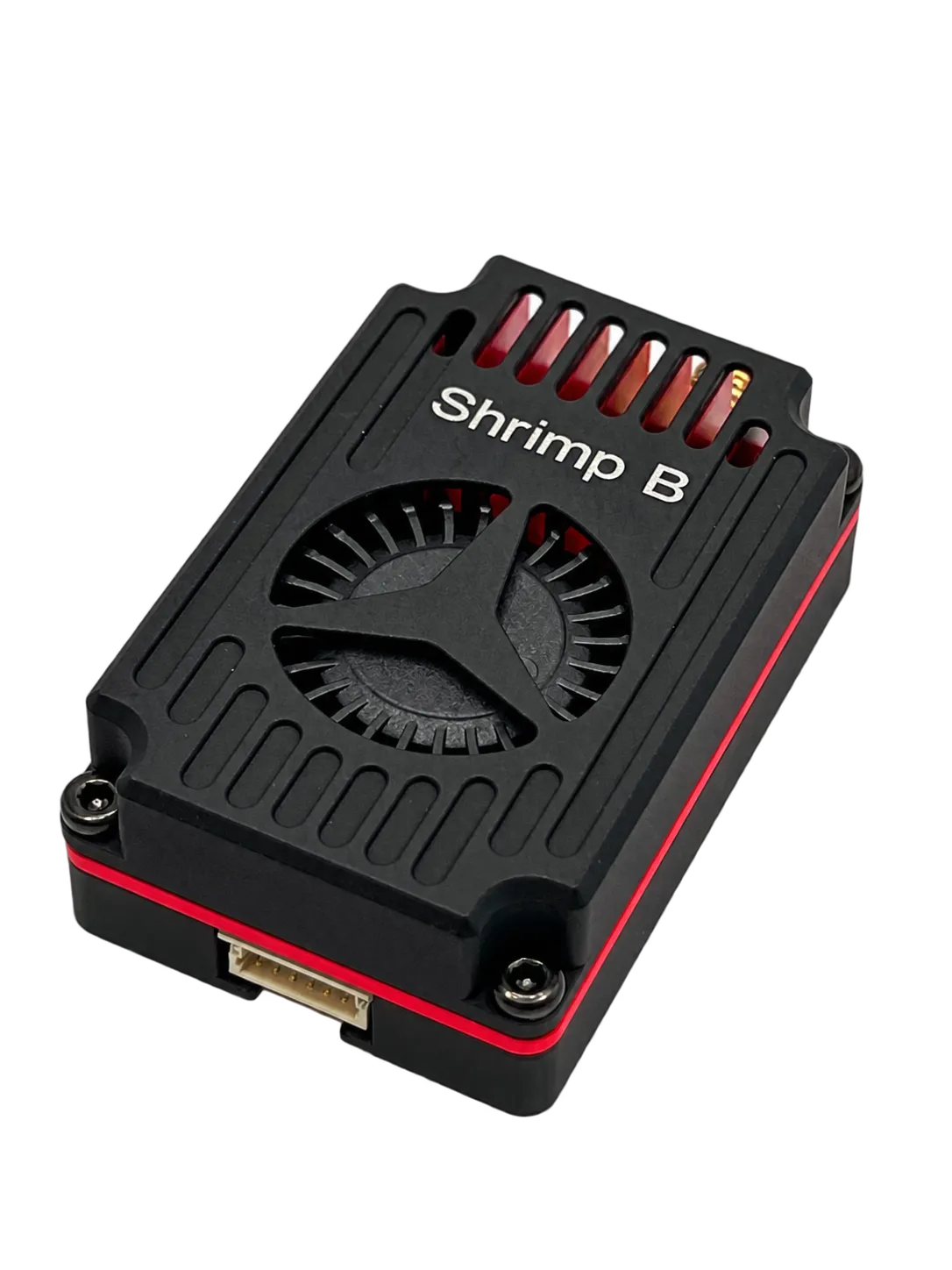

Shrimp B
Shrimp B 3.3G 4W
Analog video transmitter
- Frequency range
- 3.3 GHz
- Output power
- 4 W
- Input voltage
- 7–30 V
Shrimp B

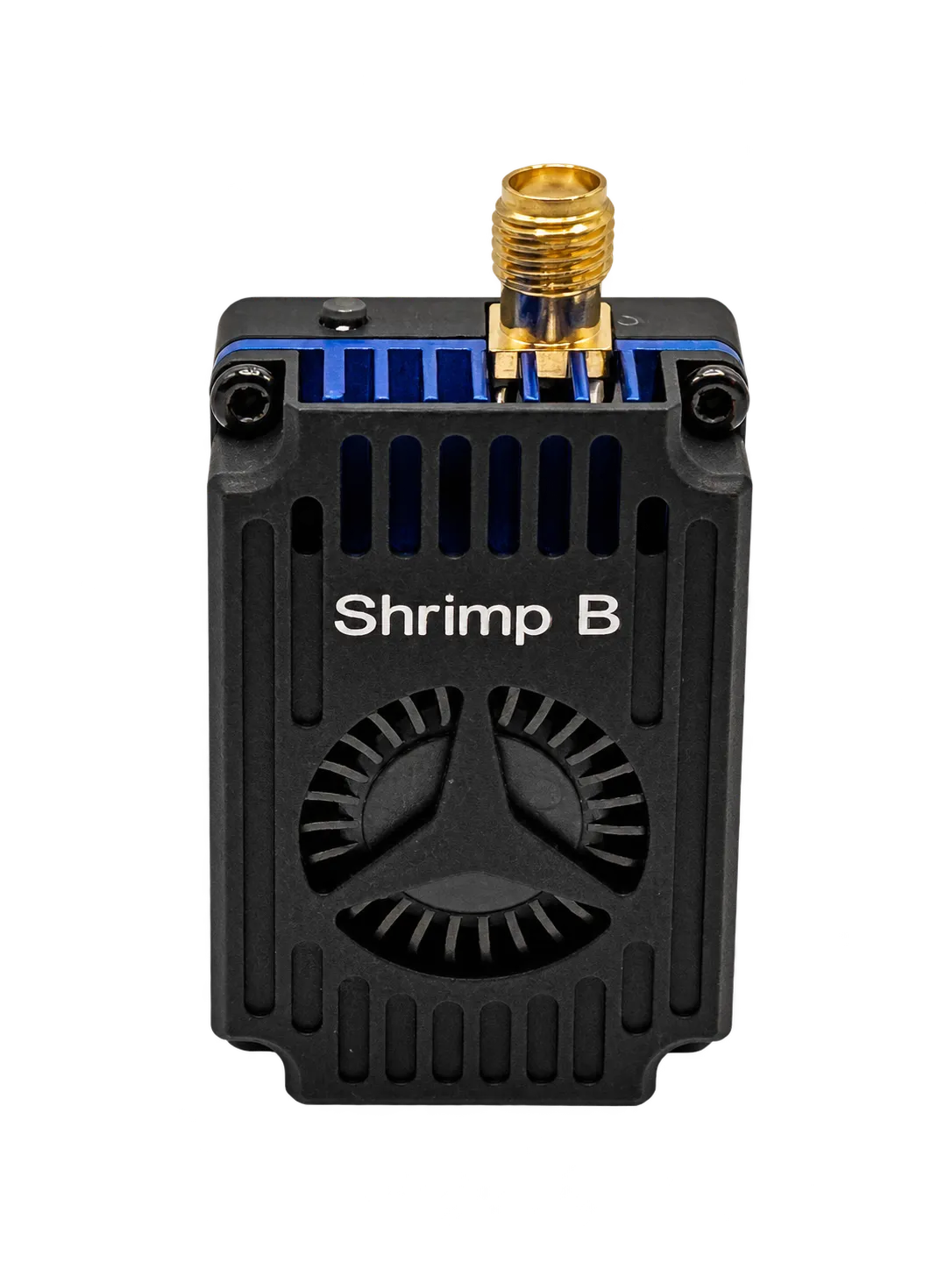

Shrimp B 3.3G 6W
Analog video transmitter
- Frequency range
- 3.3 GHz
- Output power
- 6 W
- Input voltage
- 7–30 V
Shrimp B

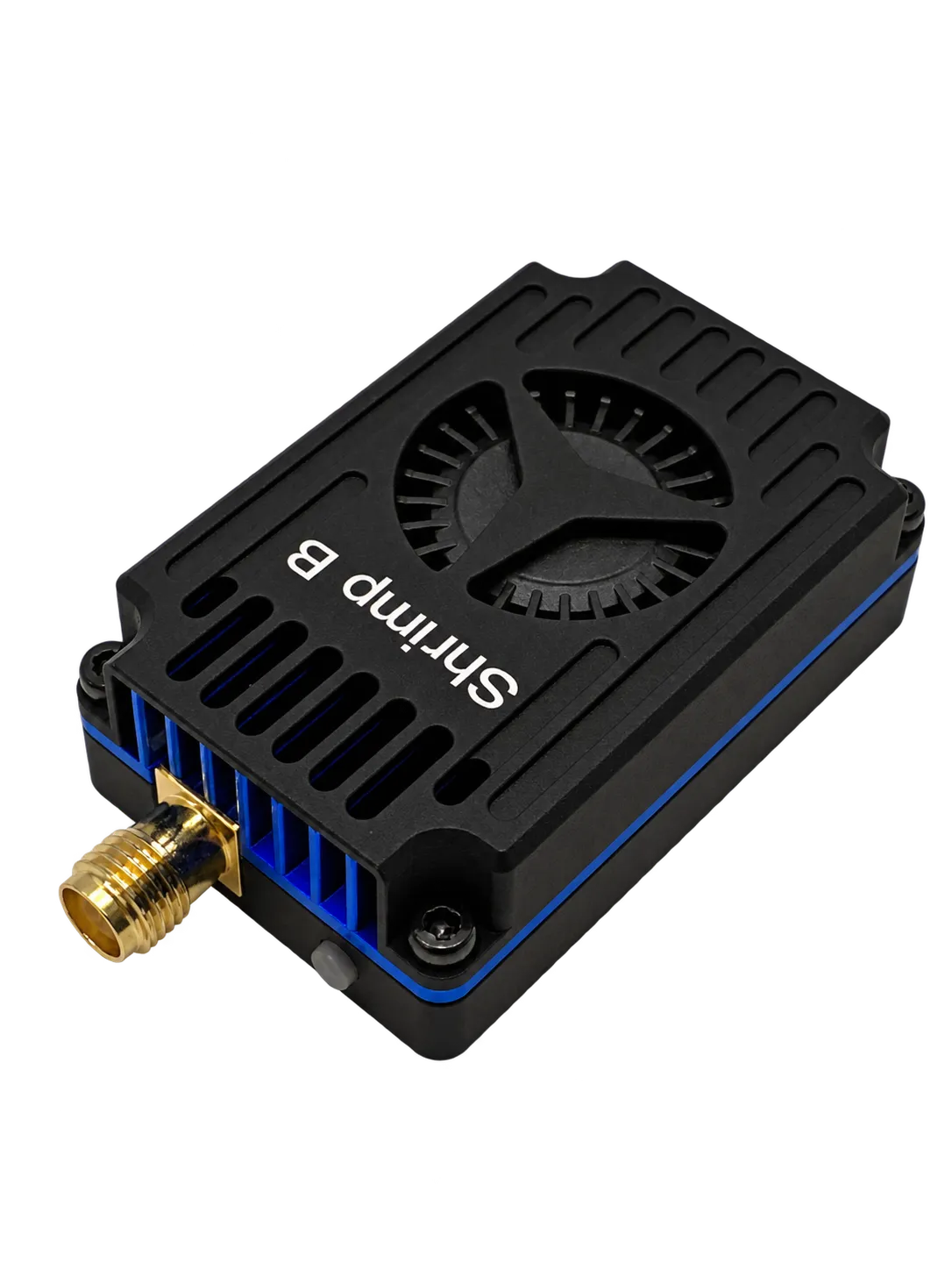

Shrimp B 4.2G 6W
Analog video transmitter
- Frequency range
- 3700–4320 MHz
- Output power
- 6 W
- Input voltage
- 7–30 V
Shrimp B
Shrimp B 4.3G 10W
Analog video transmitter
- Frequency range
- 3700–4320 MHz
- Output power
- 10 W
- Input voltage
- 12–36 V
Shrimp B
Shrimp B 5.8G 2.5W
Analog video transmitter
- Frequency range
- 4.9–5.8 GHz
- Output power
- 2.5 W
- Input voltage
- 7–36 V

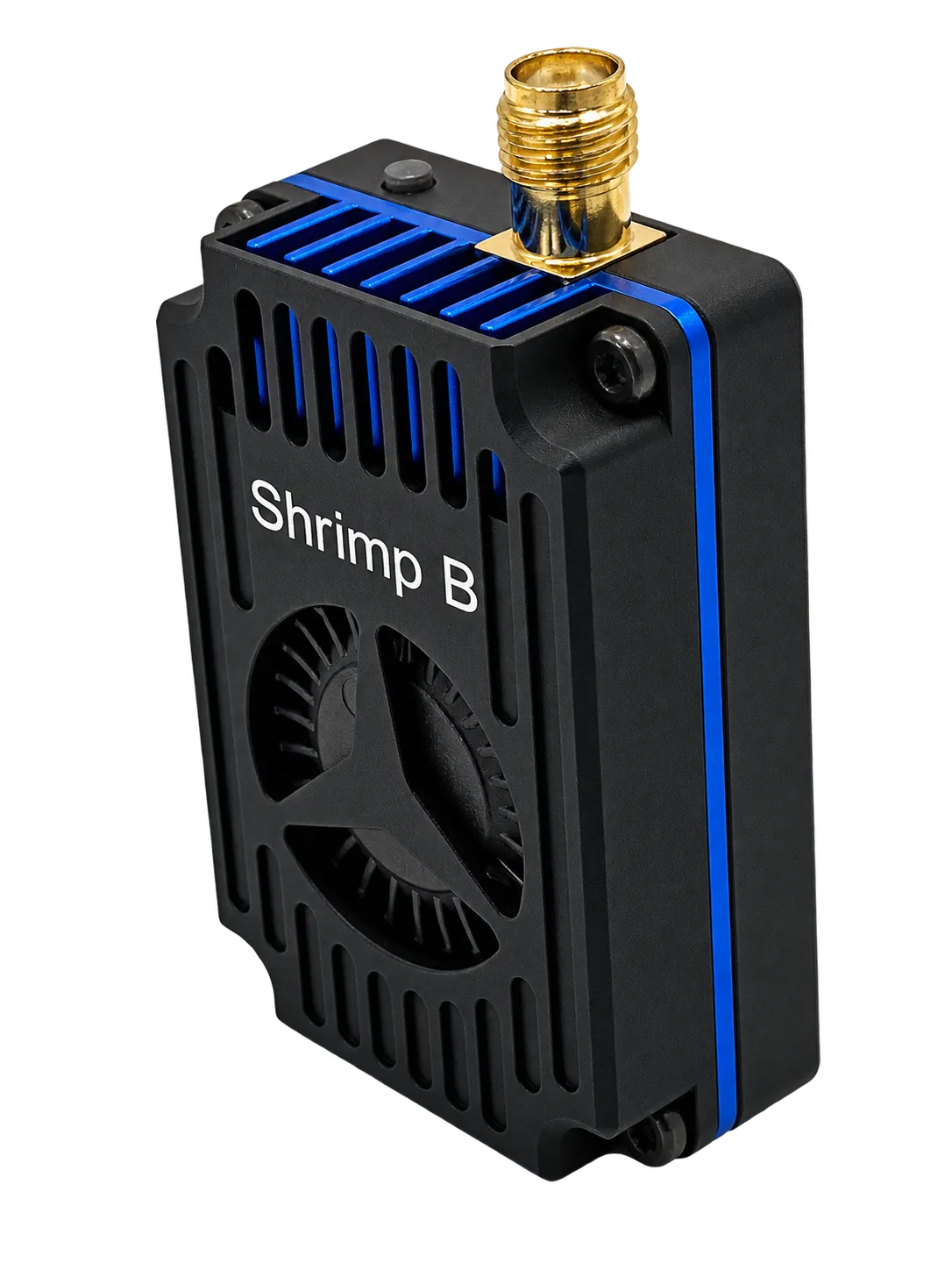

Shrimp B
Shrimp B 5.8G 5W
Analog video transmitter
- Frequency range
- 4875–6060 MHz
- Output power
- 5 W
- Input voltage
- 7–30 V

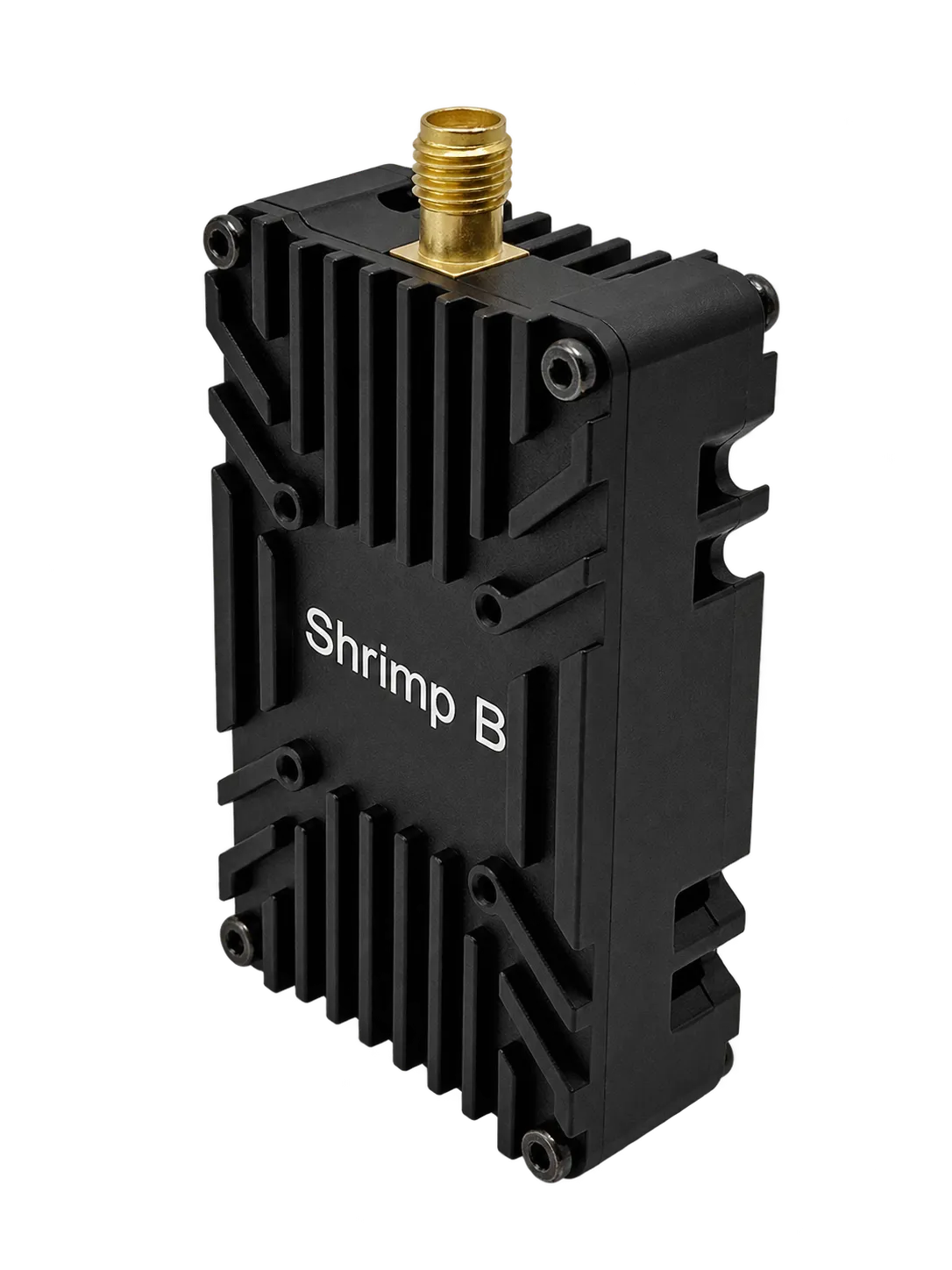

Shrimp B
Shrimp B 5.8G 10W
Analog video transmitter
- Frequency range
- 4990–5945 MHz
- Output power
- 10 W
- Input voltage
- 9–36 V
Frequency, power and installation checks
Use the available frequency information to narrow your selection. Check exact channel tables, input voltage and connections before pairing equipment.
Match the channel table
Confirm the exact frequencies supported by your receiver.
Check power and voltage
Review output settings and the available input supply.
Confirm fit and connections
Check antenna connector, dimensions and mounting space.
A shared band name alone does not confirm compatibility.
