Shrimp B 5.8G 10W FPV Video Transmitter
Shrimp B 5.8G 10W analog video transmitter with 80 channels across 4990–5945 MHz, up to 10 W output and a 9–36 V input supply.
- Frequency range
- 4990–5945 MHz
- Channel count
- 80 channels
- Output power
- 10 W
- Input voltage
- 9–36 V

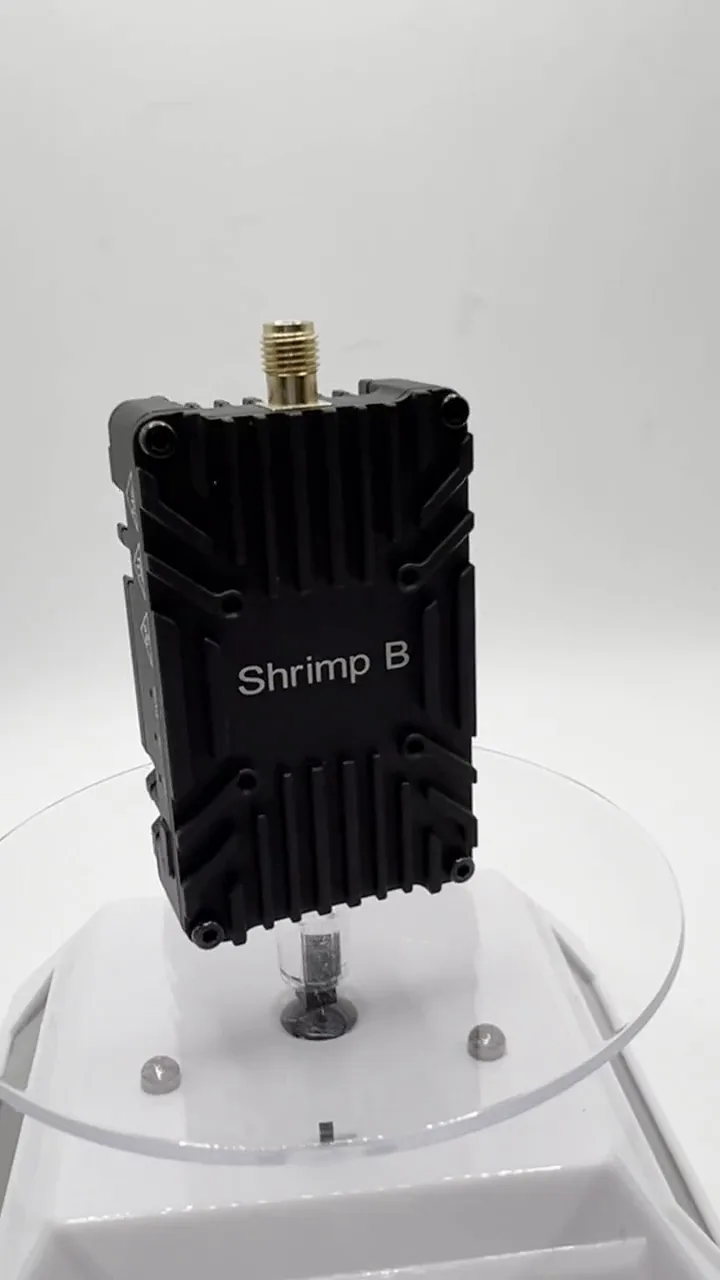

A closer look at Shrimp B 5.8G 10W

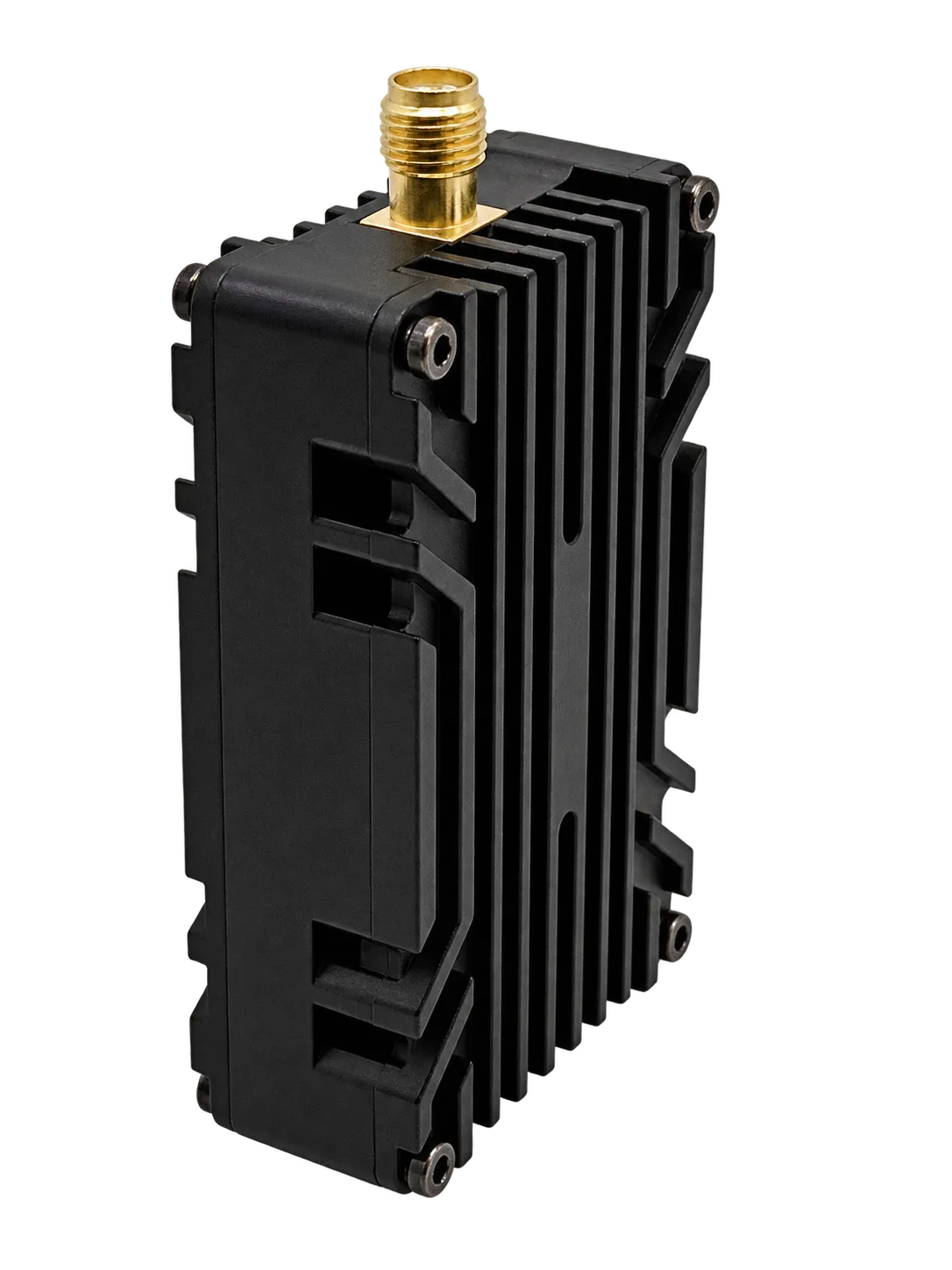

Views include: Finned housing and SMA connection; Rear cooling fins.
- SMA antenna connection
A closer look at the housing, cooling fins and connections.

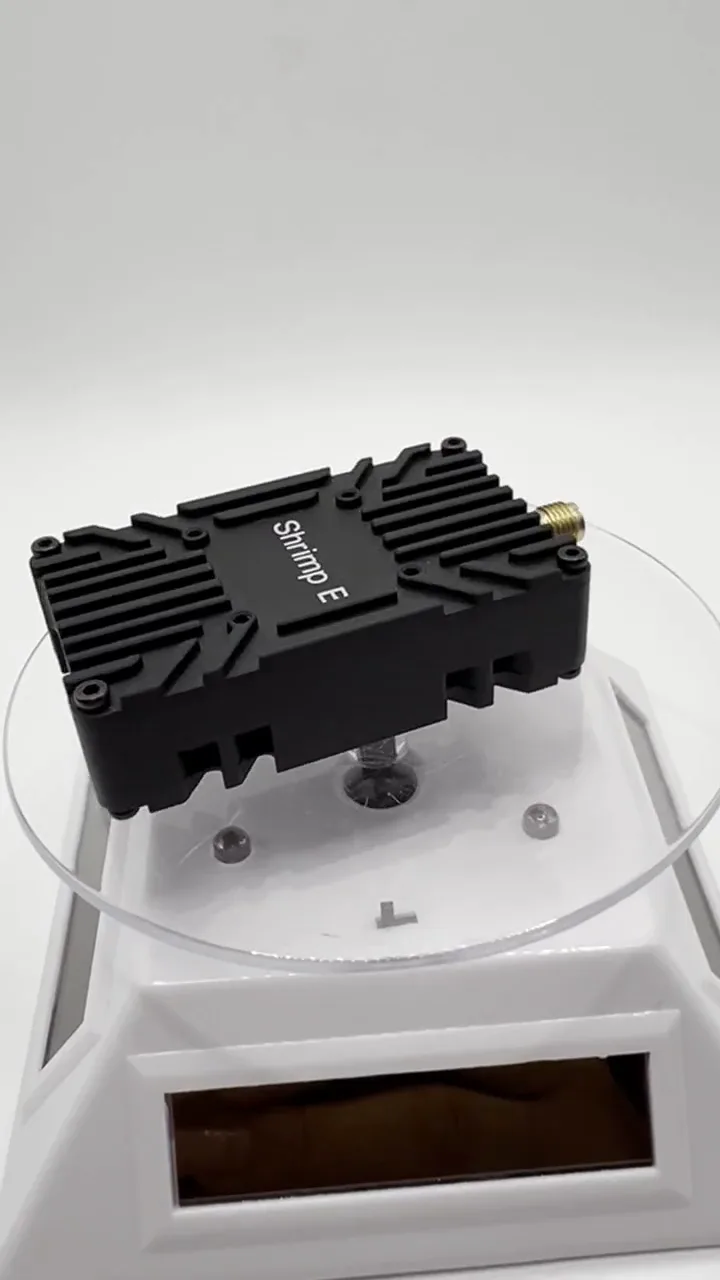

Front cooling fins and connectors in close-up.

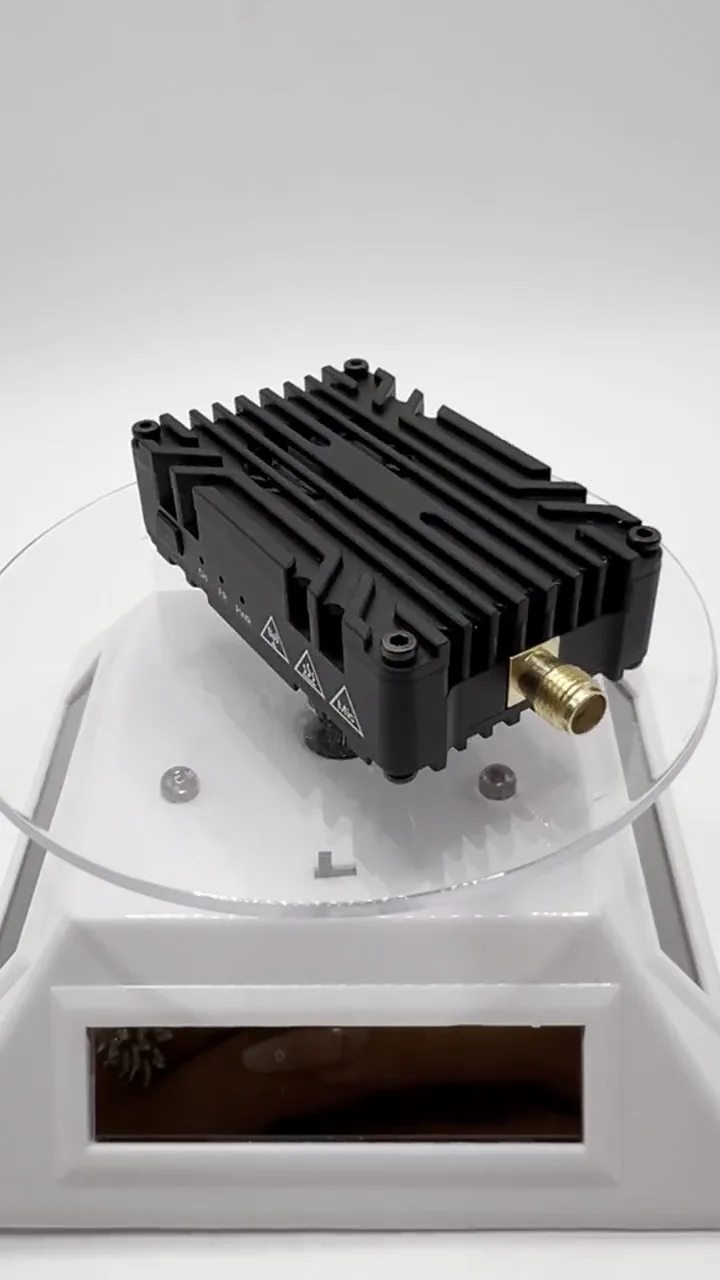

Rear cooling fins and side controls in close-up.
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
Shrimp B 5.8G 10W specifications
The key electrical specifications, together in one place.
| Product | Shrimp B 5.8G 10W |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4990–5945 MHz |
| Channel count | 80 channels |
| Output power | 10 W |
| Input voltage | 9–36 V |
| Selectable output levels | PIT / 1 W / 2.5 W / 5 W / 7.5 W / 10 W |
| Control protocol | IRC Tramp |
| Antenna connector | SMA, 50 Ω |
| Cable connector | SH1.0 6-pin |
| Dimensions | 66 × 37 × 16 mm |
| Weight | 48 g |
| Mounting hole spacing | 20 × 20 mm |
Additional electrical specifications
| Modulation | FM |
|---|---|
| Frequency control | PLL |
| Frequency precision | ±200 kHz (typical) |
| Video input level | 1 V ±0.2 Vp-p (typical) |
| Signal-to-noise ratio (±3 MHz) | >55 dBc |
| Operating temperature | −10 °C to +70 °C |
80-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| b | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| r | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

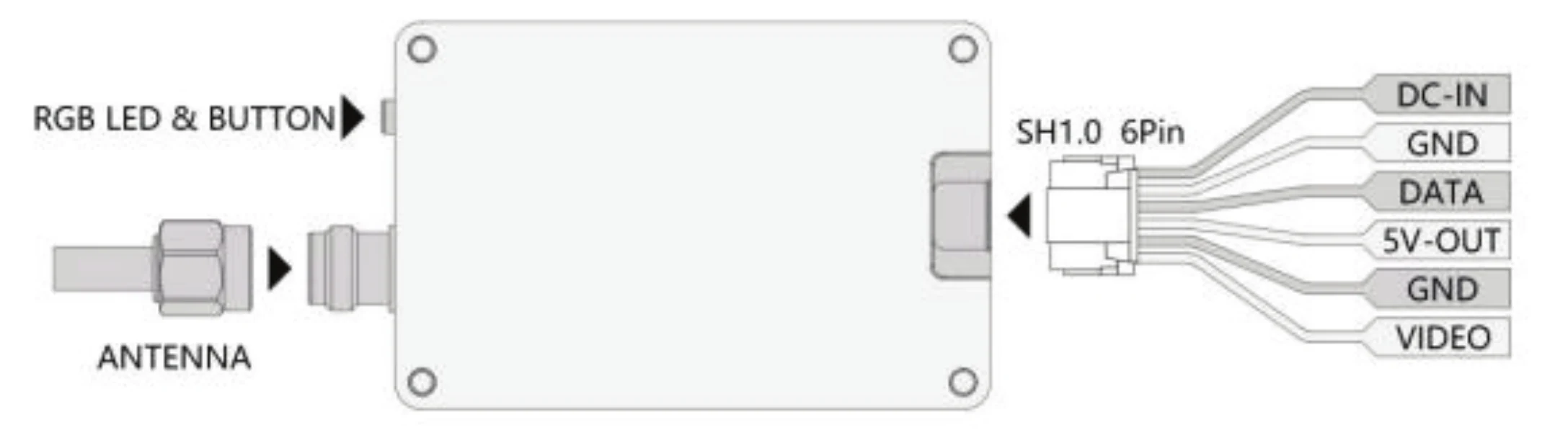

Connection reference
- DC-IN
- 9–36 V power input
- GND
- Ground (two connections)
- DATA
- IRC Tramp control connection
- 5V-OUT
- 5 V output — confirm camera voltage compatibility
- VIDEO
- Analog video input
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press KEY to enter channel setup. With the green LED flashing, use short presses to select the channel.
Choose a band
Hold KEY for 3 seconds to enter band setup. With the blue LED flashing, use short presses to select the band.
Set output power
Continue holding KEY for 3 seconds to enter power setup. With the red LED flashing, use short presses to select the output level.
Unlock frequencies and power levels
Hold KEY until the red PWR LED turns on, off, then on again; release the button. A flashing red LED indicates unlocked status; a constant red LED indicates locked status.
Switch PIT mode
Double-press KEY to switch PIT mode. The red PWR LED is off when PIT mode is on, and on when PIT mode is off.
Configure from the flight controller
When the IRC Tramp cable is connected, the controller takes over frequency and power adjustment and the button is disabled.
Connect the antenna before powering on. Mount the transmitter securely and allow cooling airflow.

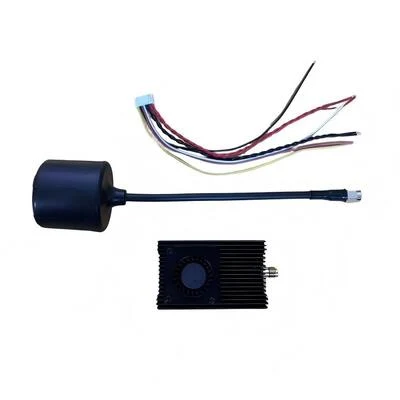

Antenna reference
Use this model-specific reference to plan the RF connection. Confirm the antenna specifications for your configuration.
Reference configuration only. Confirm the antenna model, frequency coverage, connector and supply scope for your order.
| Transmitter RF connector | SMA, 50 Ω |
|---|---|
| Transmitter operating range | 4990–5945 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 9–36 V input specification and connection polarity.
Installation and connections
Check the 66 × 37 × 16 mm housing, SMA connection and SH1.0 6-pin cable. Confirm the 20 × 20 mm mounting pattern. Leave room for airflow and secure mounting.
