AL7210 FPV Video Transmitter
AL7210 7.2G 10W analog video transmitter with 64 channels across 6110–7210 MHz, up to 10 W output and a 9–36 V input supply.
- Frequency range
- 6110–7210 MHz
- Channel count
- 64 channels
- Output power
- 10 W
- Input voltage
- 9–36 V
A closer look at AL7210 7.2G 10W
Views include: Cooling fan and housing; Backplate and connector labels.
- Cooling fan and finned housing
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AL7210 7.2G 10W specifications
The key electrical specifications, together in one place.
| Product | AL7210 7.2G 10W |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 6110–7210 MHz |
| Channel count | 64 channels |
| Output power | 10 W |
| Input voltage | 9–36 V |
| Control protocol | IRC Tramp |
| Antenna connector | SMA, 50 Ω |
| Dimensions | 66 × 37 × 16 mm |
| Mounting hole spacing | 20 × 20 mm |
| Weight | 48 g |
| Selectable output levels | PIT / 1 / 2.5 / 5 / 7.5 / 10 W |
Additional electrical specifications
| Modulation | FM |
|---|---|
| Frequency control | PLL |
| Frequency precision | ±200 kHz (typical) |
| Video input level | 1 V ±0.2 Vp-p (typical) |
| Signal-to-noise ratio (±3 MHz) | >55 dBc |
| Operating temperature | −10 °C to +70 °C |
64-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 6110 | 6130 | 6150 | 6170 | 6190 | 6210 | 6230 | 6250 |
| b | 6270 | 6290 | 6310 | 6330 | 6350 | 6370 | 6390 | 6410 |
| E | 6430 | 6450 | 6470 | 6490 | 6510 | 6530 | 6550 | 6570 |
| F | 6590 | 6610 | 6630 | 6650 | 6670 | 6690 | 6710 | 6730 |
| r | 6750 | 6770 | 6790 | 6810 | 6830 | 6850 | 6870 | 6890 |
| P | 6910 | 6930 | 6950 | 6970 | 6990 | 7010 | 7030 | 7050 |
| H | 7070 | 7090 | 7110 | 7130 | 7150 | 7170 | 7190 | 7210 |
| U | 6115 | 6265 | 6425 | 6585 | 6745 | 6905 | 7065 | 7185 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.
Connection reference
- DC-IN
- 9–36 V power input
- GND
- Ground (two connections)
- DATA
- IRC Tramp control connection
- 5V-OUT
- 5 V camera output
- VIDEO
- Analog video input
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press to enter channel setup. With the green LED flashing, select a channel using short presses.
Choose a band
Hold the button for 3 seconds to enter band setup. With the blue LED flashing, select the band using short presses.
Set output power
Continue holding to enter power setup. With the red LED flashing, use short presses to select the power level. When IRC Tramp is connected, the controller takes over channel and power adjustment.
Connect the antenna before use. Confirm the selected power setting and allow cooling airflow.
Antenna reference

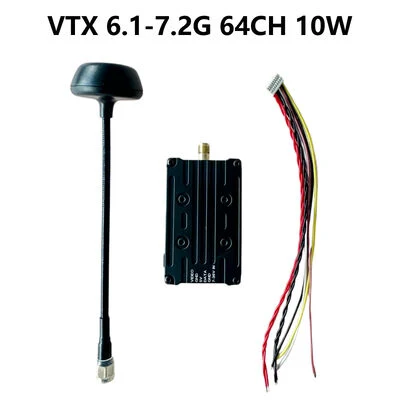

Use this model-specific reference to plan the RF connection. Confirm the antenna specifications for your configuration.
Reference configuration only. Confirm the antenna model, frequency coverage, connector and supply scope for your order.
| Transmitter RF connector | SMA, 50 Ω |
|---|---|
| Transmitter operating range | 6110–7210 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 9–36 V input specification and connection polarity.
Installation and connections
Allow space for the 66 × 37 × 16 mm housing and 20 × 20 mm mounting pattern. Confirm the cable labels and keep airflow around the fan.
