AKK Alpha 16 FPV Video Transmitter
AKK ALPHA 16 analog video transmitter with 96 channels across 4900–6060 MHz, selectable output up to 16 W and SmartAudio control. Confirm the hardware version and its input rating before installation.
- Frequency range
- 4900–6060 MHz
- Channel count
- 96 channels
- Output power
- 16 W
- Input voltage
- 12–36 V
A closer look at AKK ALPHA 16
Views include: Housing, display and SMA connector; Product, dual input wires and antenna pigtail.
- Cooling fan and heat sink
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AKK ALPHA 16 specifications
The key electrical specifications, together in one place.
| Product | AKK ALPHA 16 |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4900–6060 MHz |
| Channel count | 96 channels |
| Output power | 16 W |
| Input voltage | 12–36 V |
| Control protocol | SmartAudio |
| Antenna connector | SMA |
| Cable connector | JST 6-pin |
| Dimensions | 68 × 36 × 15 mm |
| Mounting hole spacing | 30.5 × 30.5 mm |
| Weight (excluding antenna) | 56 g |
| Camera supply | 5 V; under 500 mA |
| Microphone | Not supported |
| Selectable output levels | 25 mW / 1 / 3 / 5 / 8 / 16 W |
96-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| b | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| E | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| F | 5129 | 5159 | 5189 | 5219 | 5249 | 5279 | 5309 | 5339 |
| r | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| P | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| L | 4900 | 4940 | 4921 | 4958 | 4995 | 5032 | 5069 | 5099 |
| U | 5960 | 5980 | 6000 | 6020 | 6030 | 6040 | 6050 | 6060 |
| O | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| H | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| T | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| n | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.
Connection reference

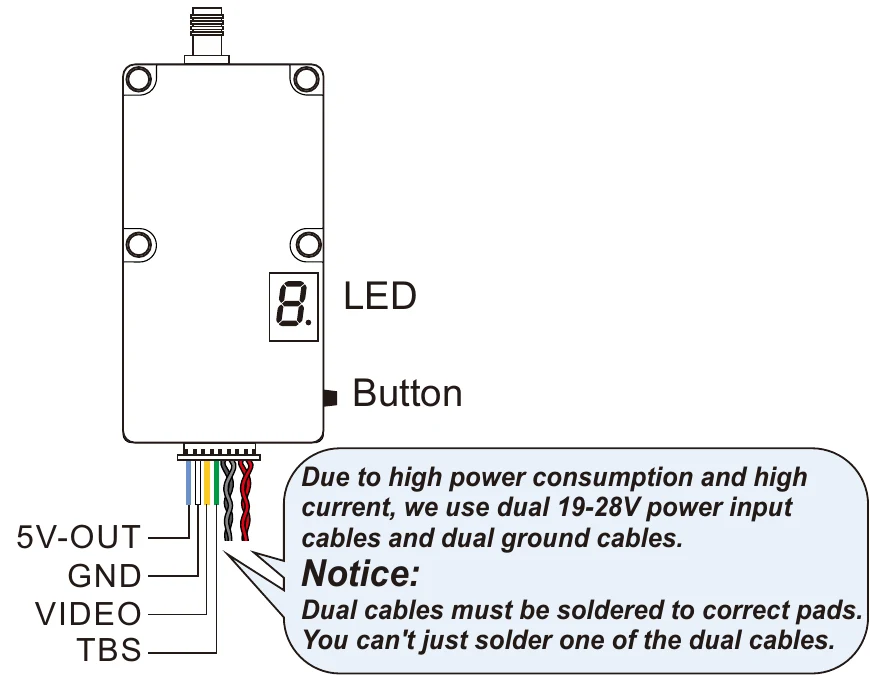

- Dual power input
- Use both input cables and both ground cables. Confirm the input rating printed on the supplied hardware and matching manual before connecting.
- 5V-OUT
- Camera supply — under 500 mA; confirm the camera voltage rating
- GND
- Ground
- VIDEO
- Analog video input
- TBS
- SmartAudio control connection
Use both input cables and both ground cables as shown in the connection reference. Check connector polarity before installation.
Button operation
Choose a channel
Short-press the button to change among eight channels.
Choose a band
Hold for 2 seconds until a band letter flashes, then short-press to select among 12 bands.
Set output power
Hold for 3 seconds until a number flashes quickly, then short-press to choose among six output levels.
Read the display
After setting, the display flashes the band letter, channel number and power level twice. SmartAudio supports OSD configuration and PIT mode. The power amplifier starts after a 3-second delay.
Connect the antenna before powering on. Keep the heat sink and fan fitted and provide airflow around the housing. Use both input and ground cable pairs as specified by the matching manual.
Antenna connection reference

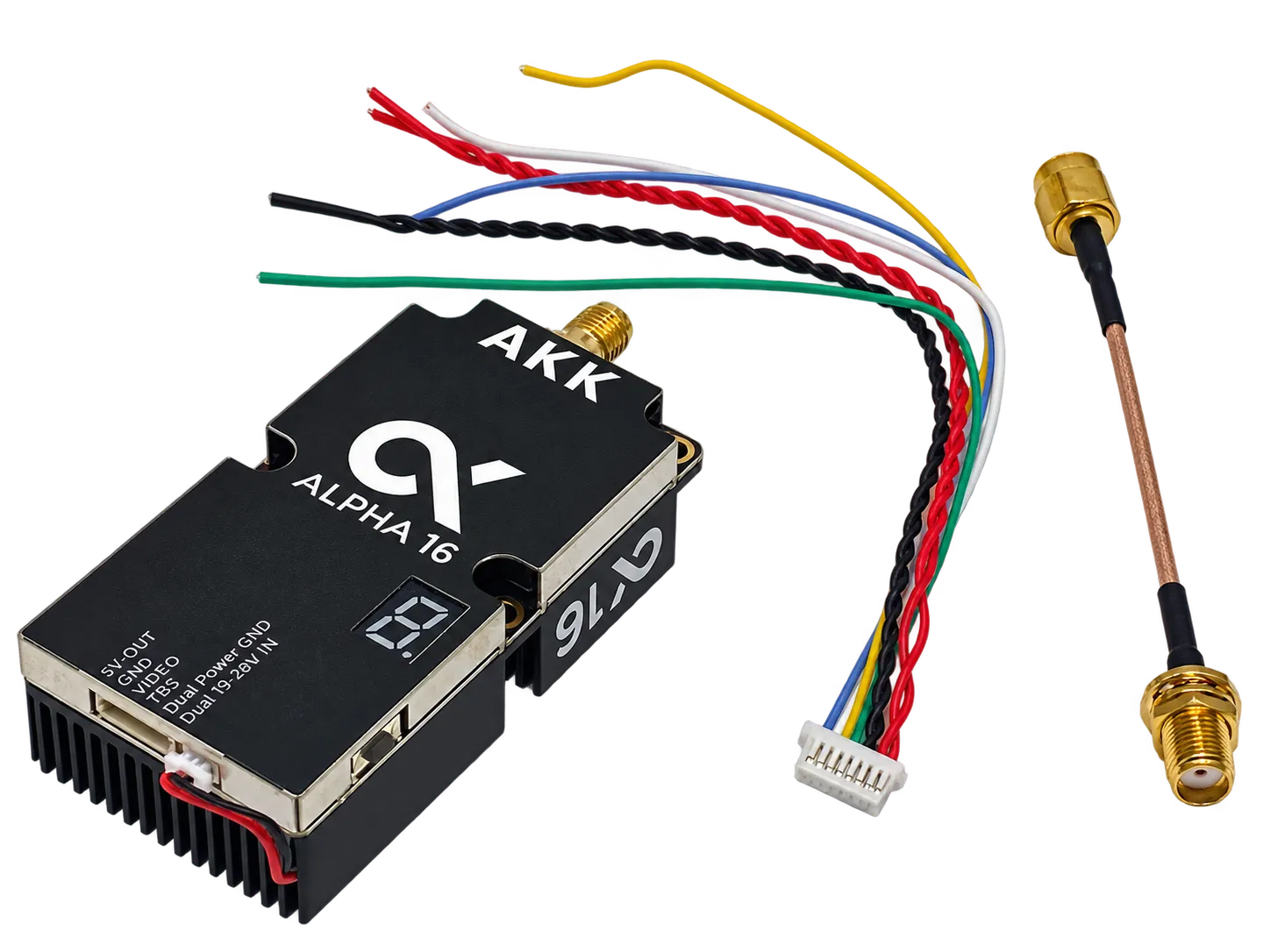

The product reference shows the RF pigtail used for the antenna connection. Select a compatible antenna for your operating band.
Confirm pigtail connectors and antenna availability for your order.
| Transmitter RF connector | SMA |
|---|---|
| Transmitter operating range | 4900–6060 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the supplied hardware version, input rating and polarity. The matching manual requires both input and ground cable pairs.
Installation and connections
Check the 68 × 36 × 15 mm housing and 30.5 × 30.5 mm mounting pattern. Keep airflow around the heat sink and fan.
Enquire about AKK ALPHA 16.
Tell us your quantity and setup requirements. We will confirm pricing and delivery options.
