AKK Alpha 5 FPV Video Transmitter
AKK ALPHA 5 analog video transmitter with 80 channels across 4990–5945 MHz, up to 5 W output and a 12–28 V input supply.
- Frequency range
- 4990–5945 MHz
- Channel count
- 80 channels
- Output power
- 5 W
- Input voltage
- 12–28 V
A closer look at AKK ALPHA 5
Views include: Product view; Alternative product view; Additional product view.

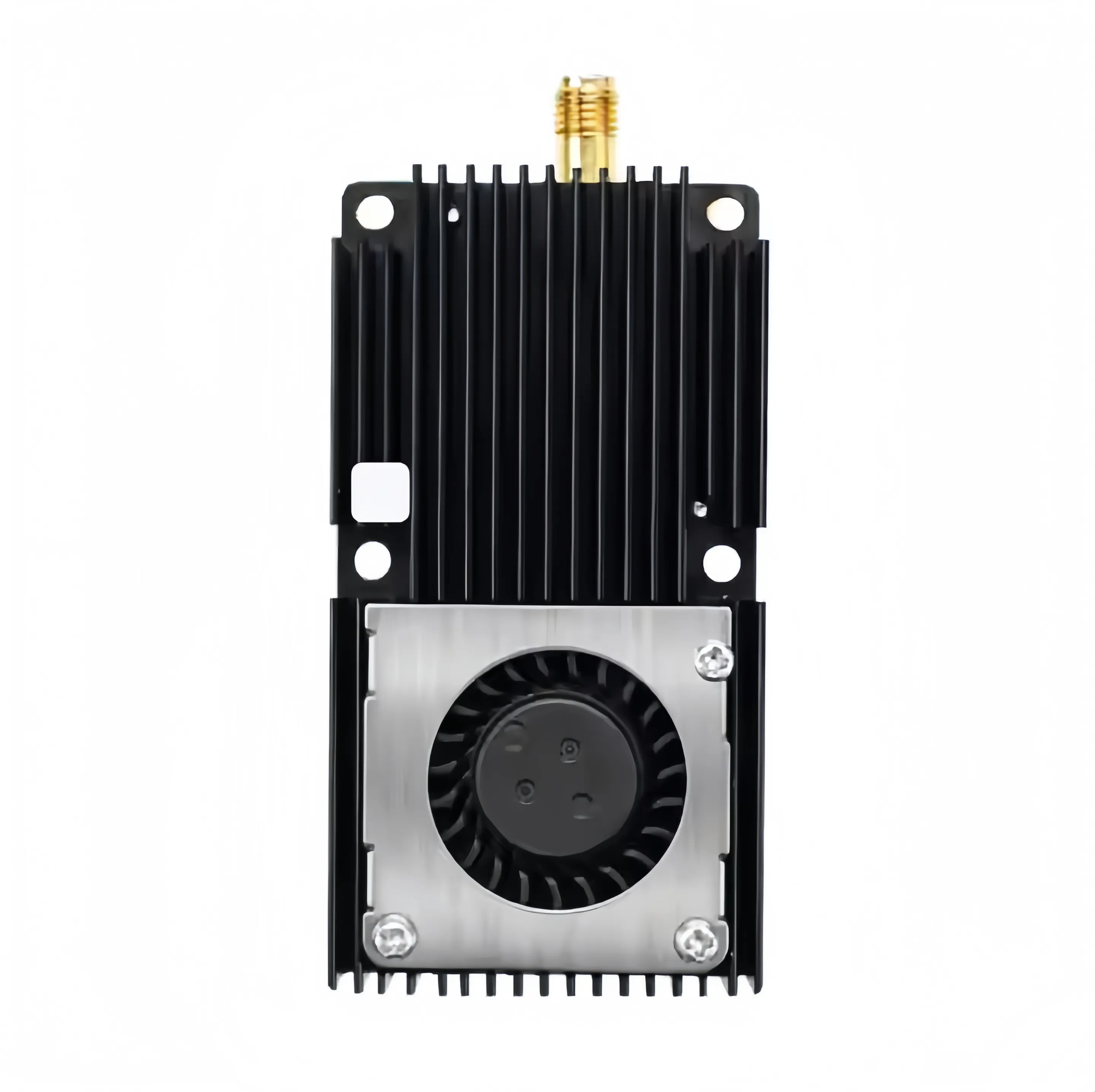

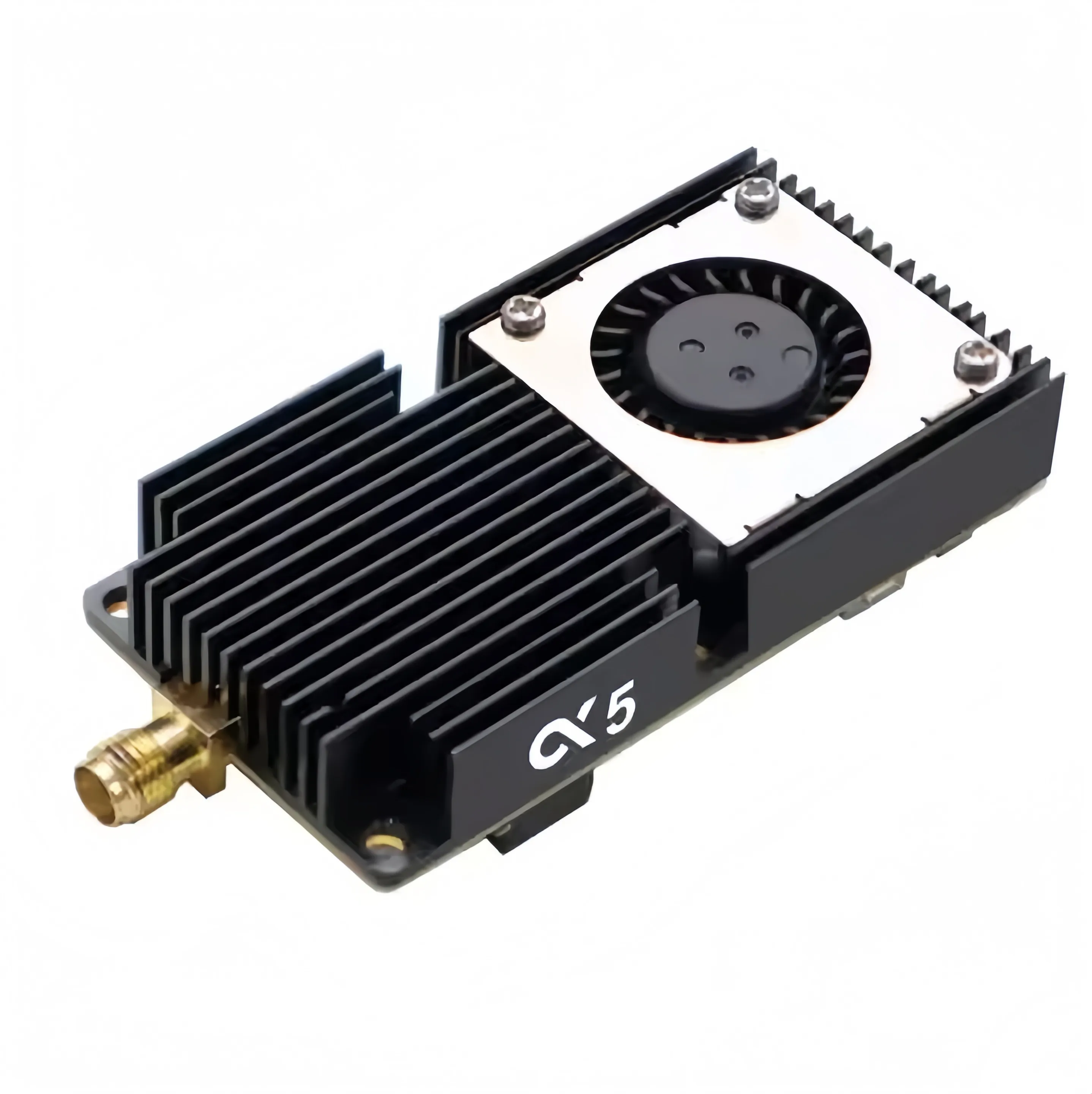

- Built-in cooling fan and heat sink
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AKK ALPHA 5 specifications
The key electrical specifications, together in one place.
| Product | AKK ALPHA 5 |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4990–5945 MHz |
| Channel count | 80 channels |
| Output power | 5 W |
| Input voltage | 12–28 V |
| Control protocol | SmartAudio |
| Antenna connector | SMA |
| Cable connector | JST 8-pin; dual input power and dual ground |
| Mounting hole spacing | 30.5 × 30.5 mm |
| Camera supply | 5 V |
| Selectable output levels | 25 mW / 1 / 2 / 3 / 5 W |
Additional electrical specifications
| Power consumption (12 V) | 1.7 A |
|---|---|
| Power consumption (28 V) | 800 mA |
80-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| b | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| r | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| P | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.
Connection reference
- 5V-OUT
- 5 V camera output
- GND
- Ground
- VIDEO
- Analog video input
- TBS
- SmartAudio control connection
- Power input
- Use both 12–28 V input cables and both ground cables. Identify the exact connections from the supplied unit and manual before soldering.

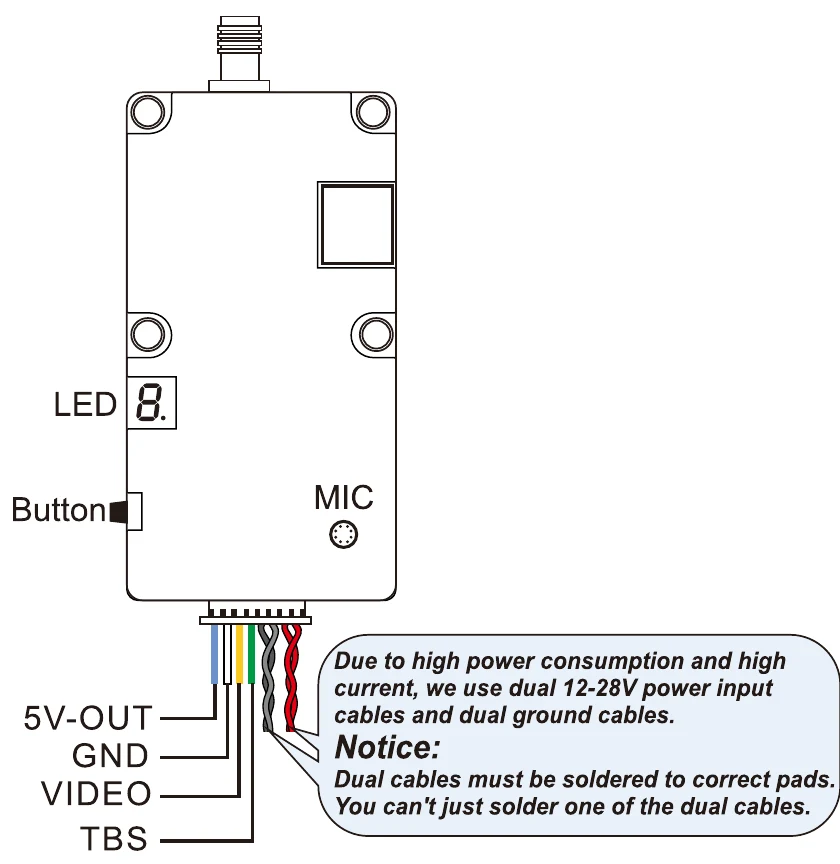

Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press the button to cycle through channels 1–8.
Choose a band
Hold the button for 3 seconds until the band letter flashes, then short-press to select a band.
Set output power
Hold the button for 6 seconds until the power number flashes quickly, then short-press to select an output level.
Connect the antenna connector and antenna before powering on. Retain the heat sink and allow airflow for cooling.
Antenna reference
Use this model-specific reference to plan the RF connection. Confirm the antenna specifications for your configuration.

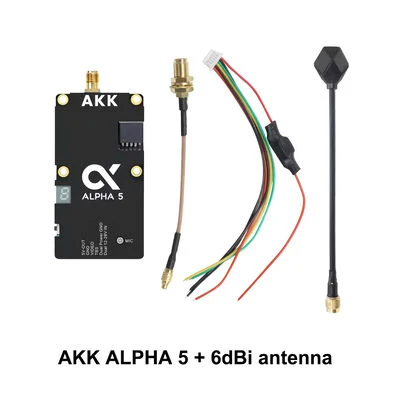

The pictured antenna is a 6 dBi reference configuration. Confirm antenna availability and included accessories when ordering.
| Transmitter RF connector | SMA |
|---|---|
| Transmitter operating range | 4990–5945 MHz |
| Reference antenna gain | 6 dBi (pictured reference antenna) |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 12–28 V input specification and connection polarity.
Installation and connections
Allow airflow around the cooling fan and heat sink. Check the 30.5 × 30.5 mm mounting pattern and solder both input and ground cable pairs correctly.
