PEAK THOR T35 — Product and cable

Video transmission

PEAK T35 FPV Video Transmitter

PEAK THOR T35 analog video transmitter with 64 channels across 3000–4938 MHz, up to 3 W output and a 9–28 V input supply.

Frequency range
3000–4938 MHz
Channel count
64 channels
Output power
3 W
Input voltage
9–28 V

A closer look at PEAK THOR T35

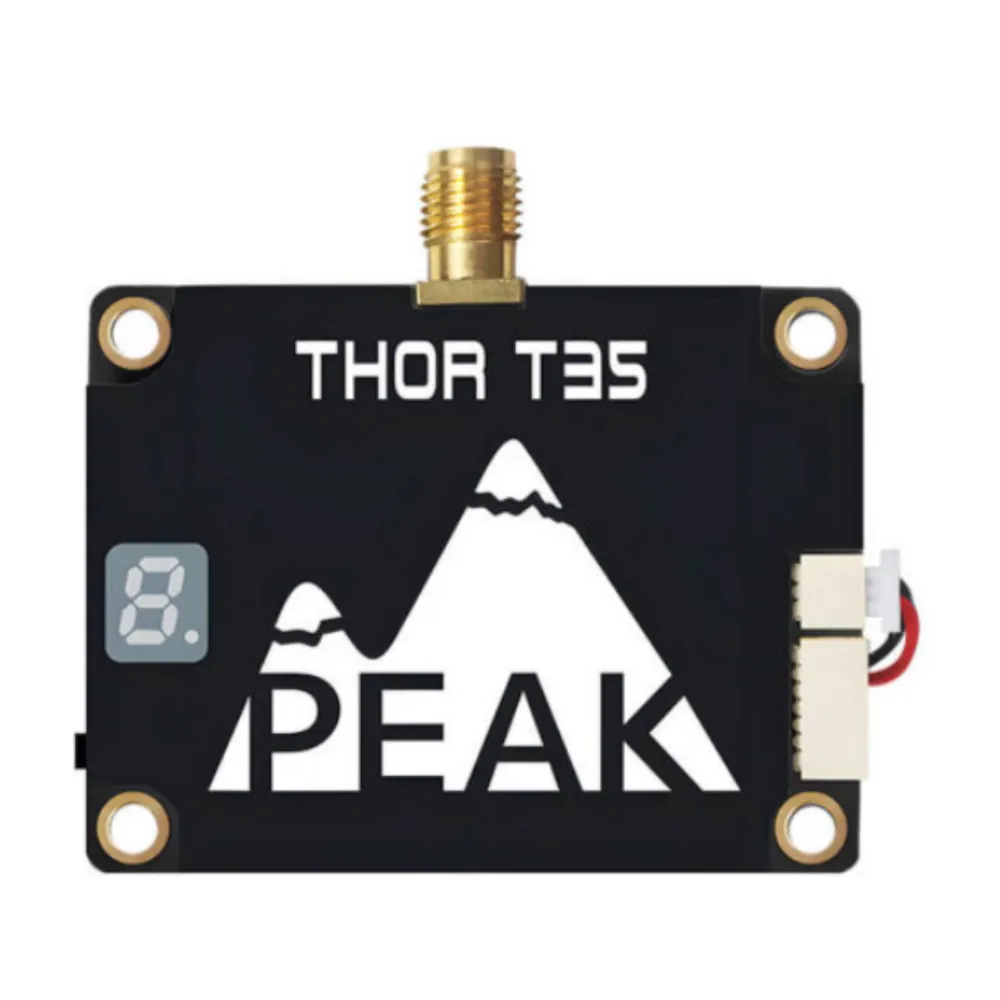

Views include: Product and cable; Model label and connections.

  • Built-in cooling fan
  • SMA antenna connection

Accessories shown are for reference. Confirm the supplied configuration when enquiring.

PEAK THOR T35 specifications

The key electrical specifications, together in one place.

ProductPEAK THOR T35
TypeAnalog video transmitter
Frequency range3000–4938 MHz
Channel count64 channels
Output power3 W
Input voltage9–28 V
Control protocolSmartAudio
Antenna connectorSMA
Cable connectorJST 6-pin
Dimensions (width × depth)47 × 36 mm
Mounting hole spacing41.5 × 30.5 mm
Weight (excluding antenna)34 g
Camera supply5 V; under 350 mA
Selectable output levels25 / 200 / 500 / 1000 / 3000 mW
64-channel frequency table

Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.

BandCH1CH2CH3CH4CH5CH6CH7CH8
A30003030306030903120315031803210
b32403270330033303370340034303470
E35003530356035903620365036803710
F37403770380038303860389039203950
r39804010404040704100413041604190
P42204250428043104340437044004430
H44704500453045604590462046504680
U47104740477048124839487249114938

Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.

Connect. Configure. Check.

Check the connection labels and the matching manual before installation.

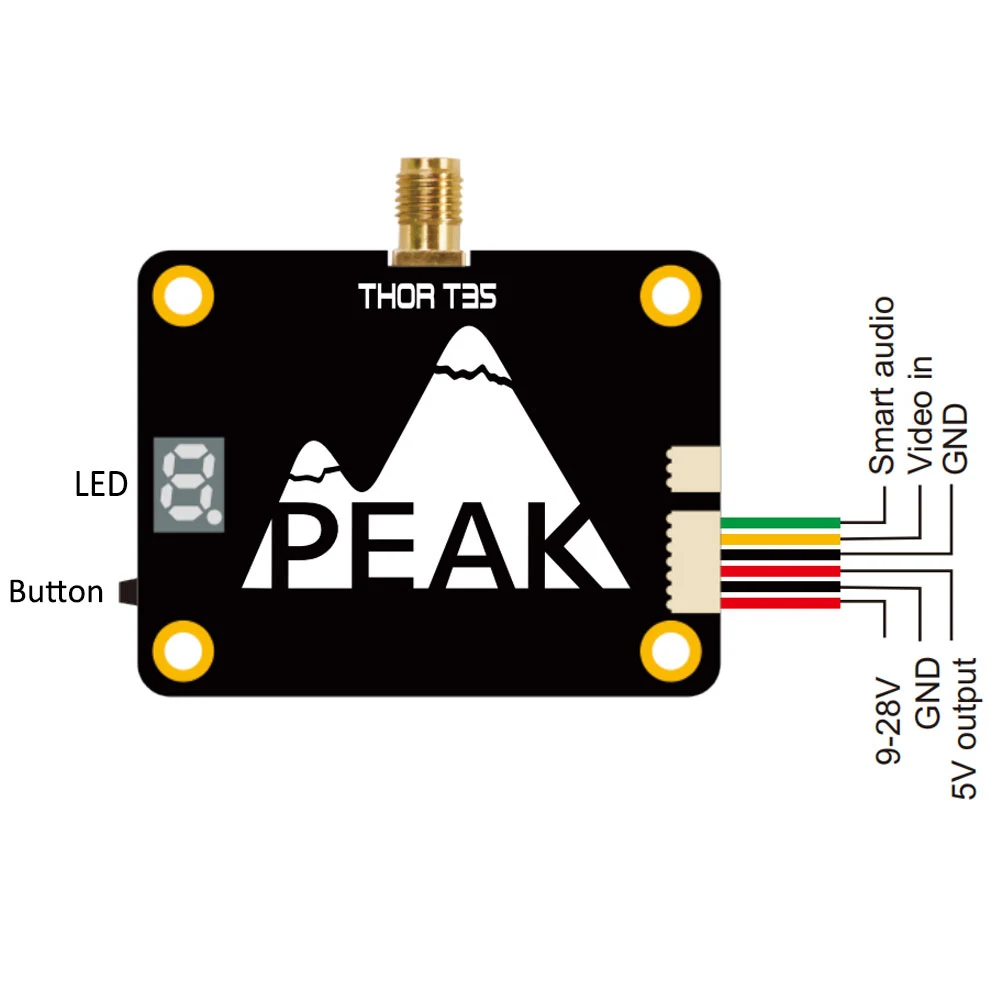

PEAK THOR T35 — connection diagram
Connection diagram. Check connector orientation and polarity before wiring.

Connection reference

SmartAudio
Flight controller control connection
Video in
Analog video input
GND
Ground (two connections)
DC input
9–28 V power input
Camera output
5 V; under 350 mA output — verify the camera voltage rating

Identify the connections from the diagram and labels below. Check polarity before connecting power.

Button operation

  1. Choose a channel

    Short-press the button to change among eight channels.

  2. Choose a band

    Hold the button for 2 seconds until the band indicator flashes, then short-press to select the band.

  3. Set output power

    Hold the button for 3 seconds until the power indicator flashes quickly, then short-press to select an output level.

Connect the antenna before powering on. Keep the cooling fan fitted, allow airflow and take care around a hot housing.

Antenna connection reference

The product reference shows the RF pigtail used for the antenna connection. Select a compatible antenna for your operating band.

PEAK THOR T35 — RF pigtail reference
RF pigtail and transmitter reference; the pigtail is not a radiating antenna.

Confirm pigtail connectors and antenna availability for your order.

Transmitter RF connectorSMA
Transmitter operating range3000–4938 MHz

Connection and selection

Match the operating frequency
Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.

Check your setup before ordering.

Check frequency matching, the power supply and installation connections before ordering.

  1. Channel matching

    Compare the channel table with your receiver before pairing.

  2. Power supply

    Confirm the 9–28 V input specification and connection polarity.

  3. Installation and connections

    Check the 47 × 36 mm housing, 41.5 × 30.5 mm mounting pattern and cable connector. Keep space for fan airflow.
