PEAK T67 FPV Video Transmitter
PEAK THOR T67 analog video transmitter with 64 channels across 6110–7210 MHz, up to 3 W output and a 9–28 V input supply.
- Frequency range
- 6110–7210 MHz
- Channel count
- 64 channels
- Output power
- 3 W
- Input voltage
- 9–28 V
A closer look at PEAK THOR T67

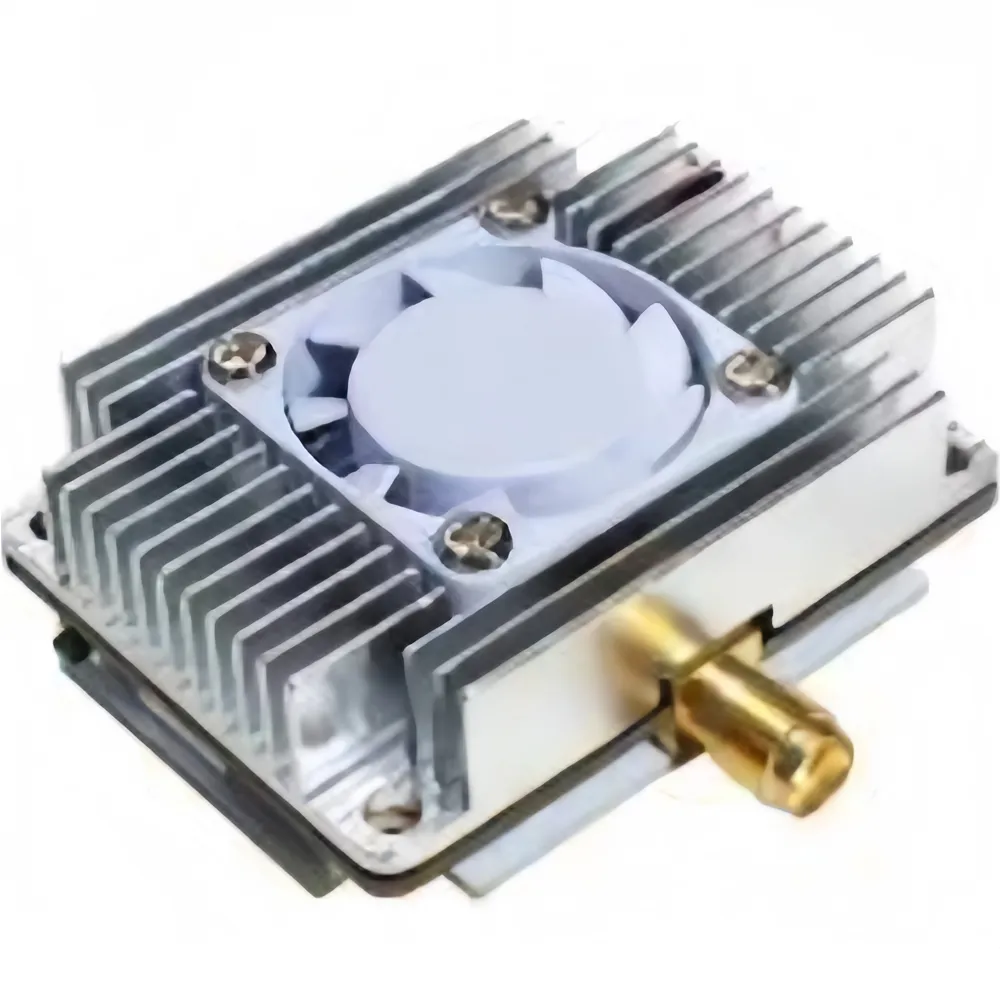

Views include: Display, connectors and front plate; Cooling fan and heat sink.
- Built-in cooling fan
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
PEAK THOR T67 specifications
The key electrical specifications, together in one place.
| Product | PEAK THOR T67 |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 6110–7210 MHz |
| Channel count | 64 channels |
| Output power | 3 W |
| Input voltage | 9–28 V |
| Control protocol | SmartAudio |
| Antenna connector | SMA |
| Cable connector | JST 6-pin |
| Dimensions (width × depth) | 47 × 36 mm |
| Mounting hole spacing | 41.5 × 30.5 mm |
| Weight (excluding antenna) | 34 g |
| Camera supply | 5 V; under 350 mA |
| Selectable output levels | 25 / 200 / 500 / 1000 / 3000 mW |
64-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 6110 | 6130 | 6150 | 6170 | 6190 | 6210 | 6230 | 6250 |
| b | 6270 | 6290 | 6310 | 6330 | 6350 | 6370 | 6390 | 6410 |
| E | 6430 | 6450 | 6470 | 6490 | 6510 | 6530 | 6550 | 6570 |
| F | 6590 | 6610 | 6630 | 6650 | 6670 | 6690 | 6710 | 6730 |
| r | 6750 | 6770 | 6790 | 6810 | 6830 | 6850 | 6870 | 6890 |
| P | 6910 | 6930 | 6950 | 6970 | 6990 | 7010 | 7030 | 7050 |
| H | 7070 | 7090 | 7110 | 7130 | 7150 | 7170 | 7190 | 7210 |
| U | 6115 | 6265 | 6425 | 6585 | 6745 | 6905 | 7065 | 7185 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.
Connection reference
- SmartAudio
- Flight controller control connection
- Video in
- Analog video input
- GND
- Ground (two connections)
- DC input
- 9–28 V input
- Camera output
- 5 V, under 350 mA — confirm camera voltage rating

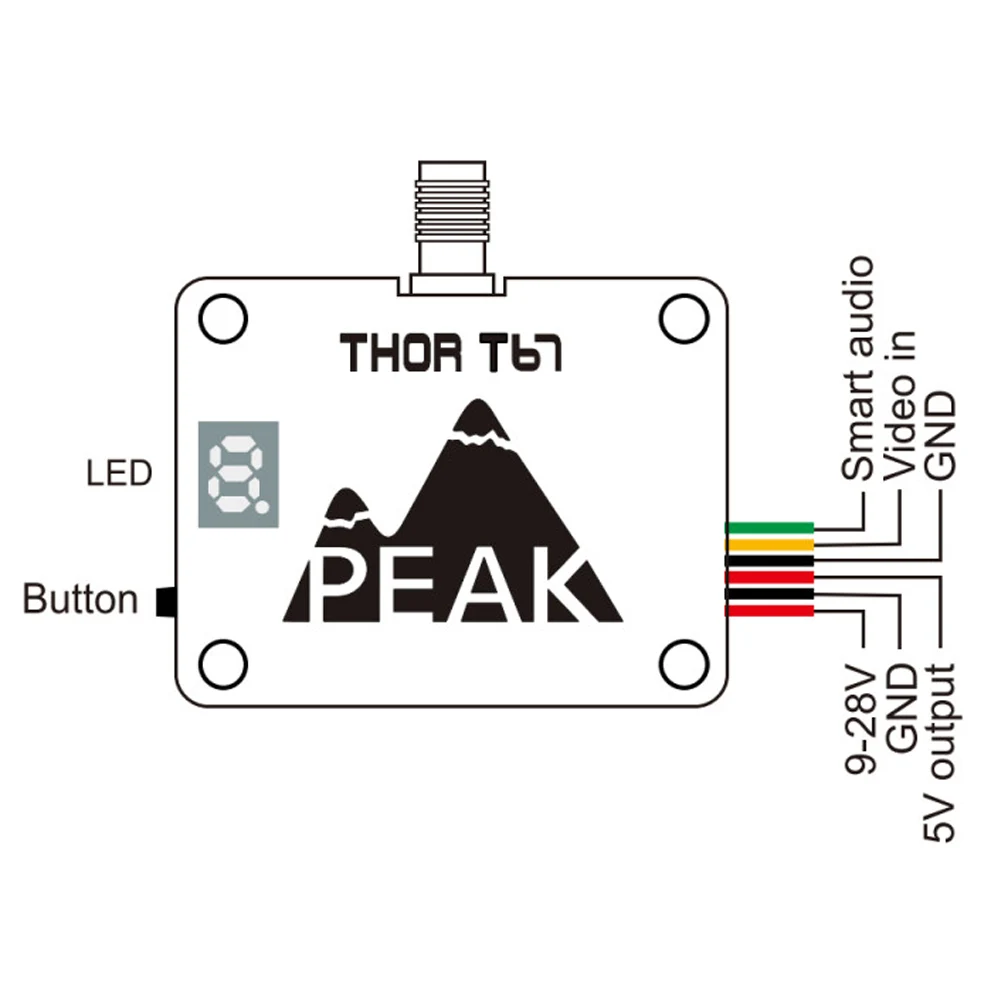

Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press the button to change among eight channels.
Choose a band
Hold for 2 seconds until a band letter flashes, then short-press to select among eight bands.
Set output power
Hold for 3 seconds until a number flashes quickly, then short-press to choose among five power levels.
Read the display
After setting, the band letter, channel number and power level flash twice. SmartAudio supports OSD configuration and PIT mode.
Connect the antenna before powering on. Keep the cooling fan fitted, provide airflow and take care around the hot housing.
Antenna connection reference

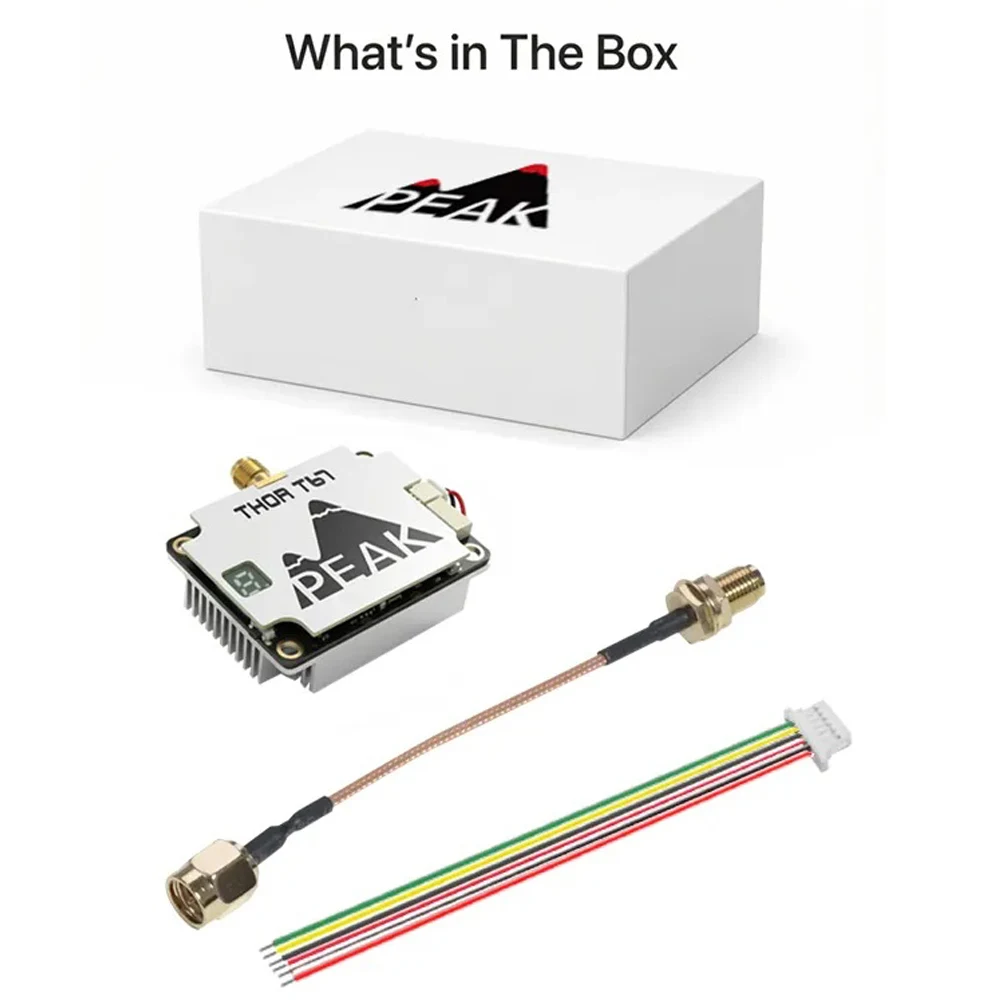

The reference kit shows an RF pigtail. Select a compatible antenna for your operating band.
Reference configuration only. Confirm the antenna model, frequency coverage, connector and supply scope for your order.
| Transmitter RF connector | SMA |
|---|---|
| Transmitter operating range | 6110–7210 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 9–28 V input specification and connection polarity.
Installation and connections
Check the 47 × 36 mm housing, 41.5 × 30.5 mm mounting pattern and JST cable. Leave room for cooling airflow.
