PEAK T78 FPV Video Transmitter
PEAK THOR T78 analog video transmitter with 40 channels across 7200–8000 MHz, up to 3 W output and a 14–28 V input supply.
- Frequency range
- 7200–8000 MHz
- Channel count
- 40 channels
- Output power
- 3 W
- Input voltage
- 14–28 V
A closer look at PEAK THOR T78

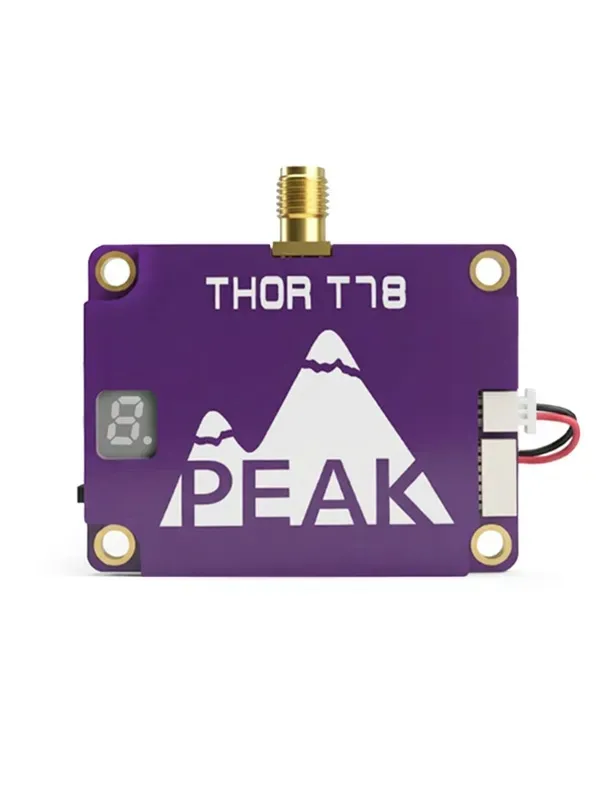

Views include: Product view; Model label and connections.
- Built-in cooling fan
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
PEAK THOR T78 specifications
The key electrical specifications, together in one place.
| Product | PEAK THOR T78 |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 7200–8000 MHz |
| Channel count | 40 channels |
| Output power | 3 W |
| Input voltage | 14–28 V |
| Control protocol | SmartAudio |
| Antenna connector | SMA |
| Cable connector | JST 6-pin |
| Dimensions (width × depth) | 47 × 36 mm |
| Mounting hole spacing | 41.5 × 30.5 mm |
| Weight (excluding antenna) | 34 g |
| Camera supply | 5 V; under 350 mA |
| Selectable output levels | 25 / 200 / 500 / 1000 / 3000 mW |
40-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 7200 | 7220 | 7240 | 7260 | 7280 | 7300 | 7320 | 7340 |
| b | 7360 | 7380 | 7400 | 7420 | 7440 | 7460 | 7480 | 7500 |
| E | 7520 | 7540 | 7560 | 7580 | 7600 | 7620 | 7640 | 7680 |
| F | 7700 | 7720 | 7740 | 7760 | 7780 | 7800 | 7820 | 7840 |
| r | 7860 | 7880 | 7900 | 7920 | 7940 | 7960 | 7980 | 8000 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

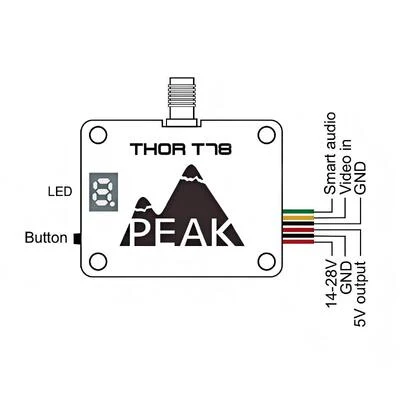

Connection reference
- SmartAudio
- Flight controller control connection
- Video in
- Analog video input
- GND
- Ground (two connections)
- DC input
- 14–28 V power input
- Camera output
- 5 V; under 350 mA output — verify the camera voltage rating
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press the button to change among eight channels.
Choose a band
Hold the button for 2 seconds until the band indicator flashes, then short-press to select the band.
Set output power
Hold the button for 3 seconds until the power indicator flashes quickly, then short-press to select an output level.
Connect the antenna before powering on. Keep the cooling fan fitted, allow airflow and take care around a hot housing.
Antenna connection reference
Use the transmitter connection and operating band below to check antenna compatibility for your setup.
| Transmitter RF connector | SMA |
|---|---|
| Transmitter operating range | 7200–8000 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Confirm the antenna model, connector and included accessories for your order.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 14–28 V input specification and connection polarity.
Installation and connections
Check the 47 × 36 mm housing, 41.5 × 30.5 mm mounting pattern and cable connector. Keep space for fan airflow.
