AKK TX3000AC FPV Video Transmitter
AKK TX3000AC analog video transmitter with 80 channels across 4990–5945 MHz, up to 3 W output and a 14–28 V input supply.
- Frequency range
- 4990–5945 MHz
- Channel count
- 80 channels
- Output power
- 3 W
- Input voltage
- 14–28 V
A closer look at AKK TX3000AC

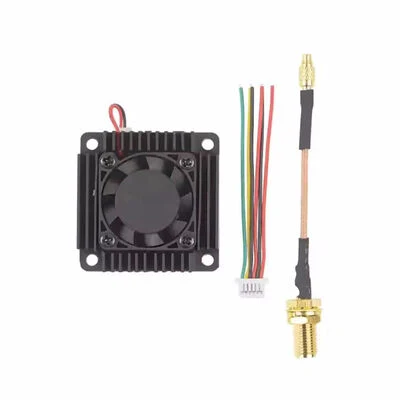

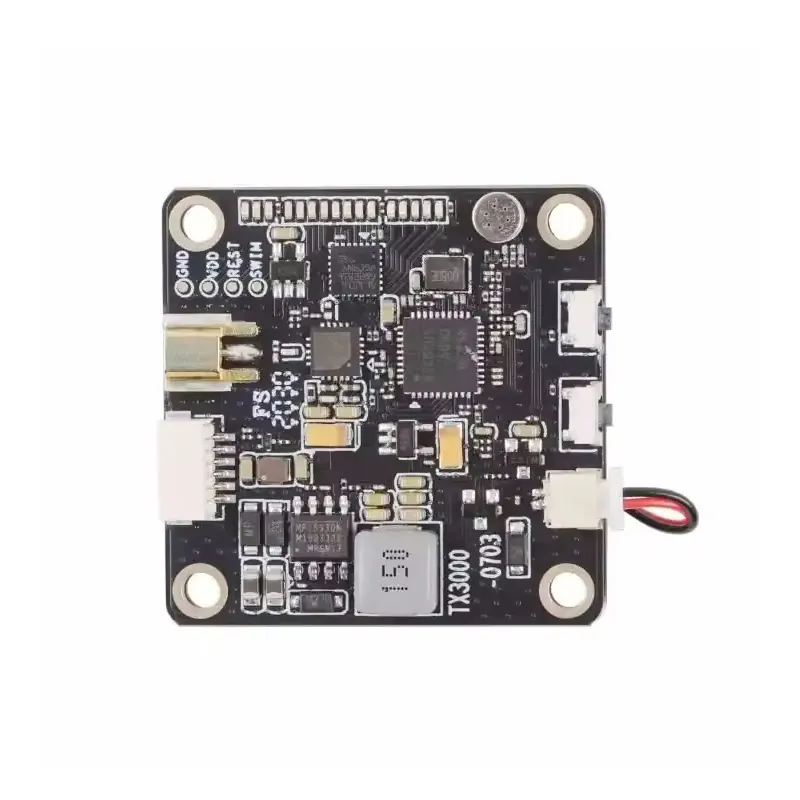

Views include: Cooling fan, housing and connectors; Rear circuit board and cable connections.
- Built-in cooling fan
- MMCX antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AKK TX3000AC specifications
The key electrical specifications, together in one place.
| Product | AKK TX3000AC |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4990–5945 MHz |
| Channel count | 80 channels |
| Output power | 3 W |
| Input voltage | 14–28 V |
| Control protocol | SmartAudio |
| Antenna connector | MMCX |
| Cable connector | JST 6-pin |
| Dimensions (width × depth) | 36 × 36 mm |
| Mounting hole spacing | 30.5 × 30.5 mm |
| Weight (excluding antenna) | 23 g |
| Camera supply | 5 V; under 500 mA |
| Microphone | Not supported |
| Selectable output levels | 25 / 250 / 500 / 1000 / 2000 / 3000 mW |
80-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| b | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| r | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| P | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| O | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| X | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

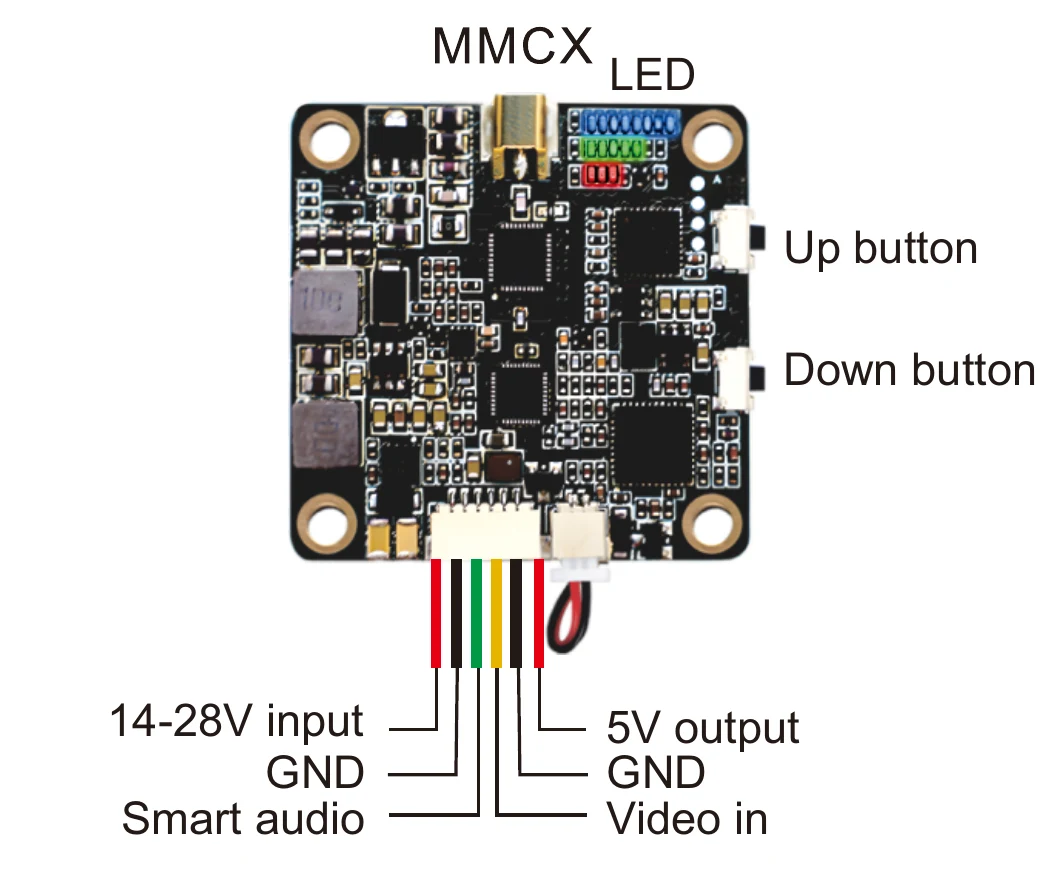

Connection reference
- DC input
- 14–28 V input
- GND
- Ground (two connections)
- SmartAudio
- Flight controller control connection
- 5 V output
- Camera supply — under 500 mA; confirm the camera voltage rating
- Video in
- Analog video input
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Select the setting
Use the Up button to switch among channel, band and power. Use the Down button to change the selected setting.
Read the channel and band
Eight blue LEDs indicate the channel. Five green LEDs encode ten bands; see the matching manual for the band indicator patterns.
Read the output level
Three red LEDs encode six output levels: 25, 250, 500, 1000, 2000 and 3000 mW.
SmartAudio and PIT mode
SmartAudio supports OSD configuration and PIT mode. The power amplifier starts after a 5-second delay.
Connect the antenna before powering on. Keep the cooling fan fitted and provide airflow. The housing can become hot.
Antenna connection reference
The product photograph shows the RF pigtail. Select a compatible antenna for your operating band.
Reference configuration only. Confirm the antenna model, frequency coverage, connector and supply scope for your order.
| Transmitter RF connector | MMCX |
|---|---|
| Transmitter operating range | 4990–5945 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 14–28 V input specification and connection polarity.
Installation and connections
Check the 36 × 36 mm housing, 30.5 × 30.5 mm mounting pattern and cable. Keep airflow around the fan.
