AKK TX5000AC FPV Video Transmitter
AKK TX5000AC V2 analog video transmitter with 96 channels across 4900–6060 MHz, up to 5 W output and a 14.6–28 V input supply.
- Frequency range
- 4900–6060 MHz
- Channel count
- 96 channels
- Output power
- 5 W
- Input voltage
- 14.6–28 V
A closer look at AKK TX5000AC V2

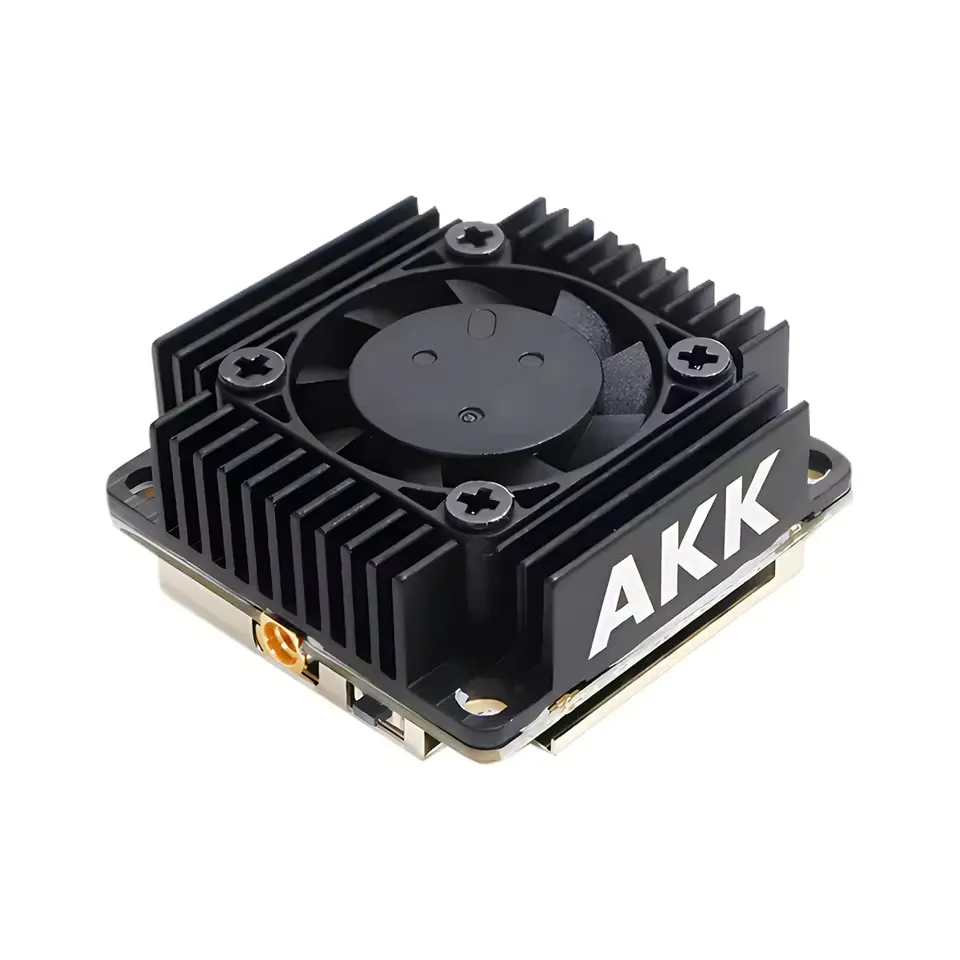

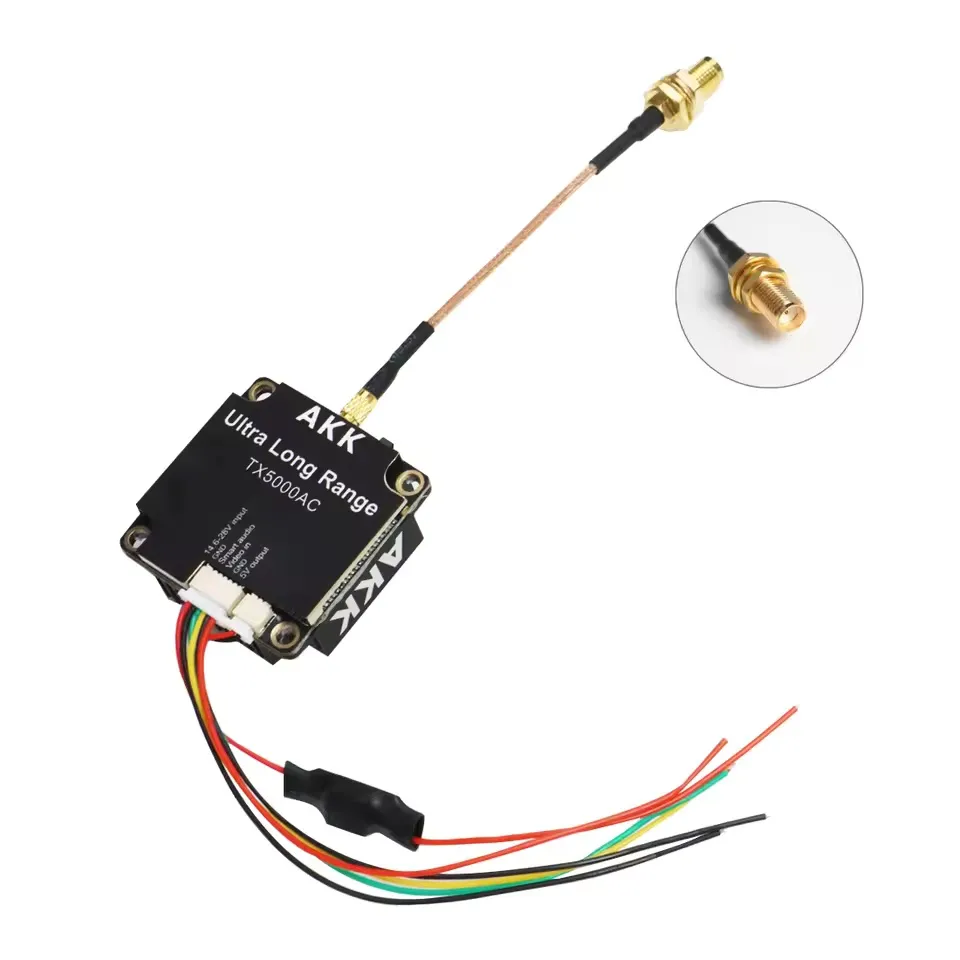

Views include: Cooling fan and housing; Alternative housing view; Underside, cable and antenna pigtail.
- Built-in cooling fan
- MMCX antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AKK TX5000AC V2 specifications
The key electrical specifications, together in one place.
| Product | AKK TX5000AC V2 |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4900–6060 MHz |
| Channel count | 96 channels |
| Output power | 5 W |
| Input voltage | 14.6–28 V |
| Control protocol | SmartAudio |
| Antenna connector | MMCX |
| Cable connector | JST 6-pin |
| Dimensions (width × depth) | 36 × 36 mm |
| Mounting hole spacing | 30.5 × 30.5 mm |
| Weight (excluding antenna) | 25 g |
| Camera supply | 5 V; under 500 mA |
| Microphone | Not supported |
| Selectable output levels | 25 / 200 / 500 / 1000 / 3000 / 5000 mW |
96-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| b | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| E | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| F | 5129 | 5159 | 5189 | 5219 | 5249 | 5279 | 5309 | 5339 |
| r | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| P | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| L | 4900 | 4940 | 4921 | 4958 | 4995 | 5032 | 5069 | 5099 |
| U | 5960 | 5980 | 6000 | 6020 | 6030 | 6040 | 6050 | 6060 |
| O | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| H | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| T | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| n | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

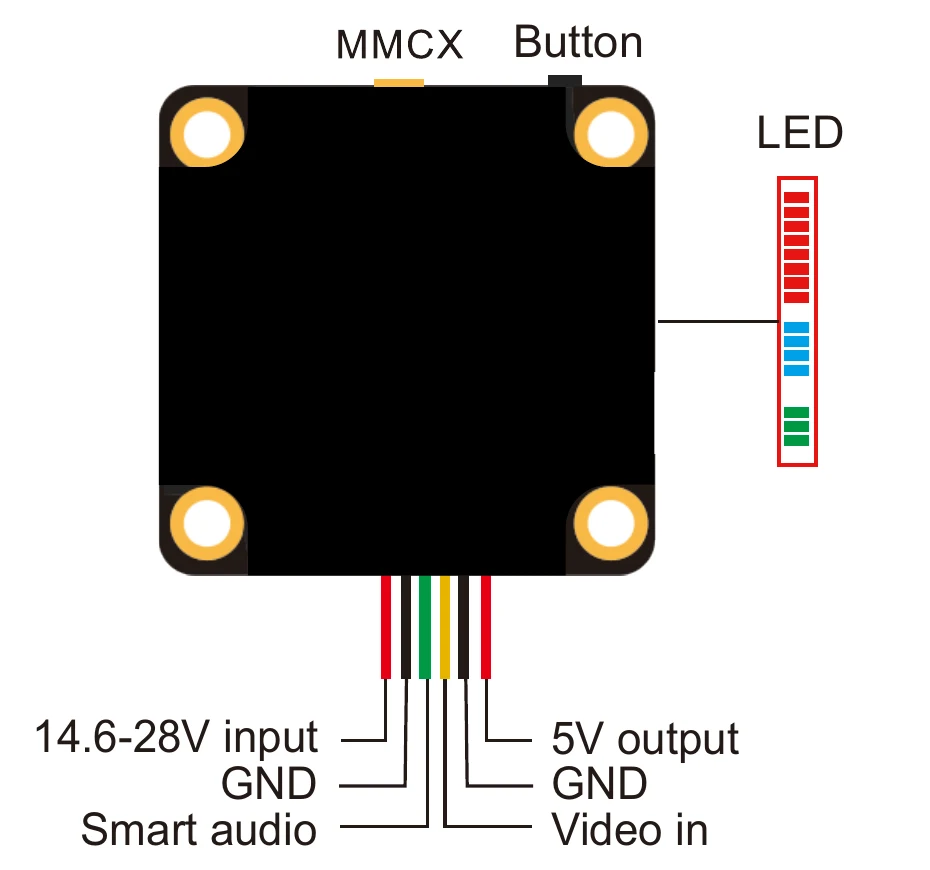

Connection reference
- DC input
- 14.6–28 V input
- GND
- Ground (two connections)
- SmartAudio
- Flight controller control connection
- 5 V output
- Camera supply — under 500 mA; confirm the camera voltage rating
- Video in
- Analog video input
These connection labels and LED settings apply to TX5000AC V2.
Button operation
Channel indicators
Eight red LEDs indicate the selected channel.
Band indicators
Four blue LEDs encode the selected band. The V2 manual lists 12 bands; use its indicator diagram to identify the selection.
Power indicators
Three green LEDs encode six output levels: 25, 200, 500, 1000, 3000 and 5000 mW.
SmartAudio and PIT mode
SmartAudio supports OSD configuration and PIT mode. The manual specifies a 5-second delay before the power amplifier turns on.
Connect the antenna before powering on. Keep the cooling fan fitted and allow airflow. The housing can become hot.
Antenna connection reference
The product reference shows the RF pigtail used for the antenna connection. Select a compatible antenna for your operating band.
Confirm pigtail connectors and antenna availability for your order.
| Transmitter RF connector | MMCX |
|---|---|
| Transmitter operating range | 4900–6060 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 14.6–28 V input specification and connection polarity.
Installation and connections
Check the 36 × 36 mm housing, 30.5 × 30.5 mm mounting pattern and JST cable. Keep airflow around the fan.
