AKK TX8000AC FPV Video Transmitter
AKK TX8000AC analog video transmitter with 96 channels across 4900–6060 MHz, up to 8 W output and a 14.6–28 V input supply.
- Frequency range
- 4900–6060 MHz
- Channel count
- 96 channels
- Output power
- 8 W
- Input voltage
- 14.6–28 V
A closer look at AKK TX8000AC

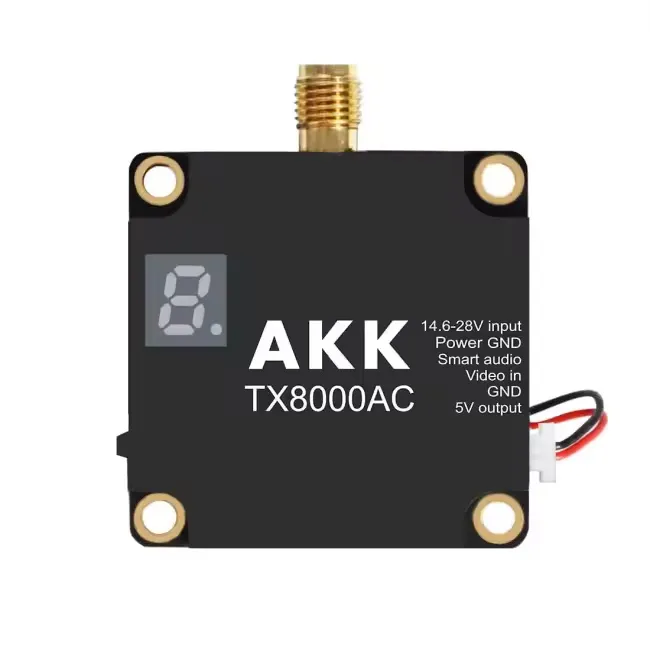

Views include: Cooling fan, housing and connectors; Model label and connections.
- Built-in cooling fan
- SMA antenna connection
Accessories shown are for reference. Confirm the supplied configuration when enquiring.
AKK TX8000AC specifications
The key electrical specifications, together in one place.
| Product | AKK TX8000AC |
|---|---|
| Type | Analog video transmitter |
| Frequency range | 4900–6060 MHz |
| Channel count | 96 channels |
| Output power | 8 W |
| Input voltage | 14.6–28 V |
| Control protocol | SmartAudio |
| Antenna connector | SMA |
| Cable connector | JST 6-pin |
| Dimensions (width × depth) | 36 × 36 mm |
| Mounting hole spacing | 30.5 × 30.5 mm |
| Weight (excluding antenna) | 25 g |
| Camera supply | 5 V; under 500 mA |
| Microphone | Not supported |
| Selectable output levels | 25 / 1000 / 3000 / 5000 / 8000 mW |
96-channel frequency table
Frequencies are in MHz. Match the exact frequency with your receiver; band labels can differ between models.
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
|---|---|---|---|---|---|---|---|---|
| A | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| b | 5362 | 5399 | 5436 | 5473 | 5510 | 5547 | 5584 | 5621 |
| E | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| F | 5129 | 5159 | 5189 | 5219 | 5249 | 5279 | 5309 | 5339 |
| r | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
| P | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| L | 4900 | 4940 | 4921 | 4958 | 4995 | 5032 | 5069 | 5099 |
| U | 5960 | 5980 | 6000 | 6020 | 6030 | 6040 | 6050 | 6060 |
| O | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| H | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| T | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| n | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Compare exact channel frequencies before pairing equipment. Band names alone do not confirm compatibility.
Connect. Configure. Check.
Check the connection labels and the matching manual before installation.

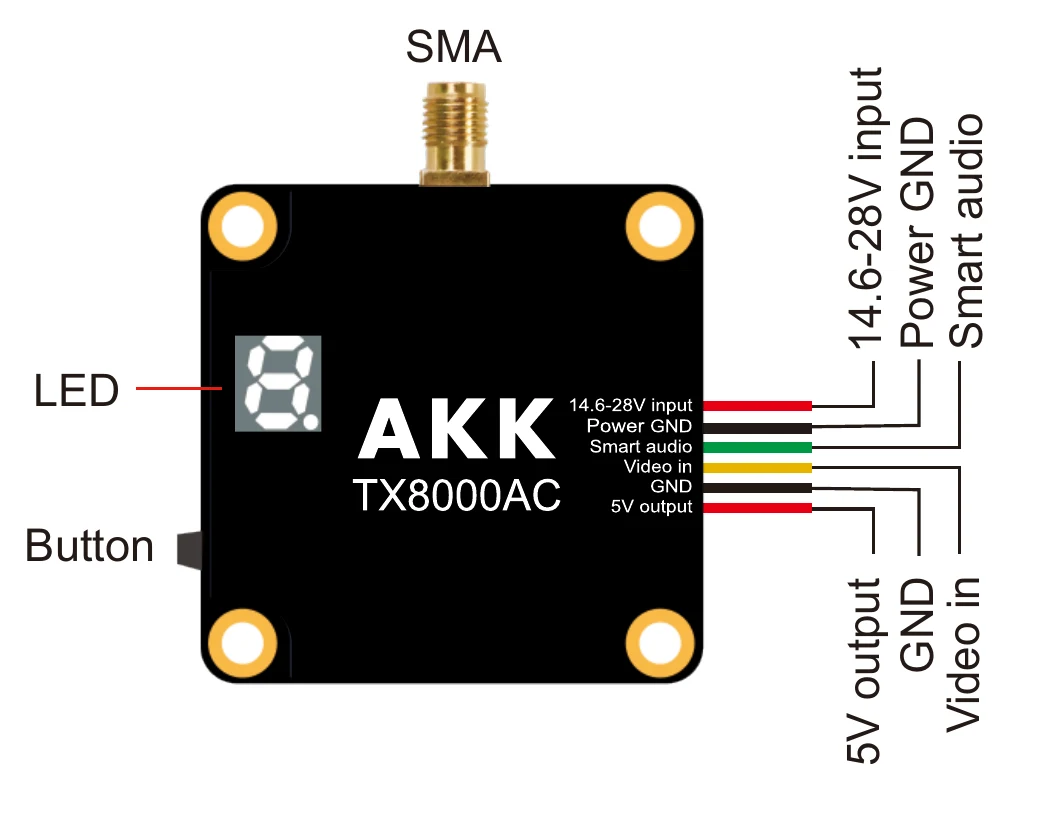

Connection reference
- DC input
- 14.6–28 V input
- GND
- Ground (two connections)
- SmartAudio
- Flight controller control connection
- 5 V output
- Camera supply — under 500 mA; confirm the camera voltage rating
- Video in
- Analog video input
Identify the connections from the diagram and labels below. Check polarity before connecting power.
Button operation
Choose a channel
Short-press the button to change among eight channels.
Choose a band
Hold for 2 seconds until a band letter flashes, then short-press to select among 12 bands.
Set output power
Hold for 3 seconds until a number flashes quickly, then short-press to select one of five output levels.
Read the display
After setting, the band letter, channel number and power level flash twice. SmartAudio supports OSD configuration and PIT mode. The power amplifier starts after a 3-second delay.
Connect the antenna before powering on. Keep the cooling fan fitted and provide airflow. The housing can become hot.
Antenna connection reference
Use the transmitter connection and operating band below to check antenna compatibility for your setup.
| Transmitter RF connector | SMA |
|---|---|
| Transmitter operating range | 4900–6060 MHz |
Connection and selection
- Match the operating frequency
- Select an antenna that covers your selected operating frequency. The range above describes the transmitter, not an antenna bandwidth specification.
Confirm the antenna model, connector and included accessories for your order.
Check your setup before ordering.
Check frequency matching, the power supply and installation connections before ordering.
Channel matching
Compare the channel table with your receiver before pairing.
Power supply
Confirm the 14.6–28 V input specification and connection polarity.
Installation and connections
Check the 36 × 36 mm housing, 30.5 × 30.5 mm mounting pattern and cable. Keep airflow around the fan.
